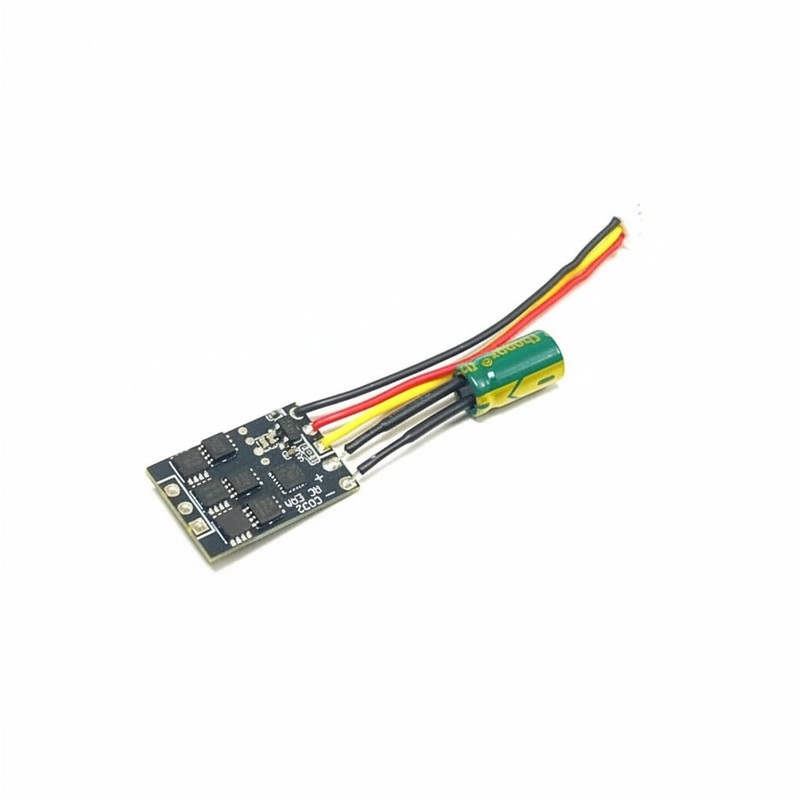

RC ERA UH-1 C032 ESC Set OEM Electronic Speed Controller

Restore smooth throttle and reliable power delivery on your C032 with this OEM ESC (Electronic Speed Controller) set. Factory-matched firmware and wiring ensure clean installs and consistent performance with the C032 power system.

Key Features

• OEM-spec ESC tuned for the RC ERA C032 powertrain (2S/7.4V system)

• Stable throttle response with over-current/thermal protections

• Pre-wired lead & connector (as pictured) for fast plug-and-play replacement

• Lightweight design to maintain CG and flight time

Compatibility

Purpose-built for the C032 platform. Fully compatible with:
RC ERA UH-1 Huey 6CH RC Helicopter with Smart Positioning & 3D Stunt Flight

Not universalrecommended only for the C032 series.

Whats in the Pack

• 1 ESC module with pre-wired connectorsee product photos

• Mounting tape/screws are included only if shown; otherwise reuse originals.

When to Replace

• Motor surging, cut-outs, or no-start despite a good battery and motor

• ESC overheating, burnt smell, or visible damage

• Intermittent power loss during hover or punch-outs

Installation & Setup Tips

• Power off & remove the battery before any work

• Match polarity and connectors exactly; keep wires clear of gears/rotor

• Mount with some airflow and secure so it cant rub on the frame

• After install, do a low-hover test; verify throttle is smooth with no resets

• Use only a 2S LiPo in good condition; avoid over-discharge

More C032 Spare Parts

Need main motor, tail motor, blades, gears, skids, or linkages?
Explore the full range: C032 Spare Parts Collection
