| Parameter | Value |
|---|---|
| Model Type | High-Torque Digital Servo |
| Torque Rating | 25 kgcm @ 7.4V |
| Operating Voltage | 4.8V 7.4V |
| Gear Type | Full Metal Gear |
| Motor Type | High-Performance Digital Coreless Motor / HPS type |
| Shaft Type | Single Shaft |
| Speed | ~0.20 sec/60 Rotation Speed at 7.4V |
| Control Signal | PWM (50330 Hz compatible) |
| Angle Range | 180 standard (270 optional depending on version) |
| IP | IP67 Waterproof |
| Connector Type | Standard 3-pin (Signal + VCC + GND) |
| Case Material | Metal & Heat-Dissipating Aluminum Alloy |
| Dimensions | Standard RC Servo Size (approx. 40 20 40.5 mm) |
| Applications | Robotics, RC cars, RC planes, industrial mechanisms |
Sale!

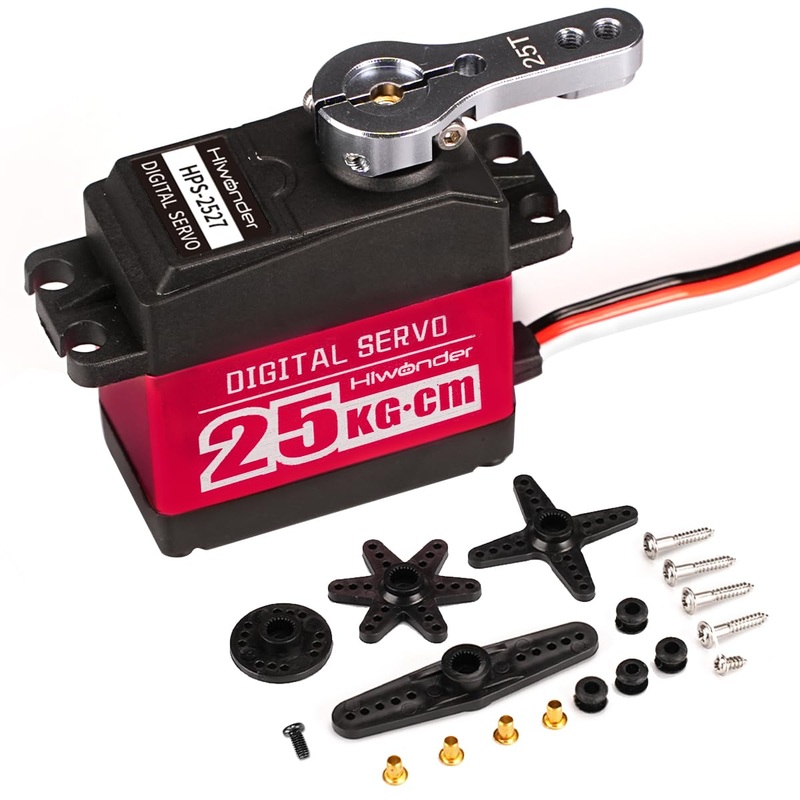

RC HPS Metal Gear 25kg High Torque Digital Servo Single Shaft
Original price was: $35.00.$21.00Current price is: $21.00.
