Overview

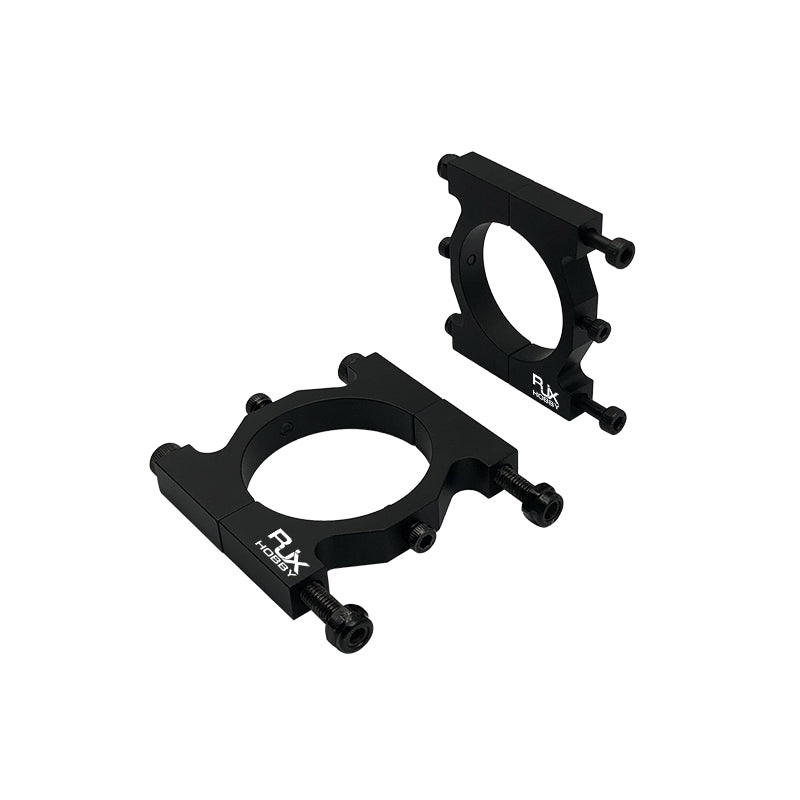

RJX aluminum alloy tube clamp fixture clip / pipe bracket for UAV drone spare parts. Designed for mounting to round pipes/tubes in multiple diameter options from 16 mm to 40 mm.
Key Features
- Aluminum alloy tube clamp / pipe bracket design
- Multiple applicable pipe diameter options: 16 mm / 20 mm / 22 mm / 25 mm / 30 mm / 35 mm / 40 mm
- Weights are specified without screws
Specifications
| Applicable Pipe Diameter | Weight (without screws) | Height | Width | Thickness | Pitch |
|---|---|---|---|---|---|
| 16mm | 3.1g | 20mm | 27mm | 5mm | 22mm |
| 20mm | 4.2g | 24mm | 32mm | 5mm | 26mm |
| 22mm | 5.1g | 26mm | 33.5mm | 5.5mm | 28mm |
| 25mm | 10.2g | 30mm | 39mm | 7mm | 32mm |
| 30mm | 13.7g | 36mm | 45mm | 7mm | 38mm |
| 35mm | 22.3g | 43mm | 51mm | 8mm | 43mm |
| 40mm | 22.51g | 48mm | 56mm | 8mm | 48mm |
Whats Included
- 1pcs x Tube Clamp
Applications
- UAV drone frame pipe/tube mounting and general drone spare parts replacement
For compatibility questions (pipe diameter selection, fitment, or ordering support), contact [email protected] or visit https://rcdrone.top/.
