Overview

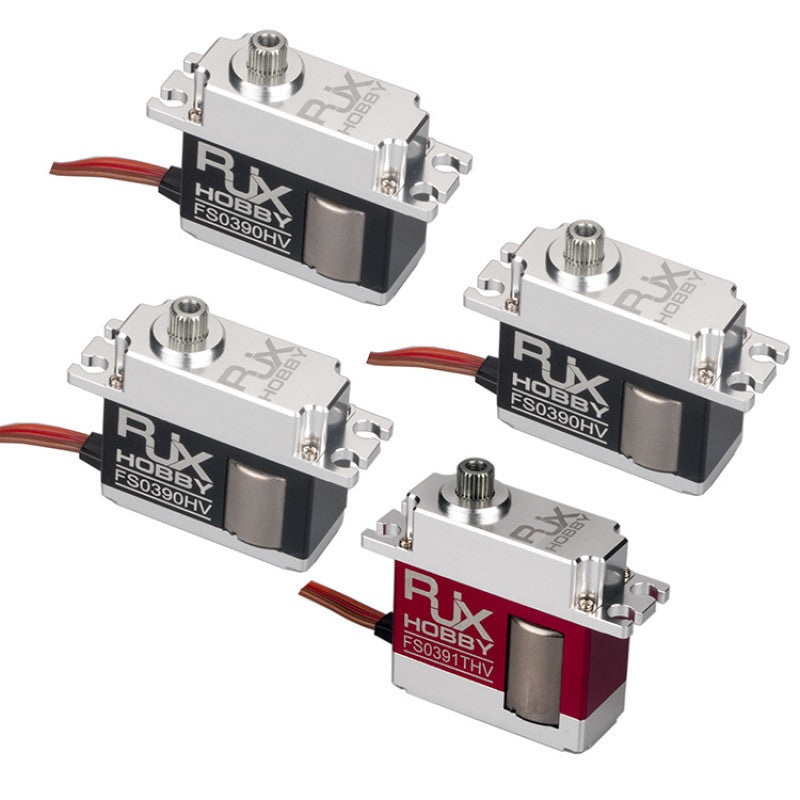

RJX servo combo set: FS0390HV Mini Servo (15W x 36L x 31.5H mm) x 3 pcs + FS0391THV RJX MiDi Tail Servo (15W x 36L x 35.5H mm) x 1 pc. Both servos support 7.4V-8.4V operation voltage and use metal gears with a coreless motor.
Key Features
- High-voltage operation range: 7.4V-8.4V (both models)
- Metal gear drivetrain (both models)
- Coreless motor (both models)
- Control frequency support: 1520s/333hz (FS0390HV) and 760s/333hz (FS0391THV)
Specifications
| Parameter | FS0390HV Mini Servo | FS0391THV MiDi Tail Servo |
|---|---|---|
| Operation Voltage | 7.4V-8.4V | 7.4V-8.4V |
| Weight | 45g | 50g |
| Torque @7.4V | 11.2kg/cm | 9.6kg/cm |
| Torque @8.4V | 12.3kg/cm | 10.6kg/cm |
| Speed @8.4V | 0.053 sec/60 | 0.03 sec/60 |
| Speed @7.4V | 0.065 sec/60 | 0.032 sec/60 |
| Dimension | 15W x 36L x 31.5H mm | 15W x 36L x 35.5H mm |
| Frequency | 1520s/333hz | 760s/333hz |
| Gear Type | Metal gear | Metal gear |
| Motor Type | Coreless motor | Coreless motor |
Whats Included
- RJX FS0390HV Mini Servo x 3 pcs
- RJX FS0391THV MiDi Tail Servo x 1 pc
For product compatibility questions or after-sales support, contact [email protected] or visit https://rcdrone.top/.
