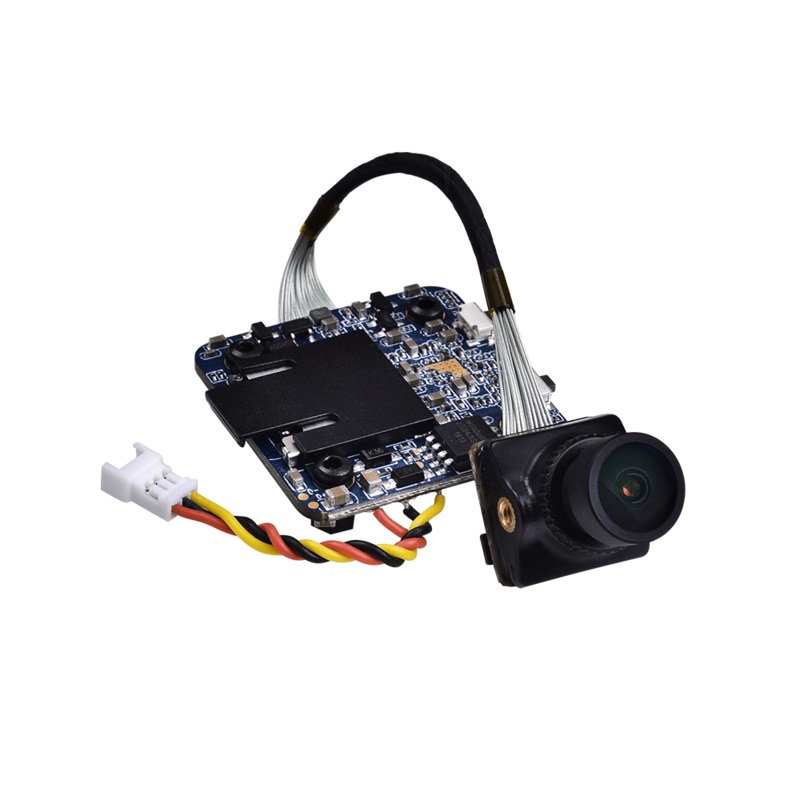

RunCam Split 3 Nano

Are you looking to buy RunCam Split 3 Nano FPV Camera in Australia?

The RunCam Split 3 Nano gives you 1080p/60fps HD recording while also utilizing a sharp WDR FPV camera. The Split 3 Nano fits 14x14mm nano-sized camera mounts but comes with a 19×19 adapter. The Split 3 features new updates to the TV-OUT clarity, by reducing the amount of interference and ripple in the video feed. It also has a stronger flexible ribbon cable that aims to reduce the chance of being damaged.

The modular camera system supports replacement lens’ that can be manually focused.

Features

• 1080P/60fps HD recording & WDR FPV camera
• Super WDR FPV image with low latency (40ms)
• Power-off protection for video files
• Simultaneous HD recording and FPV output
• Reduced TV-OUT interference
• Strengthened ribbon cable
• Replaceable lens
• Wide voltage range (5-20v)

Specifications

Model	RunCam Split 3 Micro	RunCam Split 3 Nano
Field of View(FOV)	Recording FOV 165(FPV FOV: 165 @16:9, 130 @4:3)
Video Resolution	1080@60fps/1080@50fps/1080@30fps/720@60fps
Video File Format	MOV
Image Resolution	2 MP
TV Mode	NTSC (720*480)/PAL (720*576) Switchable
Interface	JST 1.25mm / UART
Max Micro SD Card Supported	64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
Hole Distance of Installation	20*20mm
PCB Size	29*29mm
Lens Module Size	19*19mm	14*14mm
Lens Specs	M12	M8
Power Input	DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)
Working Current	650mA @5V / 270mA @12V
Weight	14g	10.5g

Includes

• 1x Camera
• 1x 14 to 19 bracket
• 1x SD Card Protector
• 1x 3pin 1.25 JST silicone cable
• 1x Set of Screws
• 1x Manual

User Manual

View the user manual for theRunCamSplit 3 Nano here
