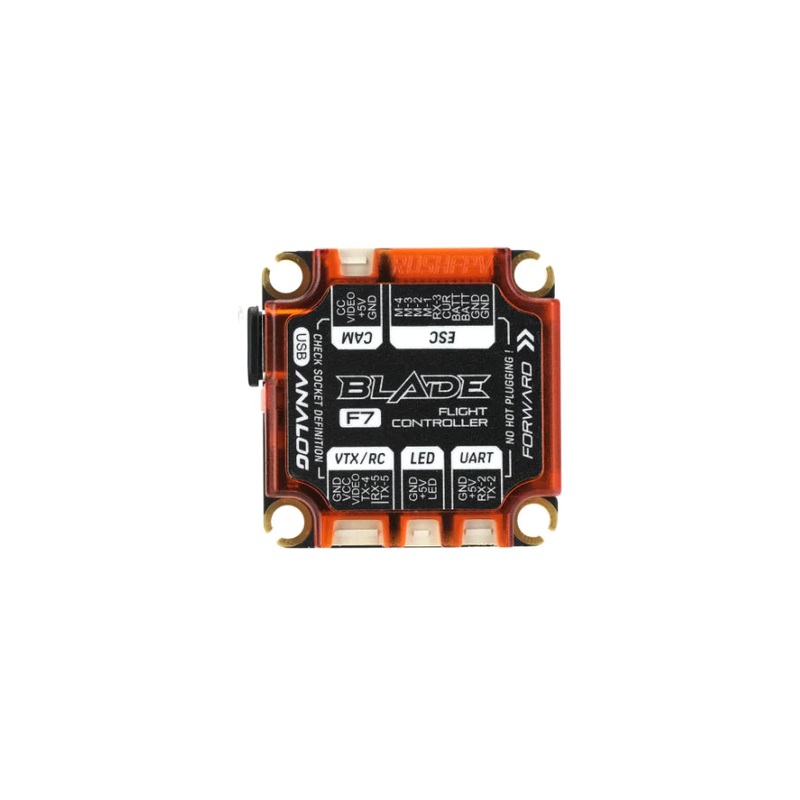

RUSHFPV Rush Blade F722 V2 Flight Controller for Analogue

Features

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• ICM42688P gyroscope, independent low-noise power supply.
• Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port, 1 camera control port.

• High power synchronous rectifier BEC, supports up to 36V input and provides stable 5V 3A output.
• Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.

• Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
• PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings.

Specifications

• MCU STM32F722RET6
• GYRO ICM42688P
• OSD AT7456E CVBS OSD
• BLACKBOX 16MB FLASH
• BEC INPUT 7-36V / 3-6S LIPO
• OUTPUT 5V 3A
• PORT 8PWM 5UART 1I2C
• ADC V-BATT / CURR-ESC
• LED
• BARO
• WS2812 LED STRIP
• BMP280
• SIZE 36.5mm*37mm*5.2mm
• MOUNTING HOLES 30.5*30.5mm
• TARGET RUSH_BLADE_F7 WEIGHT 11g(without cable

Includes

• 1 x RUSH BLADE F722 30×30 Flight Controller For Analog
• 1x Accesories Kit
