Savox SAV-SG-SH0257MG Gear Set For SH-0257MG Servo

Savox SAV-SG-SH0257MG Gear Set For SH-0257MG Servo

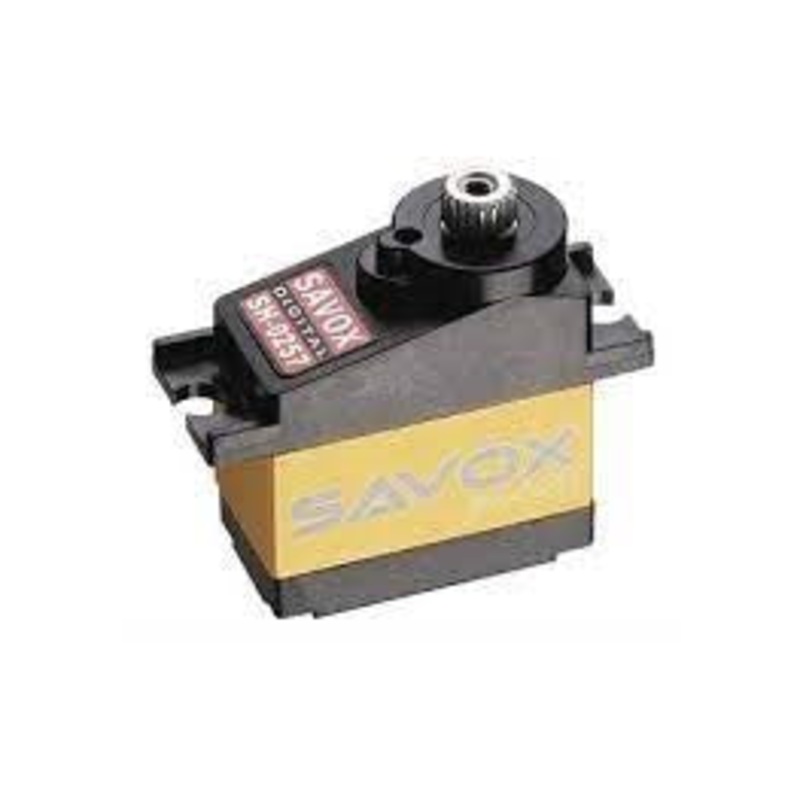

The Savox SH-0257MG metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.

Features:

• Metal gear train ensures durability and longevity.
• Aluminum middle case allows for cooler operating temperatures.
• Ideal for small planes, and 450 size helicopters.

Specifications:

• Torque @4.8v – 1.8kg/25.0oz-in
• Torque @6v – 2.2kg/30.6oz-in
• Speed @4.8v – 0.13 sec/60 deg
• Speed @6v – 0.09 sec/60 deg
• Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
• Weight: 14.0g
• Operating Temperature: 14 – 122F (-10 – 50C)
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 1BB
• Operating Travel: 90 (1000 2000 second)
• Neutral Position: 1500 second
• Pulse Width Range: 700 2300 second
• Maximum Travel: Appx 150 (700 2300 second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
