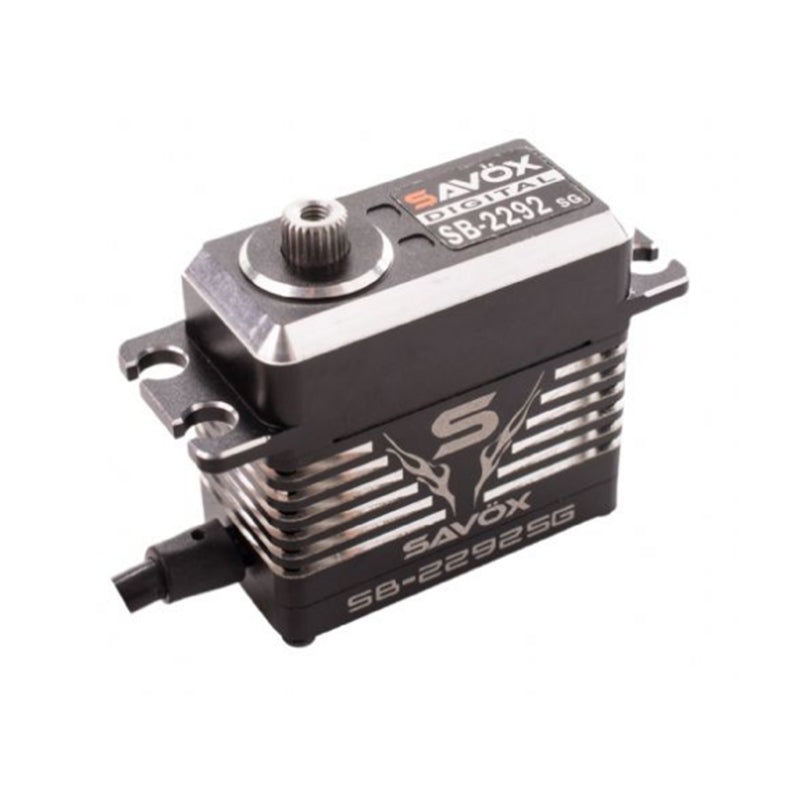

SAVOX SB-2292SG 0.07 S/31KG

SAVOX SB-2292SG 31KG Full-Metal High-Voltage High-Torque Brushless Digital Servo

Features

• Full aluminum housing
• 3 precision ball bearings
• Unique steel gears

Specifications

• Torque:
  • @6V: 22.0kg/305.0oz-in
  • @7.4V: 31.0kg/430.5oz-in
  • @8.4V: 45.0kg/624.9oz-in
• Speed:
  • @6V: 0.085sec/60
  • @7.4V: 0.07sec/60
  • @8.4V: 0.055sec/60
• Dimensions (LWH): 40.3 20.2 38.7 mm
• Weight: 81g

Technical Details

• Operating Temperature: 14 122F (-10 50C)
• Running Current (No Load): [email protected], [email protected]
• Stall Current (Locked): [email protected], [email protected]
• Idle Current: [email protected], [email protected]
• Wire Length: 3005mm
• Output Gear Spline: 25 teeth
• Bearing: 2BB
• Operating Stroke: 100 (10002000s)
• Neutral Position: 1500s
• Pulse Width Range: 8002200s
• Maximum Stroke: Appx 130 (9002100s)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
