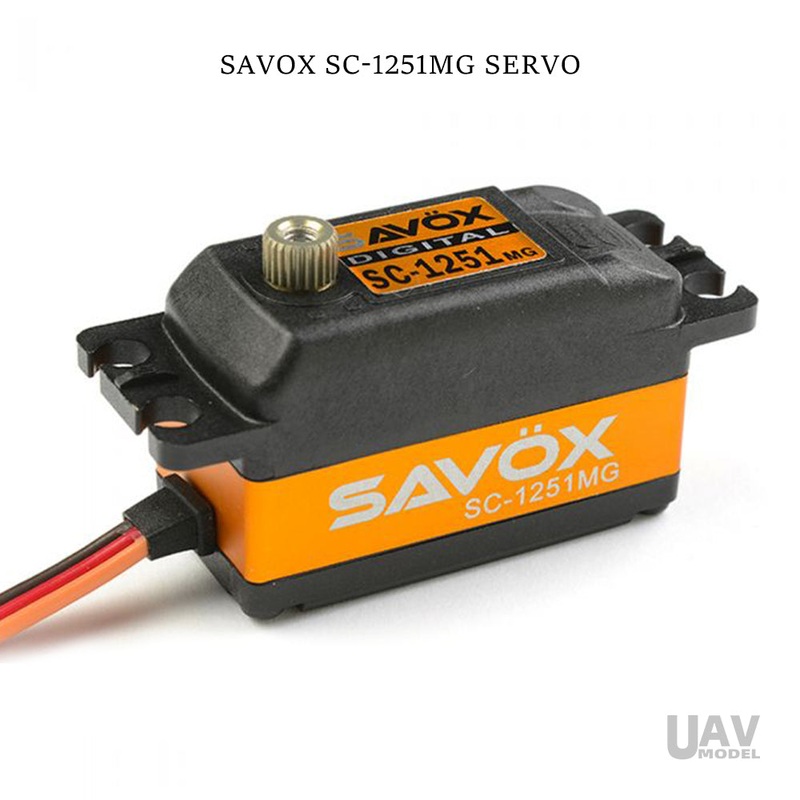

SC-1251MG Plus is a high-speed, low-profile servo system that combines cutting-edge technology with a metal gear train, making it an ideal choice in terms of space or weight.
The “Plus” series servo system features soft-start and Sanwa SSR compatibility.
Features
- Metal gear train ensures durability in harsh environments.
- Aluminum housing provides a lower operating temperature.
Specifications
- Torque:
- 4.8V: 7.0kg/97.2oz
- 6V: 9.0kg/125.0oz-in
- Speed:
- 4.8V: 0.10sec/60
- 6V: 0.09sec/60
- Dimensions (LWH): 40.8 20.2 25.4 mm
- Weight: 44.5g
Technical Details
- Operating Temperature: 14 122F (-10 50C)
- Running Current (No Load): [email protected], [email protected]
- Stall Current (Locked): [email protected], [email protected]
- Idle Current: [email protected], [email protected]
- Wire Length: 3005mm
- Output Gear Spline: 25 teeth
- Bearing: 2BB
- Operating Stroke: 90 (10002000s)
- Neutral Position: 1500s
- Pulse Width Range: 9502050s
- Maximum Stroke: Appx 140 (7002300s)
- Refresh Rate: 240Hz
- Motor Type: Brushed
