Product Description
We introduce the fifth generation of Scorpion’s renowned and award winning “HK – Series” motors. The Scorpion “HK5 – Series”
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.

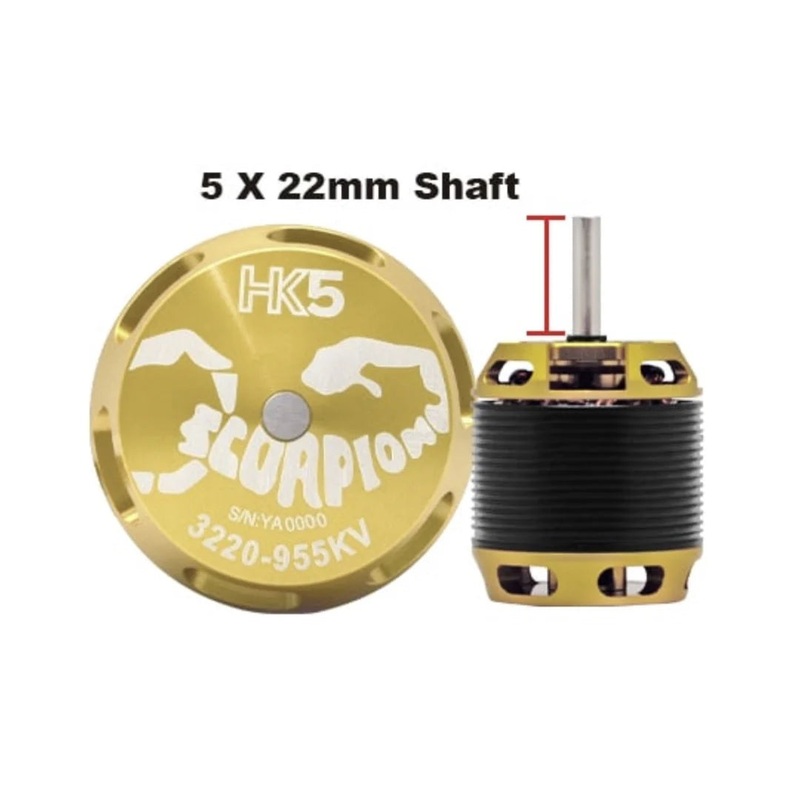

The HK5-3220-955kv is designed primarily for the SAB RAW 420C helicopter based on the guidelines set forth by SAB Factory directly.
Specifications :
Motor Kv 955KV RPM/VoltWeight 189g Grams ( 6.67oz)Motor Body Dimensions 40.95mm x 45.98mm (1.61″ x 1.81″)External Shaft Dimensions 4.98mm x 22mm (0.235″ x 1.26″)Continuous Current 65 AmpsContinuous Power 1500 WattsPeak Current 90A (2 seconds)Peak Power 2000 Watts (2 seconds)Max Lipo Cell* 6sStator Diameter 32 mm (1.57 in)Stator Thickness 20 mm (0.79 in)No. of Stator Arms 12No. of Stator Poles 10Motor Wind 5+6 Turn DeltaMotor Wire 1.05mm
*Higher Cell Count possible with appropriate gear ratio adjustment
Included in the Box
1 x HK5-4020 BLDC Motor3 x Female 4mm Connectors3 x Heat Shrink1 x Hardware / Accessory Pack
