Overview

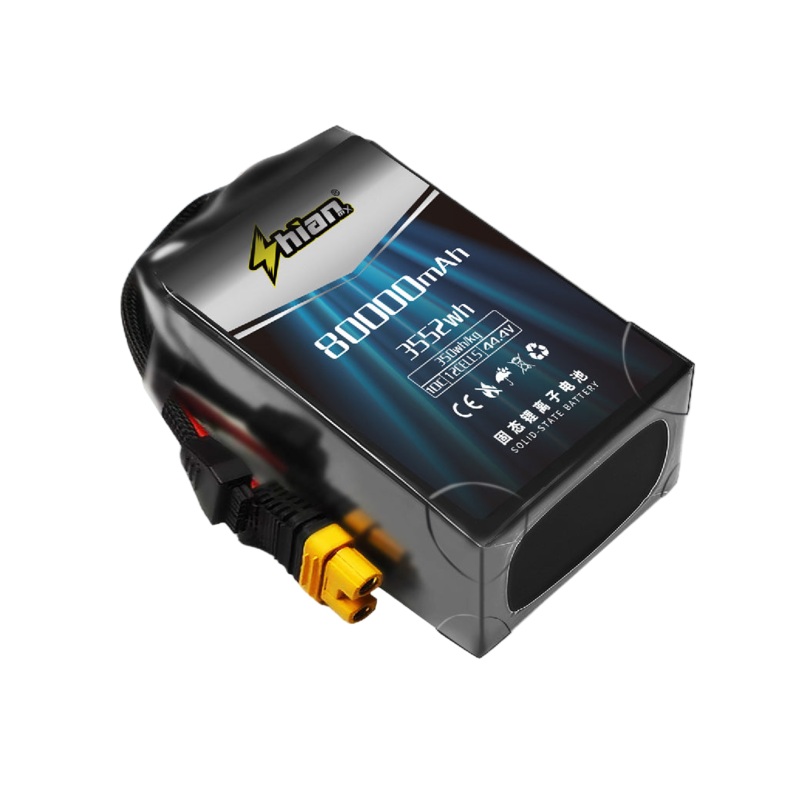

The ShiAnMx 80000mAh 10C Solid-State Lithium Battery is an ultra-high-capacity power system designed for heavy-lift UAV drones requiring extreme endurance, high power output, and superior operational reliability. Built with advanced 350Wh/kg solid-state cell technology, this battery delivers significantly higher energy density, longer flight duration, and enhanced thermal and structural stability compared with traditional lithium packs.
Engineered for industrial-grade UAV missions, the battery features a reinforced casing, optimized internal structure, and large energy output for long-range mapping, logistics delivery, VTOL platforms, security patrol drones, and high-payload multirotors. Its outstanding capacity and solid-state chemistry make it one of the most capable high-density UAV batteries available today.
Key Features
-
80000mAh extreme capacity for maximum UAV flight endurance
-
350Wh/kg high density solid-state chemistry for superior efficiency and safety
-
10C discharge capabilities to support high-power propulsion systems
-
Reinforced shell design for industrial environments and long-duration missions
-
Stable power delivery across intensive, high-load, and long-range flight profiles
-
Ideal for heavy-lift multirotors, VTOL aircraft, fixed-wing UAVs, logistics drones, mapping platforms, and surveillance missions
Specifications
6S 80000mAh (22.2V)
| Parameter | Value |
|---|---|
| Capacity | 80000mAh |
| Voltage | 6S 22.2V |
| Discharge Rate | 10C |
| Battery Energy | 1776Wh |
| Charge Cut-off Voltage | 25.5V |
| Discharge Cut-off Voltage | 16.2V |
| Weight | 5202g (15g) |
| Size (TWL) | 65 151 289 mm |
12S 80000mAh (44.4V)
| Parameter | Value |
|---|---|
| Capacity | 80000mAh |
| Voltage | 12S 44.4V |
| Discharge Rate | 10C |
| Battery Energy | 3552Wh |
| Charge Cut-off Voltage | 51V |
| Discharge Cut-off Voltage | 32.4V |
| Weight | 10404g (15g) |
| Size (TWL) | 126 151 289 mm |
14S 80000mAh (51.8V)
| Parameter | Value |
|---|---|
| Capacity | 80000mAh |
| Voltage | 14S 51.8V |
| Discharge Rate | 10C |
| Battery Energy | 4144Wh |
| Charge Cut-off Voltage | 59.5V |
| Discharge Cut-off Voltage | 37.8V |
| Weight | 12138g (15g) |
| Size (TWL) | 148 151 289 mm |
Applications
The ShiAnMx 80000mAh solid-state battery is designed for:
-
Heavy-lift multirotor UAV platforms
-
VTOL and long-range fixed-wing drones
-
Mapping and surveying aircraft
-
Cargo and logistics UAV delivery systems
-
Border patrol and long-duration surveillance missions
-
High-payload industrial drone operations
The high energy density and large capacity enable significantly extended endurance and stable power output for the most demanding UAV applications.
