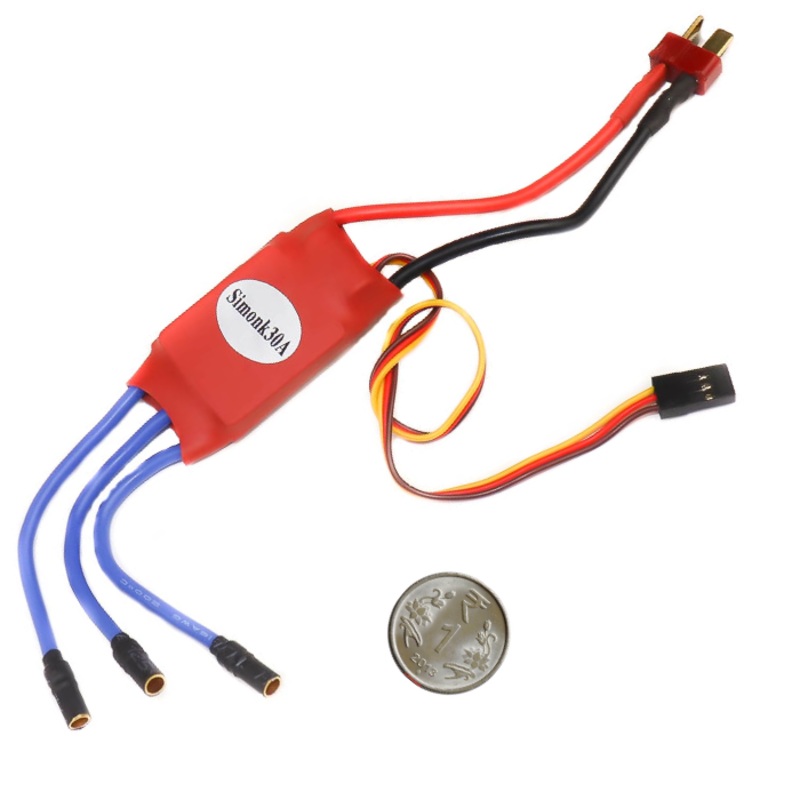

SimonK Red 30A BLDC ESC Electronic Speed Controller with Connectors

SimonK Red 30A BLDC ESC Electronic Speed Controller with Connectors

The Simonk 30A BLDC ESC for drones is an Electronic Speed Controller (ESC) that is used to drive brushless DC drone motors and is capable of supplying current up to 30A. The Simonk 30A BLDC ESC controller is made for quadcopters and multicopters to provide faster and better motor speed control.

This high-speed ESC 30A solution for racing drones features a battery eliminator circuit (BEC) that provides 5V and 2A to the receiver or flight controller, so an extra battery is not needed to power them. These electronic speed controllers with fast throttle response are best used with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.

For users looking for reliable Simonk 30A ESC connection support, the ESC comes with clearly marked power, signal, and motor wires, making installation easier for DIY drone and RC aircraft projects.

Best Price for Simonk Red Esc 30A for Quadcopter Online

The Simonk Red ESC 30A for Quadcopter starts at just 299*, offering incredible value for drone enthusiasts and hobbyists. Prices may vary depending on ongoing offers and specific vendor promotions, but we ensure consistently high quality that surpasses many other options in the market. Designed for reliability and smooth performance, this Simonk 30A ESC provides stable power to your quadcopter motors, making it a top choice for both beginners and advanced drone builders. Future product launches in our store will continue to uphold the same standards of performance and affordability, giving you the best experience every time.

*Price may vary based on offers, stock, and demand.

CONNECTIONS:

• Power:Red – 7.4V to 14.8V
  Black – GND
• Servo:Yellow- Throttle Input
  Red – 5V, 2Amp Out
  Brown – GND
• BLDC Motor:3 Blue Wires – BLDC ESC Connections

Safe Power Function of the Simonk 30A ESC Motors

• High-quality MOSFETs for BLDC motor drive.
• The throttle calibration function of the Simonk ESC motor helps you to adapt to different remote throttle travel differences and improve your throttle response smoothly.
• It provides low voltage protection as well as reverse polarity protection.
• This brushless motor speed controller provides protection on the 5v lines.
• High-performance heat sinkfor better thermal management.

Features:

• Simonk 30A Electronic Speed Controller (Simonk 30A BLDC ESC) with connectors.
• Capable of supplying constant current up to 30A and peak current of 40A for less than 10 seconds.
• Features a battery eliminator circuit (BEC) providing 5V and 2A to the receiver or flight controller.
• Designed for use with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.
• Simonk 30A ESC connection details: Power (Red for 7.4V to 14.8V, Black for GND),
• Servo (Yellow for throttle input, Red for 5V/2A output, Brown for GND), BLDC Motor (3 Blue wires).
• Throttle calibration function for adapting to different remote throttle travel differences and improving throttle response.
• Provides low voltage protection, reverse polarity protection, and protection on the 5V lines.
• Equipped with high-quality MOSFETs for BLDC motor drive.
• Features a high-performance heat sink for better thermal management.

Application:

• BLDC Motors inQuadcopters.
• Multirotor drones.
• RC Planes etc.

Simonk Red Esc 30A for Quadcopter Specifications Comparison:

Feature	Simonk Red ESC 30A	Competitor A	Competitor B
Continuous Current	30A	25A	30A
Burst Current	35A	30A	32A
Input Voltage	2-4S LiPo	2-3S LiPo	2-4S LiPo
BEC Output	No	No	Yes
Firmware	Simonk	Generic	Simonk clone
Weight	12g	11g	13g
Certification	Genuine	No	Mixed

Note: This comparison highlights why Simonk Red ESC 30A delivers reliable performance and quality compared to other ESCs.
