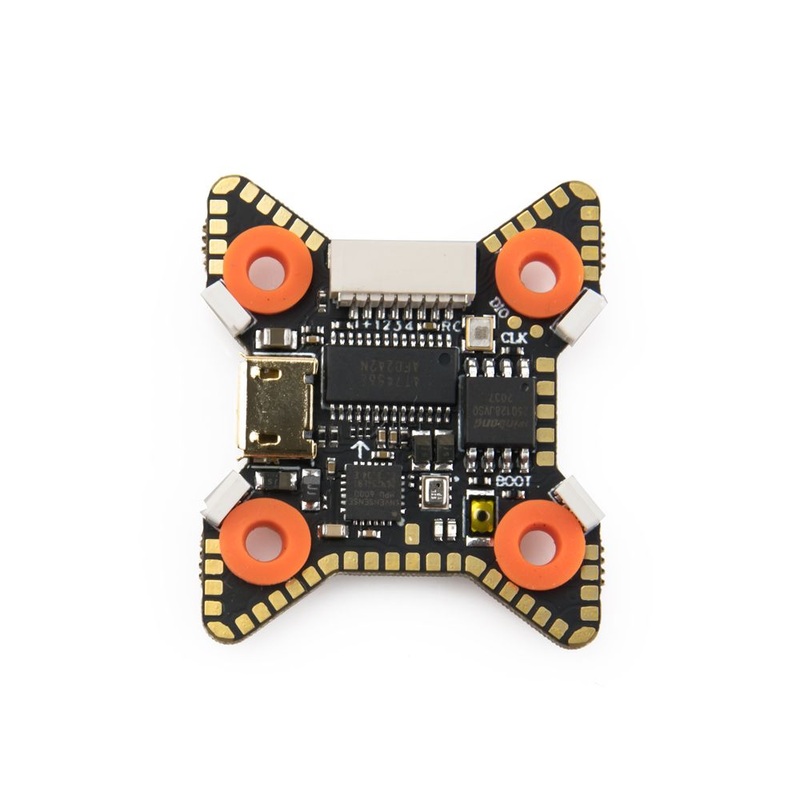

SkyStars F7 20×20 HD Flight Controller

Finally, a flight controller that makes your old F4 look like a Raspberry Pi running Doom. The SkyStars F7 HD Flight Controller packs an STM32F722 MCU, Betaflight OSD, DJI compatibility, and enough UARTs to make Joshua Bardwell nod approvingly. Yes, its only 4.2 g lighter than the solder blobs youll inevitably drop on it. Keywords snuck in: flight controller, Betaflight OSD, DJI FPV.

Why You Want It

Because your quad deserves more than the will it boot? lottery. With an F7 chip at 216 MHz, you get faster loops, cleaner signal handling, and room for all your gadgets (GPS, SmartAudio, turtle mode panic switch). And yes, we know youll still crash but at least your blackbox logs will look gorgeous. (Our profit margins thank you.)

Specifications

• MCU: STM32F722RGT6 216MHz
• IMU: MPU6000 (SPI) or BMI270
• OSD: Betaflight OSD & DJI HD OSD (UART6)
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Barometer: YES
• Buzzer Pad: YES
• 5V 2A & 10V 2A
• Input Voltage: 3-6S Lipo
• Blackbox: 16MB
• Firmware: SKYSTARS F7HD
• Dimensions: 35x28x7mm
• Mounting Holes: Standard 20mm/M3 square to the center of holes
• Supports DJI
• Weight: 4.2g

Whats in the Box*

• 1 SkyStars F7 36S 2020 HD Flight Controller

Disclaimer

Accessories may change, but we pinky-swear the flight controller stays the same tiny miracle board.

Still Here?

Youre either obsessive or procrastinating soldering. Respect. This SkyStars F7 20×20 HD flight controller is the sweet spot for DJI builds and Betaflight purists alike. Grab one before the next Pi-level supply meme hits, or at least share it with your FPV mate who still thinks F4 is good enough.
