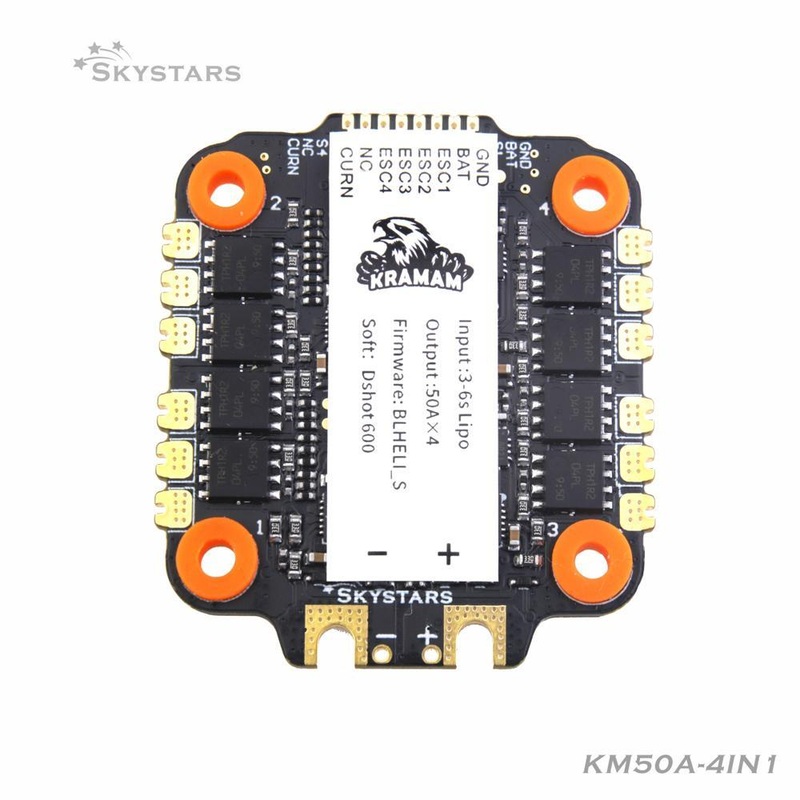

SkyStar KRAMAM 4IN1 50A 3-6S ESC 30.5×30.5mm

Features

1. Excellent over-current capability.
By adopt the best PCB material and PCB production process. Suchas application of high TG materials , 3oz copper PCB & 2m gold deposition processon PCB. Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.

2. Extreme stably support 6S LiPo battery
By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It make ESC canfully support 6s battery and get a better performance.

3. Excellent heat dissipation performance
The CNC hollow aluminum alloy shell use, Not only good for heat dissipation, but also get a beautiful appearance.

4. Better control performance
Flashed with Blheli_S 16.72 firmware in factory, support reversed Dshot 300 /600, make ESC have smooth control feel.

SPECIFICATION

• Itemname: 50A 4 in 1 ESC
• Continuous current: 50A
• Burstcurrent: 60A10S
• Working voltage: 3-6SLiPo
• Firmware: BLHeli_S/
• Support : Reversed Dshot300/600
• Firmware version:16.72(Q_H_25)
• BEC: No
• Product size: 41*46*7.6mm
• Weight: 17g

Package Included:

• 1 x ESC
• 4X Sillcone ring M3X8mm
• 4X Sillicone ring M3X3.5mm
• 1 x XT60 Connected Cable
• 1x Cable
• 1 x Capacitor 35V560uF
