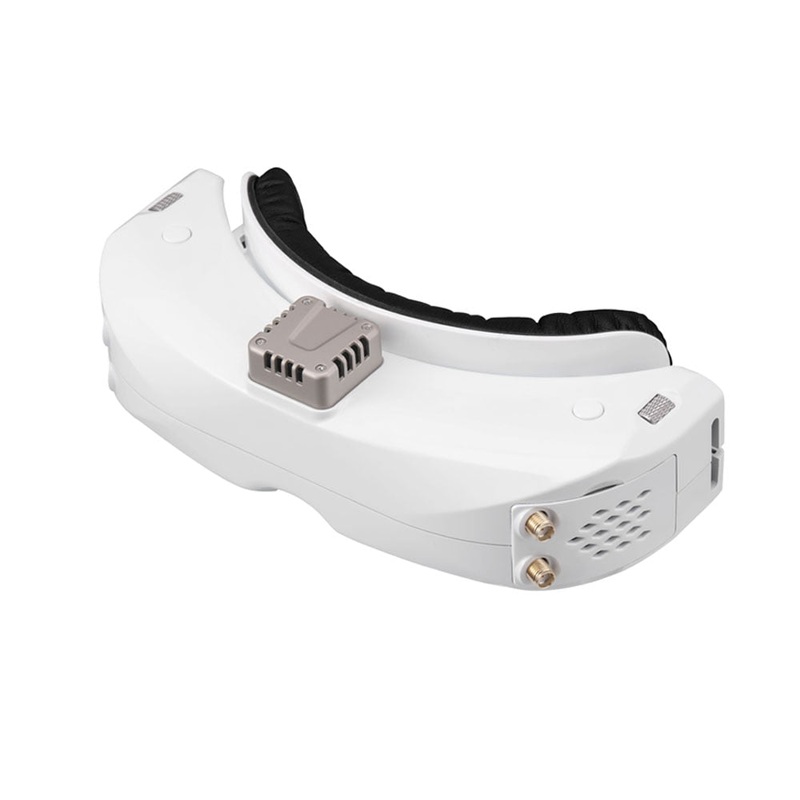

SKYZONE SKY04O FPV Goggles SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

Receiver: 5.8Ghz 48CH Steadyview receiver

RC Parts & Accs: Receivers

Origin: Mainland China

Model Number: SKY04L V2

Material: Composite Material

Language: 10 Language

Brand Name: Skyzone

>>>Features

The SKY04L is lite version(also LCOS version) of SKY04 series. with focus adjustment, 1280*960 high

resolution LOCS screen , the screen have vivid color , pilot can see more details in the racing .

With steadyview receiver , the receiver merge two signals to one, avoid image tearing and rolling, make

image more stable and clear in challenging condition.

The new designed optics have focus adjustment feature and 39 degree field of view, give pilots more

immersive FPV experience.

The new OS with 10 languages to set select, pilot have no trouble with the menu system, with shuttle

wheel and new user interface, pilot can set all the settings just by rolling the wheel without taking off the goggle.

>>>Quick Start Guide

1.Install the antenna and faceplate.

2.Use power cables to connect battery to the goggles, goggles can power by 2~6cell lipo battery, hold

the power button to turn on.

3.Focus adjustment: move the focus adjustment wheel to focus, close one eye to adjust the focus, you can

pop up the OSD menu as the template, when the image is clear, repeat the process with the other eye.

4.IPD adjustment: move the IPD slider until there is no double vision of the image.

>>>SKY04L Specifications

Screen:LCOS

Resolution:1280X960

FOVDiagonal:39

Aspect Ratio:4:3/16:9

Focus:-6~+6 adjustable

Interpupillary distance (IPD):58-71mm

Receiver:5.8Ghz 48CH SteadyView Receiver

Language:10 Languages

Power Supply:DC 6.5-25.2V/USB 5V

Power Consumption:720mA at 12V

DVR:H264, 60fps,MOV 6Mbps, SD Card support up to 128Gb

Head Tracker:3-axis Accelerometer, 3-axis gyroscope

Dimentions:185*75*67mm

Weight:267g

>>>SKY04O Specification

Model : SKY04O

Screen: OLED

Resolution : 1024*768

FOVDiagonal: 38

Aspect Ratio : 4:3/16:9

Focus : -6~+2 adjustable (Suitable for long-sighted and near-sighted people.)

Interpupillary distance (IPD) : 58~71mm

Receiver : 5.8Ghz 48CH Steadyview receiver

3D Function : Side By Side half

Language : 10 Language

Power Supply : DC 6.5-25.2V/USB 5V

Power Consumption : 720mA @ 12V

DVR : H264, 60fps,MOV 6Mbps, SD Card support up to 128Gb

Head Tracker : 3-axis Accelerometer, 3-axis gyroscop

Antenna Connector : SMA

Dimentions : 185*75*67mm

Weight : 262g

>>>Package Included

1. Goggles*1

2. Receiver Module*1

3. Faceplate*2(wide and narrow)

4. Sponge with velcro*1

5. Zipper case*1

6. Power cable*1

7. Headtracker cable*1

8. 5.8GHz 2dB antennas*2

9. Video/Audio Cable*1

10. USB-C Cable*1

11. User Manual*1

Specifications SKYO4X-SKY04L Screen OLED OLED LcOS Resolution 1280*960 1024*768 1280×960 FOV (Diagonal) 460 389 399 Aspect Ratio 4.3 16.9 Focus 6-+2 adjustable Interpupillary distance (IPD) 58-7lmm Receiver 5.8Ghz 48CH SteadyView Receiver Language 10 Languages Power Supply DC 6.5-25.2V/USB SV Power Consunption

Skyzone SKY04O FPV goggles feature a focus adjustment shuttle wheel, control over the SteadyView receiver, and an advanced screen setting with 16.9-inch display and support for 10 languages.

SKYZONE LCOS screen have high resolution and Vivid color . the 1280*960 LCOs screen have low latency and low dtails .

Skyzone optics offer a wide field of view, measuring 39 degrees, and also feature adjustable focus (-6 to +6 diopters), eliminating the need for additional diopter correction.

Enjoy seamless navigation with SKYZone’s Shuttle Wheel Control, which eliminates the need for complicated buttons or joysticks, providing a natural and intuitive control experience.

The SKYZONE SteadyView Receiver combines two signals into one, resulting in a more stable and clear image even in challenging conditions. Additionally, the module goggles offer greater upgradability capabilities.

The UI features a shuttle wheel for navigation, allowing users to choose from 10 languages for a localized experience. Additionally, the FPV system includes RSSI fan mode with DVR capabilities at a frequency of 5.79 MHz on channel I, along with image tracking. The power supply requires calibration of voltage levels, and the display settings include features such as speed and sutch (a type of tracking). Furthermore, the rotary system beeps to indicate settings have been adjusted.

Features four preset screen settings and three customizable options for optimal viewing experiences in various environments, including indoor and outdoor flights under different weather conditions.

Google V Focus Adjustment Shuttle Wheel Control SteadyView Receiver 4.3 16.9] 10 Languages New UI Advance Screen Setting ((

SKYZONE 1024*768 OLED screen have high resolution and vivid color, high contrast ration, pilots can see more details . lack of dtails and color, latency is no good.
