SPECIFICATIONS

Brand Name: Soulload

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

Hign-concerned Chemical: None

Is Electric: No battery

Material: Carbon Fiber

Model Number: 13 inch/15 inch Frame

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Landing Gear

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: 520mm/580mm

Technical parameters: value 2

Tool Supplies: Grinded

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

Assembly instructions for a SoloGood Carbon Fiber FPV Drone include a parts list and steps for installing columns, connecting arms, mounting components, and using tripod holes. Renderings display the final structure.

13-inch 3K carbon fiber frame with arms plate dimensions 166 x 16 x 1mm.

SoloGood Carbon Fiber FPV Drone specifications: Wheelbase 520mm, Arms plate 166 x 16 x 1mm, Top/Bottom/Side plates 2.5mm, Camera mount size 19mm.

A 13-inch FPV drone frame kit includes the main body, four arms, a spare tripod, instructions, and screws (M3x10, M3x35, M3x21.5 aluminum columns).

A 13-inch FPV drone frame kit includes a main body, four arms, a spare tripod, instructions, and screws. Components are labeled for easy assembly.

Product dimensions and leg mounting hole specifications for SoloGood Carbon Fiber FPV Drone.

Assembly instructions for the SoloGood Carbon Fiber FPV Drone (IDFTECF-15) include a parts list with specifications and steps for installing columns, connecting frames, mounting components, and tripod holes. Renderings display the final structure.

SoloGood 15-inch 3K Carbon Fiber FPV Drone Frame with Arms Plate Dimensions: 196 x 16 x 1mm.

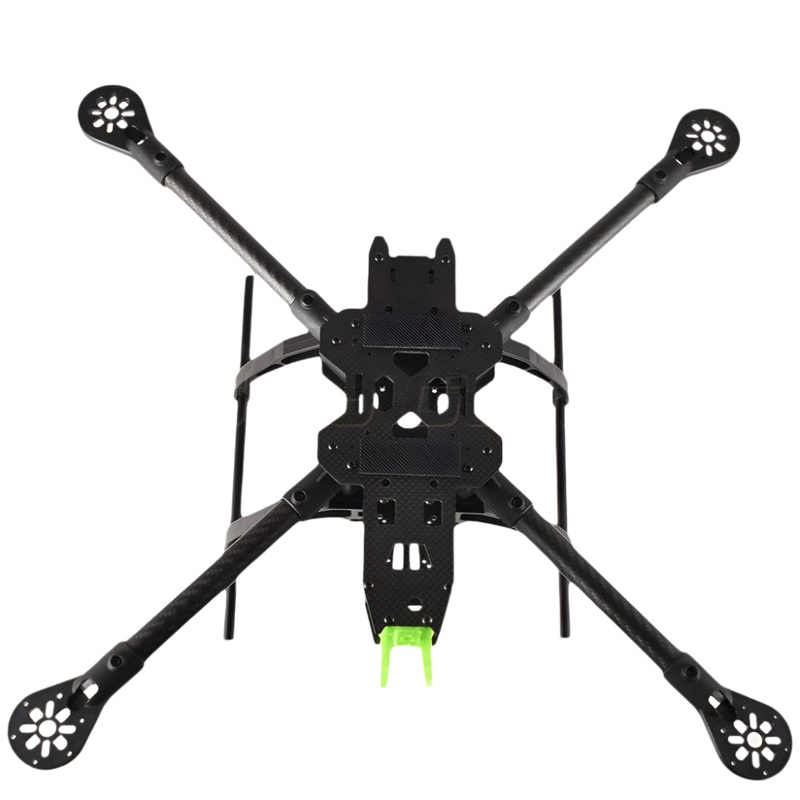

A 15-inch drone frame, 580mm, freestyle design, carbon fiber for durability and performance.

SoloGood Carbon Fiber FPV Drone has a 580mm wheelbase, arms plate (196 x 16 x 1mm), top/bottom plates (2.5mm), side plate (2.5mm), and 19mm camera mount.

A 15-inch FPV drone frame kit includes the main body, four arms, an assembly manual, 12 M3*35 screws, a spare tripod, and four aluminum columns. Components are labeled for clarity.

A 15-inch FPV drone frame kit includes the main body, four arms, an assembly manual, 12 M3*35 screws, a spare tripod, and four M3*21.5 aluminum columns.

A SoloGood Carbon Fiber FPV Drone with dimensions, leg mounting holes, and structural measurements in millimeters.
