Specifications
Designation:750MHz Rx
MCU:ESP8285
Antenna interface:IPEX 1
Telemetry power:Max 50mW
Frequency band: 750MHz-780MHz
Max Air Rate : 200Hz
Min Air Rate : 25Hz
Voltage range: 4.5-8V
Weight: 0.48g (No Antenna)
Size:10mm*12mm*3mm
Communication protocol:CRSF (Betaflight)

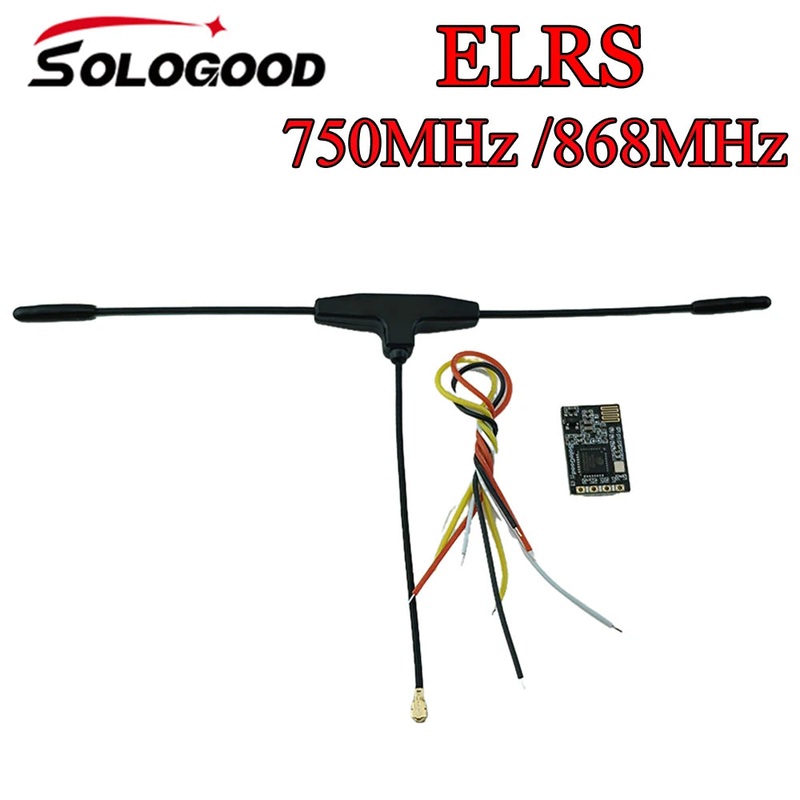

Product list:
750MHz Rx*1,T Dipole antenna*1,30AWG Silicone Wire*4(BLlack,Red,Yellow,White),Transparent heat shrink tubing*1
LED Status:
Slow blink 500ms on/off–Waiting for connection from transmitter
Fast blinking 25ms on/off–WiFi mode enabled
Medium speed blink 100ms on/off–Radio chip not detected
Double blink then pause–Binding mode enabled
Triple blink then pause–Connected to transmitter but mismatched model-match
configuration
Solid on–Connected to a transmitter, or bootloader mode enabled
Specifications
Designation:868MHz Rx
MCU:ESP8285
Antenna interface:IPEX 1
Telemetry power:Max 50mW
Frequency band: 865.2MHz-869.5MHz
Max Air Rate : 200Hz
Min Air Rate : 25Hz
Voltage range: 4.5-8V
Weight: 0.48g (No Antenna)
Size:10mm*12mm*3mm
Communication protocol:CRSF (Betaflight)
Product list:
868MHz Rx*1,T Dipole antenna*1,30AWG Silicone Wire*4(BLlack,Red,Yellow,White),Transparent heat shrink tubing*1
LED Status:
Slow blink 500ms on/off–Waiting for connection from transmitter
Fast blinking 25ms on/off–WiFi mode enabled
Medium speed blink 100ms on/off–Radio chip not detected
Double blink then pause–Binding mode enabled
Triple blink then pause–Connected to transmitter but mismatched model-match
configuration
Solid on–Connected to a transmitter, or bootloader mode enabled
