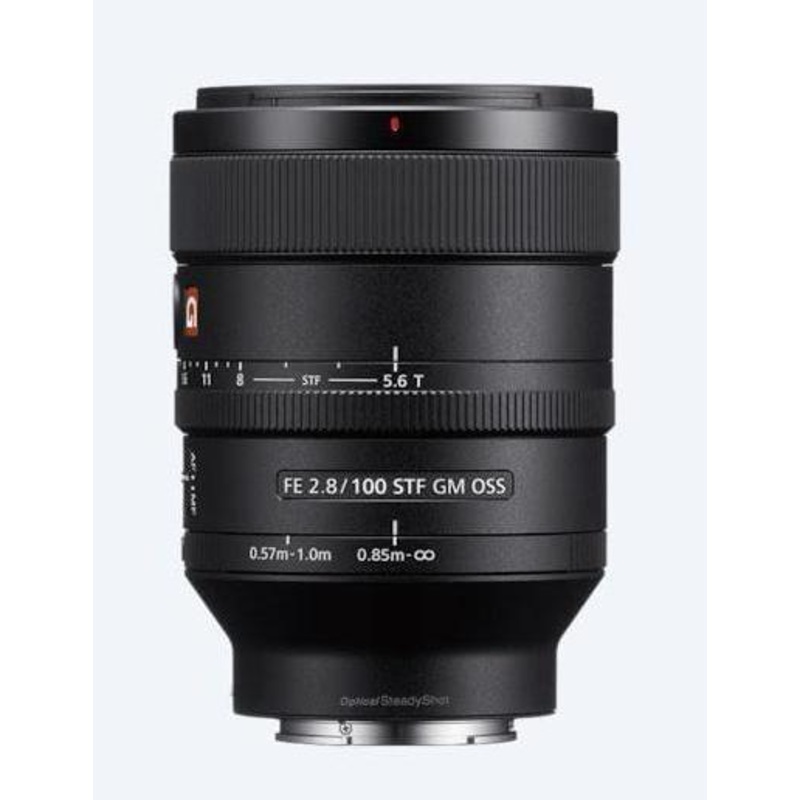

Sony FE 100mm F2.8 STF GM OSS

Sony SKU: SEL100F28GM | Helix SKU: SYSEL100F28GM

Overview

STF delivers incomparable bokeh and sharpness

This 100 mm mid-range telephoto prime lens is a superb creative tool that offers outstanding G Master resolution plus innovative STF (Smooth Trans Focus) optics for magnificent bokeh. It features fast, precise, quiet DDSSM autofocus, and close-up capability up to 0.25x magnification. Built-in Optical SteadyShot image stabilization minimizes blur that can occur during low light or macro shooting.2

Exemplary G Master resolution and bokeh

Advanced optics and design achieve extreme resolution and absolutely breathtaking bokeh that combine for overall performance that epitomizes the G Master concept.

Bokeh doesn’t get better than this

This lens has been specifically designed to produce extraordinarily smooth, natural bokeh without vignetting. The result is naturally immersive depth and dimensionality.

Resolution true to the G Master name

Extreme image-wide resolution and sharpness fulfill the demanding 50 lines per millimeter MTF requirement that is the basis of G Master optical design.

AF that lets you concentrate on creating

DDSSM (Direct Drive SSM) focus drive provides fast, precise, quiet autofocus, allowing the user to concentrate fully on capturing superlative stills or movies.

Lens Configuration

G Master series lenses take imaging and expression to previously unattainable levels with a stunning blend of extremely high resolution and softly dissolving background bokeh.

[1] APD [2] Aspherical lens [3] ED glass

MTF Chart

MTF (Modulation Transfer Function) describes how well a lens can reproduce fine details, measured as the degree of contrast achieved between finely spaced lines.

[1] Contrast (%) [2] Distance from optical center of lens (mm) [3] Max. aperture [4] F8 aperture [5] Spatial frequency [6] 10 line pairs / mm [7] 30 line pairs / mm [8] R: Radial values T: Tangential values

Specifications

MOUNTSony E-mountFORMAT35 mm full frameFOCAL LENGTH (MM)10035 MM EQUIVALENT FOCAL LENGTH (APS-C)150LENS GROUPS / ELEMENTS1013 *excluding APD elementANGLE OF VIEW (35MM)24 ANGLE OF VIEW (APS-C)162MAXIMUM APERTURE (F)F2.8 (T5.6)MINIMUM APERTURE (F)F20 (T22)APERTURE BLADES11CIRCULAR APERTUREYesMINIMUM FOCUS DISTANCE2.79 ft/0.85 m (at “0.85 m” position); 1.87 ft/0.57 m (at “0.57 m1.0 m” position)MAXIMUM MAGNIFICATION RATIO (X)0.14 (at “0.85 m” position); 0.25 (at “0.57 m1.0 m” position)FILTER DIAMETER (MM)72IMAGE STABILIZATION (STEADYSHOT)Optical SteadyShotTELECONVERTER COMPATIBILITY (X1.4)–TELECONVERTER COMPATIBILITY (X2.0)–HOOD TYPERound, bayonet type

Size & Weight

DIMENSIONS (DIAMETER X LENGTH)3 3/8 x 4 3/4″ (85.2 x 118.1 mm)WEIGHT24.7 oz (700 g)

Item Includes

• Hood (model): ALC-SH147
• Lens front cap: ALC-F72S
• Lens rear cap: ALC-R1EM
• Case
