Sony RTK1 Kit for Airpeak

Add RTK to your Sony Airpeak S1

This RTK Module is designed for theSony Airpeak S1drone. It helps bring superior accuracy to aerial inspections, surveys, and mapping. RTK (Real-time Kinematics) tags each image with positional metadata as it’s taken, providing corrections in real-time. This makes the module an invaluable add-on for surveyors looking for an efficient and cost-effective alternative to otherwise expensive and time-consuming work.

A fullkit with ground control

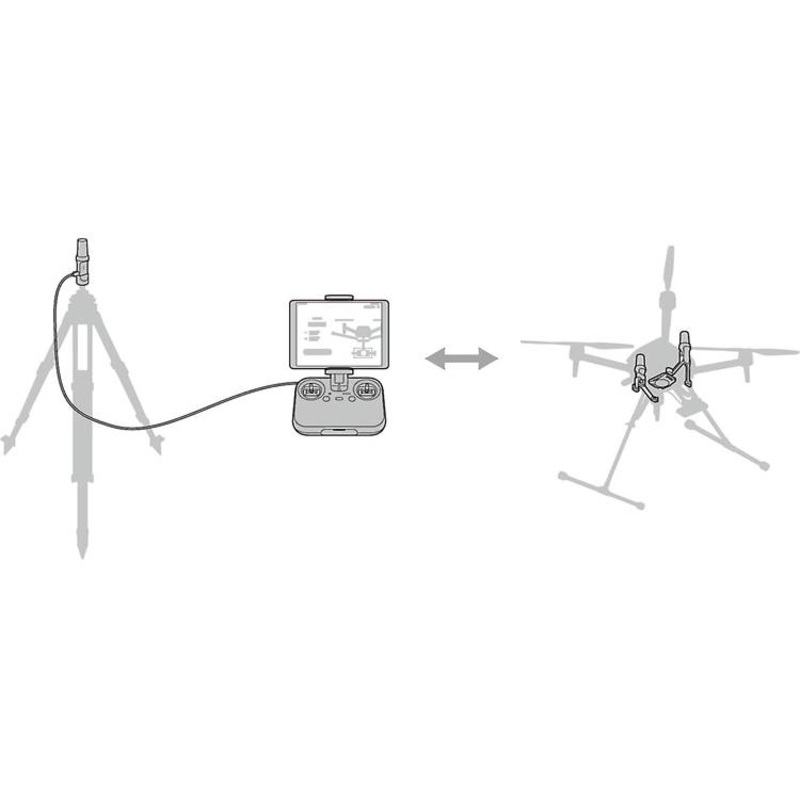

This kit includes a pair of antennas that mount to the drone and a base station that connects to the drone’s remote controller. This combination gives you everything you need for super-accurate positioning. You can also connect to the internet and use network GNSS correctional data services, giving you the freedom to interface with a variety of work environments.The dual-antenna design also helps provide resistance to strong magnetic fields to keep your signal clear even in challenging sites.

Product highlights:

• designed for use withSony Airpeak S1
• kit includes interface unit, two foldable drone antennas, and base station with antenna
• RTK (Real-time Kinematics) provides centimeter-level accuracy for positioning data in real-time
• allows the generation of incredibly accurate point cloud data and 3D models
• supports connectivity for network-based RTK GNSS (Global Navigation Satellite System) services via the Airpeak Flight mobile app
• positioning data can be stored on an optional SD card (sold separately)
  • positioning data can be synchronized with image data for accurate geotagging (available summer 2023)
• dual drone antenna design helps resist magnetic interference
• base station connects to Airpeak S1 remote controller via USB-C (cable included)
• automatically detects if the base station topples over and notifies the pilot
• includes hot shoe attachment and cable to connect to compatible mounted cameras
• 2-1/4″W x 7-5/8″H x 5-1/8″D (antennas); 1-5/8″W x 6″H x 1-5/8″D (base station); 2-5/8″W x 3/4″H x 3-1/2″D (interface)
• weight: 3 oz. (antennas); 3.7 oz. (base station); 2 oz. (interface)
• warranty: 1 month
• MFR # RTK1
