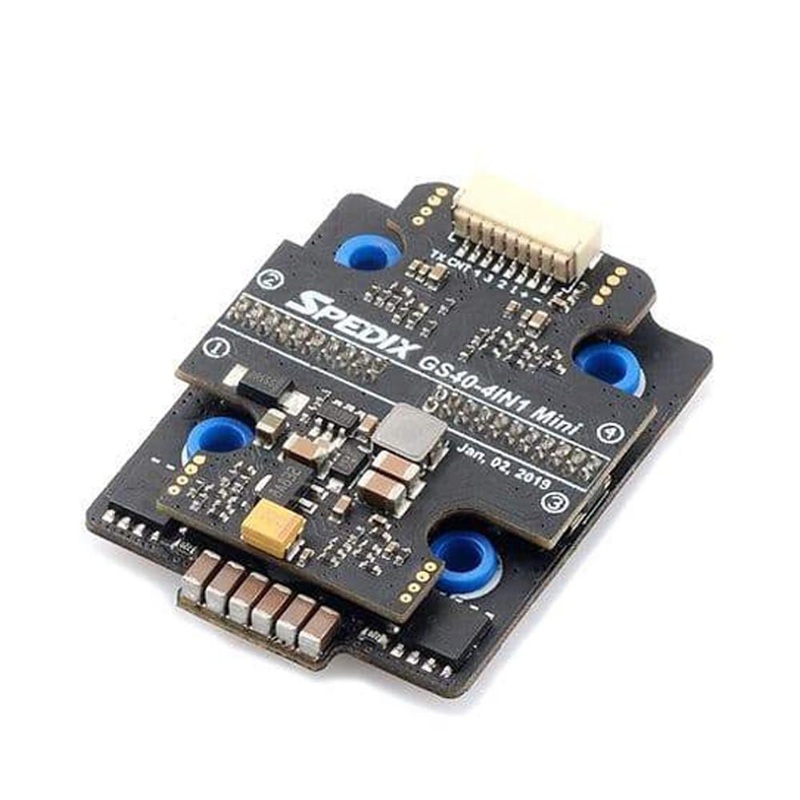

Spedix GS40F 4IN1 Mini 40A 3-6S ESC 20x20mm

Spedix GS40F Mini is an reliable 20x20mm 6S 4-In-1 ESC. Limited by the smaller size of 20x20mm ESC, engineers have usually used a 3mm mini MOSFET, which isvulnerable to the ever-growing demand of power and current/voltage of the FPV market.

With Spedix’s innovative design, separating the control board and the power board, they have successfully implemented a full-size 5x6mm MOSFET onto this 20x20mm ESC.

By combining reliable hardware with the fastest GD32F3 MCU in the market, Spedix is able to present you with a high performance mini 20x20mm ESC of extreme reliability and responsiveness.

Features

• Innovative double deck design enables the implementation of full-size 5*6 MOSFET on 20*20mm mini 4IN1 ESC.
• 40V MOSFET improves the overall reliability in fast response to throttle signalsmaking the 6 cell input capable in the real world
• GD32F3 MCU provides highest responsiveness in the market.
• Extremely small size makes mounting on smaller frames easier than ever.

Specifications

• Brand:Spedix
• Model:GS40F Mini 4 in 1
• Input:3-6 Cell LiPo
• Continues Current:40A
• Burst Current:50A (10 Seconds max)
• Firmware: Blheli-32
• Dimensions:40x31x8mm
• Mounting holes:20x20mm
