Overview:

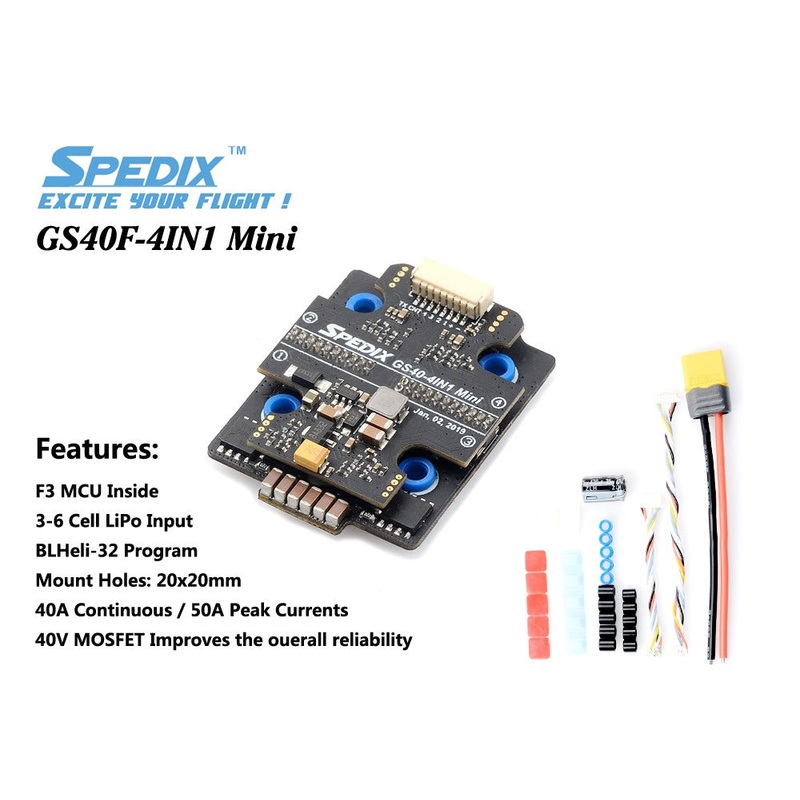

GS40F 4IN1 MINI is an extremely reliable 20*20mm mount 6S 4IN1 ESC.
Limited by the smaller size of 20*20mm ESC, Engineers have always been using 3mm mini MOSFET used on 20*20mm ESCs. This compromise made these ESCs vulnerable to the ever-growing demand of heat sinking capabilities and current/voltage tolerance of the FPV market.
With our innovative design, by separating the control board and the power board, we successfully implemented full-size 5*6mm MOSFET onto this 20*20mm ESC. By combining reliable hardware with the fastest GD32F3 MCU in the market,
We are able to present you with a high performance mini 20*20mm ESC of extreme reliability and responsiveness.
Features:
1.Innovative double deck design enables the implementation of full-size 5*6 MOSFET on 20*20mm mini 4IN1 ESC.
2. 40V MOSFET improves the overall reliability in fast response to throttle signalsmaking the 6 cell input capable in the real world
3. GD32F3 MCU provides highest responsiveness in the market.
4.Extremely small size makes mounting on smaller frames easier than ever.
Specifications
Brand: Spedix
Model: GS40F Mini 4 IN 1
Input:3-6 Cell LiPo
Continuous Current: 40A
Burst Current: 50A10S
BEC: No
Current Detection: YES
Firmware: BLHeli_32
Dimensions: 40x31x8mm
Mount Holes: 20x20mm
Weight13.2g
Application: 200-300mm racing drone
Perfect as a combo with theBrainFPV Radix LIor any other 20×20 or full-sized flight controller.
