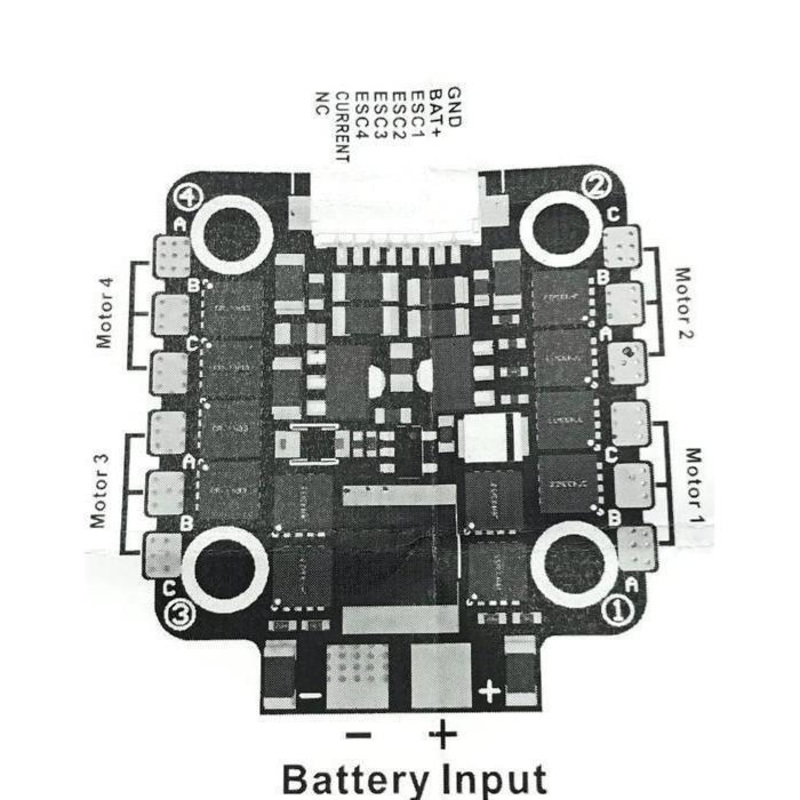

Spedix IS25 4IN1 25A 2-5S ESC 20x20mm

Specifications:

• Continuous Current:25 amps
• Burst Current:35 amps10 S
• Input Voltage:2-5 Cell LiPo
• BEC:No
• Current Detection:Yes
• Dimensions:29x32x5mm
• Mounting pattern:20x20mm
• Mounting Holes:3.7mm (M3 shoulder washers included)
• Firmware:BLHeli_S(QH-15)
• Input signal:PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300 & Dshot600

Included:

• 1x 25amp 4in1 ESC
• 10cm red & black 16AWG wire
• 10x M3 shoulder washers (8 required, 2 spare)
• 25v 330F capacitor
• 2x 1mm JST-SH 8-pin connectors
• 1x Datasheet

Notice:

1. If 5S is used, it’s recommended to solder the included capacitor.
2. The amperage meter scale needs to be set to 200 for the current sensor to work.
