Spedix IS40 4IN1 40A ESC 20x20mm

Specifications

• Brand: Spedix
• Model: IS40 4 IN 1 Mini
• Input:3-6 Cell LiPo
• Continuous Current: 40A
• Burst Current: 50A10S
• BEC: No
• Current Detection: YES
• Firmware: BLHeli_S
• Dimensions: 40x31x8mm
• Mount Holes: 20x20mm
• Weight13.2g
• Application: 200-300mm racing drone

Overview:

IS40 4IN1 MINI is an extremely reliable 20*20mm mount 6S 4IN1 ESC. Limited by the smaller size of 20*20mm ESC, Engineers have always been using 3mm mini MOSFET used on 20*20mm ESCs.

This compromise made these ESCs vulnerable to the ever-growing demand of heat sinking capabilities and current/voltage tolerance of the FPV market. With our innovative design, by separating the control board and the power board, we successfully implemented full-size 5*6mm MOSFET onto this 20*20mm ESC.We are able to present you with a high performance mini 20*20mm ESC of extreme reliability and responsiveness.

Features:

• Innovative double-deck design enables the implementation of full-size 5*6 MOSFET on 20*20mm mini 4IN1 ESC.

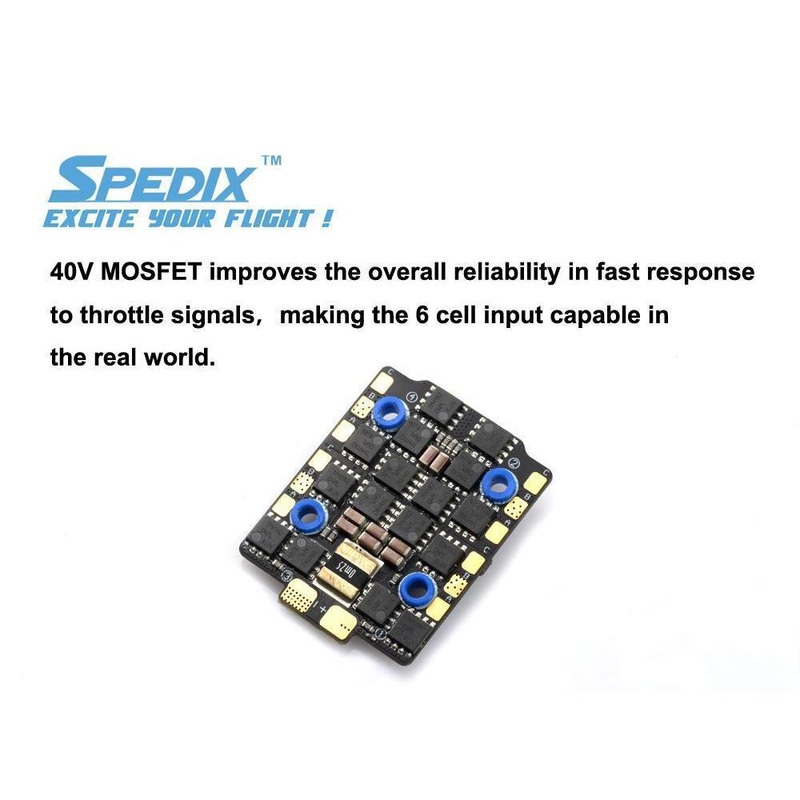

• 40V MOSFET improves the overall reliability in fast response to throttle signalsmaking the 6 cell input capable in the real world
• Silicone rings insulate standoffs, PCB, and parts.
• The extremely small size makes mounting on smaller frames easier than ever.
