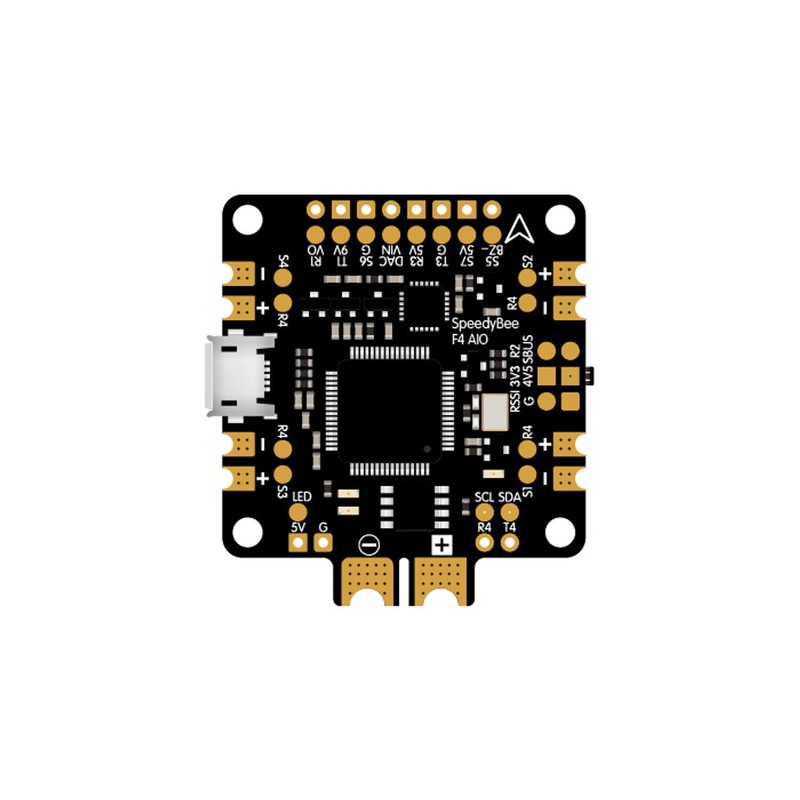

Speedybee F4 AIO Flight Controller Ver 2.0

Specifications

MCU	STM32F405
IMU	MPU6000
OSD	BetaFlight OSD w/ AT7456E chip
BLE Module	Inner connect to UART5 for remote setting with Speedy Bee App or other similar apps
BlackBox	16MB onboard dataflash
Current Sensor	200A(Scale 302)
Power input	3s – 6s Lipo
Power output	4.5V * 1 , 3.3V * 1, 5V * 3(Max.2A) , 9V * 1(Max.2A)
Cam And VTX power output	Built-in LC-Filter for 5V and 9V
ESC power output	4 * VCC output
UART	UART Pads * 3(UART1, UART3, UART4)
UART2 for Receiver	Built in inverter of RX2 for SBUS input through SBUS pad, RX2 pad used for PPM, DSM2, DSMX, IBUS
RSSI input	RSSI input solder pad
I2C	Used for external GPS, Barometer module
Buzzer	Buz- and 5V pad used for 5V Buzzer
ESC signal	s1 – s7
LED pin	Used for WS2812 LED
Boot button	Used to easy enter DFU mode
Weight	8.8g
Dimension	36*39*7mm

Package

• Speedy Bee F4 AIO Flight controller * 1
• M3*3+3 Nylon column * 6
• M3 Nylon nut * 6
• M3 Anti-vibration Gasket * 6
• Rubycon 35V 470uf capacitor * 1
• Manual * 1

Details

BLE Module Integrated 0 configuration

Setting the FC parameters via mobile deviceiOS 10.0+iPhone4S, iPad 3rd Gen and laterAPP StoreAndroid 4.3+:Google Play,DownloadThrottle Armed, the Bluetooth module will deactivate automatically
Throttle Disarmed, the Bluetooth module will activate automatically

MCU: STM32F405

Much better than STM32F1 and F3

Built-in LC Filter | Clear image | Reduce noise

All 5V/9V Output with LC Filter

Without LC FilterWith LC Filter

Support OSD

Preview (drag to change position)

PDB integrated for powering external devices

1*3.3V/1*4.5V/3*5.0V/1*9.0V Output

Direct power to the ESCs

MPU6000 Gyroscope More stable

• Power Input3s-6s Lipo Power
• 4*UARTUART2 for receiver
• Battery MonitoringCurrent Sensor 200A(Scale 302)
• RSSI inputSafer flight
• I2CExternal GPS
• 6-layer PCBMore solid

Speedy Bee F4 AIO Flight Controller

Speedybee F4 AIO Flight Controller Ver 2.0 Lipo 3S-65V Built-in Bluetooth Chip Zero configuration, connect to Speedy Bee APP directly after power-on, easy to set FC parameters. LED Telemetry and ESC Signal (5V) 45v Sensor GND 28 SBUS Channels 80423 acdeiaeRlcMc %30 Iv +J aad paads ESC Signal 5V $9v ESC Signal Telemetry and Debitator Cjcaiciuen Tm Wideo GND GND Video Buzzer 388F2 Runlam Model Micro Swift 3
