Features
- Fully featured flight stack that is great value for money
- Built in Bluetooth module for wireless FC and ESC configuration
- 50A Blheli_S ESC
- Supports 8x motors
- SD card support (up to 4GB)
- 4x LED strip connection pads
- DJI Air unit compatible (plug and play)
- 4x UARTs
- 5V 2A, and 9V 2A BEC’s
- Integrated Baro
Specifications
F405 FC Specifications

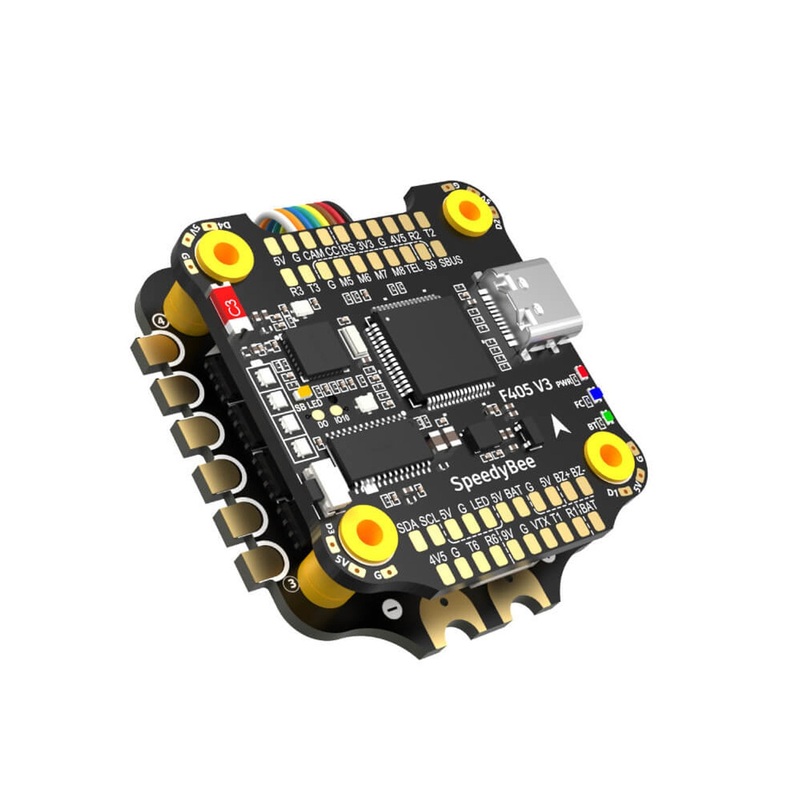

- Product Name: SpeedyBee F405 V3 Flight Controller
- MCU: STM32F405
- IMU(Gyro): BMI270
- USB Port Type: Type-C
- Barometer: BMP280
- OSD Chip: AT7456E chip
- BLE Bluetooth Supported. Used for Flight Controller configuration
- DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering.
- Blackbox MicroSD Card Slot
- BetaFlight Camera Control Pad
- Current Sensor Input: Supported.
- Power Input: 3S – 6S Lipo
- 5V Output: The total current load is 2A.
- 9V Output: The total current load is 2A.
- 3.3V Output: Up to 500mA current load.
- 4.5V Output: Up to 1A current load.
- ESC Signal : M1 – M4 on bottom side and M5-M8 on front side.
- UARTS: 5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6)
- ESC Telemetry: UART
- I2C: Supported
- Buzzer: Supported
- RSSI Input: Supported
- SmartPort: Supported
- Mounting: 30.5 x 30.5mm( 4mm hole diameter)
- Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm
- Weight: 9.6g
50A ESC Specifications
- Firmware: BLHeli_S JH50
- Wireless Configuration: Full Configuration Supported in the SpeedyBee app
- Continuous Current: 50A * 4
- Burst Current: 55A(5S)
- TVS Protective diode Yes
- External Capacitor: 1500uF Low ESR Capacitor(In the package)
- ESC Protocol: DSHOT300/600
- Power Input: 3-6S LiPo
- Power Output: VBAT
- Current Sensor: Support (Scale=386 Offset=0)
- Mounting: 30.5 x 30.5mm( 4mm hole diameter)
- Dimension: 45.6(L) * 44(W) * 6.1mm(H)
- Weight: 13.8g
Includes
- 1x SpeedyBee F405 V3 BLS 50A Flight Stack (includes FC and ESC and connection cables)
- 1x Accessories Pack
