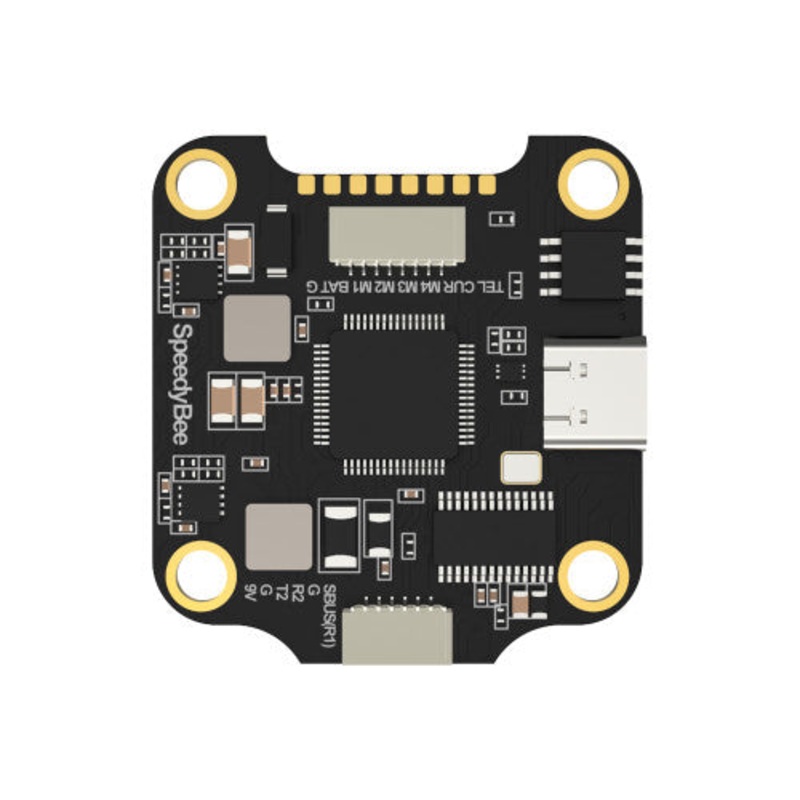

SpeedyBee F7 V2 Flight Controller

SpeedyBee F7V2 Specifications

MCU	STM32F722
IMU	MPU6000
USB	Type-C
Barometer	BMP280(I2C)Warning:Do not apply conformal coating on the berometer because the air hole can be clogged.
OSD	BetaFlightOSDw/AT7456Echip
BLE	Support, used for Flight Controller configuration
WiFi	Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
DJI Air Unit slot	A full DJI Air Unit JST slot onboard
BlackBox	16MBonboarddataflash
Current Sensor	1 : 10 (Scale168)
BetaFlightCameraControlPad	Yes
Power input	3S – 6S Lipo
5V BEC x 1	5V output x 7 , 6 pads, and a BZ+ pad used for Buzzer, the maximum load current in total is 2.5A.
9V BEC x 1	9V output x 2 , 1 pad and another one used for DJI slot, the maximum load current in total is 2.5A.
4.5V power output	1 * 4.5V output pad
3.3V power output	1 * 3.3V output pad, themaximumloadcurrentis500mA.
ESC signal	M1- M4
UART	Full UART*5(UART1,UART2,UART3, UART5,UART6)
ESC Telemetry UART	UART4 RX
I2C	UsedforexternalMagnetometer,Sonar,etc.
LED pin	UsedforWS2812LED
Buzzer	BZ+andBZ-padusedfor5VBuzzer
Boot button	UsedtoeasyenterDFUmode
RSSI input	RSSIinputsolderpad
SmartPort	Use any TX pad of UART for the SmartPort feature.
Support Flight Controller Firmware	BetaFlight(Default), EMUFlight
Target name	SPEEDYBEEF7V2
Mounting	30.5 x 30.5mm,4mm hole size
Dimension	41 x 38 x 6.9mm
Weight	9g

SpeedyBee F7 V2 Details

SpeedyBee F7 V2 Flight Controller Product Image: Features: Gyro Low Pass Filter (PTT) with dynamic cutoff between 200-500Hz Gyro Low Pass Filter Zeroing (PTA) with cutoff at 50Hz World first FC with wireless firmware flashing and blackbox analyzer access PID (pitch): -0.9% Flash firmware wirelessly Analyze Blackbox data wirelessly PID tuning: 0, 0% Set motor directions on BLHeli_32/S wirelessly for full configuration (BF/INAV/EMU) Built-in Wi-Fi and Bluetooth Motor outputs: + Motor [1]: 35% + Motor [2]: 19% + Motor [3]: 32% + Motor [4]: 24%

FC Firmware Flasher Step 3/3: Flash the latest firmware wirelessly. Built with a WiFi Bluetooth two-in-one chip, upgrade your FC firmware via WiFi connection using your smartphone in just 90 seconds.

The SpeedyBee F7 V2 Flight Controller allows for seamless analysis of flight data. With the ability to tune your quad at any time, you can land it, pull out your smartphone, and access your Blackbox data in just a minute. This convenient feature eliminates the need for a laptop or wires, making it a mess-free experience.

WIFI Bluetooth: The Best of Both Worlds. Use Bluetooth for quick access to your firmware configurator or switch to Wi-Fi to flash firmware or download Blackbox data. Simply plug in your LiPo battery to activate wireless connectivity and arm your quad to deactivate it – easy!

Introducing the SpeedyBee F7 V2 Flight Controller, designed for perfection. The board features 22mm cutouts for an FPV camera on both the FC and ESC boards, ideal for compact racing frames. The gyroscope is precisely placed at the center of the board to provide accurate gyro data for your flights. With its reliable performance, this flight controller is perfect for pilots seeking a high-quality flying experience.

Layout

SpeedyBee F7 V2 Flight Controller: 14mm Immersion (30×30) P/G, RSI IVS, PWM, ICA SVi, TS [Raven @id], BTAN IF, EC [41.4mm x 45.6mm] Kc, F7 V2, Digital Gyro, Live SpeedyBee, Regulator, 5th Generation Vortex.

Wiring GuidePackage

SpeedyBee F7 V2 Flight Controller. Includes one unit of SpeedyBee F7 V2 FC, one Fnd D0 4″ JST 8PIN Cable, and one DJI 6PIN Cable (8Omm). Also includes five pieces of 8mm Anti-vibration Silicone Grommets for vibration reduction.
