Overview
SpeedyBee Mario 5 DC/XH Drone Upgrade Kit is a modular upgrade kit series for the Mario 5 platform, offering DC Type and XH Type options and multiple equipment configurations (Power Kit, DC O3 Kit, and DC O4 Kit). The design combines CNC parts and full carbon fiber with injection-molded components and TPU protective accessories, and uses a dual-support frame with oversized 6mm arms to help disperse impacts.
Key Features
- Dual mainstream versions: DC and XH versions available.
- Reinforced structure: dual-support frame design; reinforced 6mm arms.
- Electronics platform: SpeedyBee F405 V4 flight controller, ICM42688 gyroscope, SpeedyBee BLS 55A ESC (70A peak current stated).
- Motor: Speedybee Bee Storm 2306.5 PRO 1880KV.
- Bluetooth App tuning supported.
- Custom internal compartments for organized component placement.
- Receiver expansion bay and 10*20mm capacitor storage.
- DC O3 setup statement: DC version setup features DJI O3 VTX, delivering crystal-clear visuals without prop interference. (155 marking shown.)
- Cooling statement for DJI O3 Air Unit: magnesium alloy heat sink increases standby time by over 80% vs traditional bottom cooling (stated), aiming for stable signal transmission.
Specifications
Mario 5 DC/XH Power Kit vs Mario 5 DC O3 Kit
| Model | DC Type / XH Type | DC Type (No props in the view) |
| Features | Dual mainstream models, flexible options | Crystal clear view, immersive flight |
| Flight Controller | SpeedyBee F405 V4 | SpeedyBee F405 V4 |
| ESC | SpeedyBee BLS 55A (no heatsink) | SpeedyBee BLS 55A (no heatsink) |
| Motor | Speedybee Bee Storm 2306.5 PRO 1880KV | Speedybee Bee Storm 2306.5 PRO 1880KV |
| Camera | X | DJI O3 Air Unit |
| VTX | X | DJI O3 Air Unit |
| Antenna | X | DJI O3 Air Unit |
| Propellers | HQ J40 | HQ J40 |
| FC Side Protection (Translucent Black/Purple) | Yes | Yes |
| O3 Heat Dissipation Protection | Optional | Yes |
| Bluetooth App Tuning | Yes | Yes |
| GPS Module | Optional (GPS 18*18mm) | Optional (GPS 18*18mm) |
| Maximum Horizontal Flight Speed | 190km/h | 190km/h |
| Flight Time | 10 minutes (Takeoff weight: 640g at 35km/h) | 9 minutes (Takeoff weight: 710g at 35km/h) |
| Weight | 417g (without battery) | 485g (without battery) |
Mario 5 DC/XH Power Kit vs Mario 5 DC O4 Kit
| Model | DC Type / XH Type | DC Type (No props in the view) |
| Features | Dual mainstream models, flexible options | Crystal clear view, immersive flight |
| Flight Controller | SpeedyBee F405 V4 | SpeedyBee F405 V4 |
| ESC | SpeedyBee BLS 55A (no heatsink) | SpeedyBee BLS 55A (no heatsink) |
| Motor | Speedybee Bee Storm 2306.5 PRO 1880KV | Speedybee Bee Storm 2306.5 PRO 1880KV |
| Camera | X | DJI O4 Air Unit Pro |
| VTX | X | DJI O4 Air Unit Pro |
| Antenna | X | DJI O4 Air Unit Pro |
| Propellers | HQ J40 | HQ J40 |
| FC Side Protection (Translucent Black/Purple) | Yes | Yes |
| O3 Heat Dissipation Protection | Optional | X |
| O4 Heat Dissipation Protection | Optional | Yes |
| Bluetooth App Tuning | Yes | Yes |
| GPS Module | Optional (GPS 18*18mm) | Optional (GPS 18*18mm) |
| Maximum Horizontal Flight Speed | 190km/h | 190km/h |
| Flight Time | 10 minutes (Takeoff weight: 640g at 35km/h) | 9 minutes (Takeoff weight: 710g at 35km/h) |
| Weight | 416g (without battery) | 484g (without battery) |
Recommended Battery
- 6S 1300-1500mAh Lipo (not included)
Notes (as stated)
All values are measured in controlled test environments. Results may vary depending on external conditions, flight style, and firmware version. Actual flight experience may differ.
Dimensions (as labeled)
| XH | 145mm; 226mm; 173mm |
| DC | 139mm; 227mm; 184mm; 174mm |
Whats Included
Mario 5 XH Power Kit Package
- SpeedyBee Mario 5 XH Power Kit *1
- Lens Mounts (Silicone Mount / 19mm TPU Mount) *2
- Transparent Black FC Side Plates (L+R) *1
- M5 Aluminum Alloy Locknuts *4
- Mario 5 Battery Straps *2
- Propeller Set *1
- 4P Soldering Wire for Receiver *1
- O3 Antenna Mount Kit *1
- M2*4 Screws *4
- M2*7 Screws *4
- M1.6*8 Screws *4
Mario 5 DC Power Kit Package
- SpeedyBee Mario 5 DC Power Kit *1
- Lens Mounts (Silicone Mount / 19mm TPU Mount) *2
- Transparent Black FC Side Plates (L+R) *1
- M5 Aluminum Alloy Locknuts *4
- Mario 5 Battery Straps *2
- Propeller Set *1
- 4P Soldering Wire for Receiver *1
- O3 Antenna Mount Kit *1
- M2*4 Screws *4
- M2*7 Screws *4
- M1.6*8 Screws *4
Mario 5 DC O3 Kit Package
- SpeedyBee Mario 5 DC O3 Kit *1
- Propeller Set *1
- Transparent Black FC Side Plates (L+R) *1
- Mario 5 Battery Straps *2
- M5 Aluminum Alloy Locknuts *4
- 4P Soldering Wire for Receiver *1
Applications
- Mario 5 DC/XH platform upgrades and rebuilds
- FPV setup organization and Bluetooth parameter tuning via the SpeedyBee App
- Optional GPS integration (GPS 18*18mm stated)
For compatibility and version selection help (Power Kit vs DC O3 Kit vs DC O4 Kit), contact [email protected] or visit https://rcdrone.top/.
Details

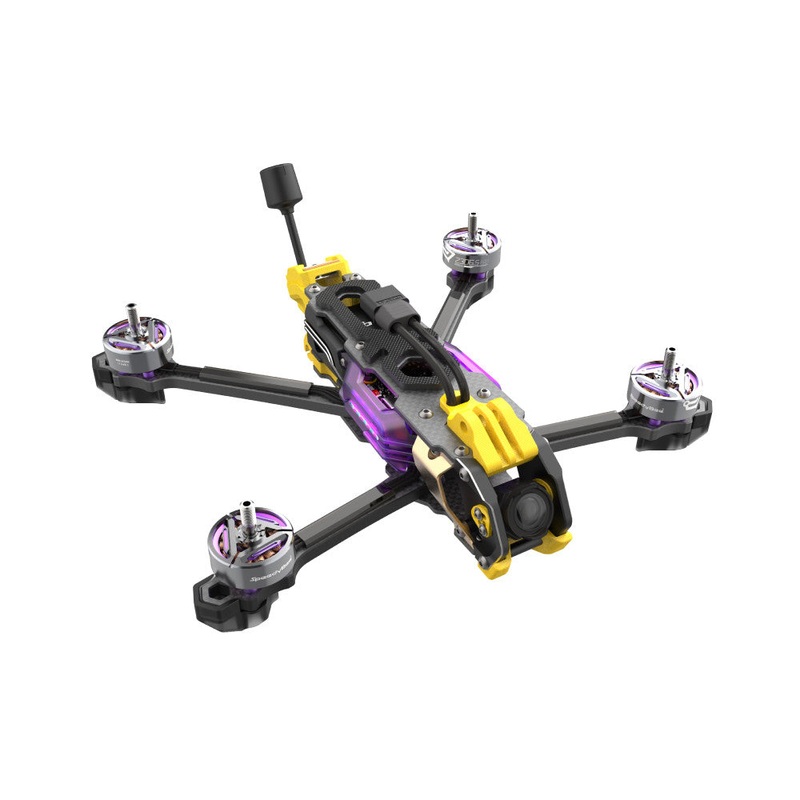

The SpeedyBee Mario 5 DC/XH upgrade kit features a compact quadcopter frame design with a bold yellow and purple color scheme.
The SpeedyBee Mario 5 upgrade kit includes yellow protective mounts and a USBC port for straightforward setup and maintenance.
The SpeedyBee Mario 5 upgrade kit uses a dual-support carbon frame design with reinforced 6mm arms for added rigidity.
The SpeedyBee Mario 5 DC/XH upgrade kit supports a DJI O3 VTX setup and an XH symmetric frame layout for balanced handling.
The SpeedyBee Mario 5 upgrade kit centers around a compact flight controller with a USB-C port and clearly labeled solder pads for clean wiring.
The upgrade kit includes drone motor components designed for a compact FPV-style build.
The SpeedyBee Mario 5 upgrade kit includes a receiver expansion bay and a dedicated 1020mm capacitor storage slot for a cleaner build.
SpeedyBee Mario 5 works with the SpeedyBee mobile app for quick setup and device management from your phone.
Thermal imagery helps visualize how heat spreads across the module during use.
The Mario 5 DC/XH and DC O3 kits share a SpeedyBee F405 V4 flight controller, BLS 55A ESC, and 2306.5 PRO 1880KV motors, with the O3 version adding a DJI O3 Air Unit.
The Mario 5 DC/XH power kit pairs a SpeedyBee F405 V4 flight controller with a 55A ESC, 1880KV motors, and HQ J40 props, with optional 1818mm GPS and Bluetooth app tuning.
Overall frame sizing is provided for both XH and DC configurations, with key lengths marked in millimeters for fit checks.
The SpeedyBee Mario 5 XH upgrade kit includes the frame power kit, lens mounts, FC side plates, battery straps, propellers, wiring, antenna mount, and assorted screws.
The SpeedyBee Mario 5 DC power kit includes lens mounts, FC side plates, battery straps, props, wiring, antenna mount, locknuts, and screws for a refresh build.
The SpeedyBee Mario 5 DC O3 kit includes a quad frame with a propeller set, battery straps, aluminum locknuts, FC side plates, and receiver soldering wire.
The SpeedyBee Mario 5 XH O4 Power Kit (Yellow) includes lens mounts, FC side plates, battery straps, propellers, and assorted mounting hardware.
The SpeedyBee Mario 5 XH O4 Power Kit (Purple) includes props, battery straps, lens mounts, FC side plates, antenna mount parts, wiring, and hardware.
The SpeedyBee Mario 5 DC O4 power kit includes silicone lens mounts, FC side plates, battery straps, a propeller set, receiver soldering wire, an O3 antenna mount, and assorted screws and locknuts.
The SpeedyBee Mario 5 DC/XH upgrade kit includes purple frame parts plus lens mounts, FC side plates, battery straps, prop set, receiver wire, and assorted screws.
The SpeedyBee Mario 5 DC O4 kit includes a propeller set, FC side plates, battery straps, M5 locknuts, and a 4P receiver soldering wire.
The SpeedyBee Mario 5 DC O4 kit includes a purple quad frame, propeller set, FC side plates, two battery straps, M5 locknuts, and a 4-pin receiver wire.
The SpeedyBee Mario 5 upgrade kit features a yellow MARIO mount with a clean side layout and easy-access USB TypeC port.
The SpeedyBee Mario 5 upgrade kit builds into a compact FPV quad with a front camera mount, dual antennas, and integrated LED lighting.
The SpeedyBee Mario 5 upgrade kit integrates cleanly into a compact FPV quad build with a front camera mount and top-mounted antenna.
