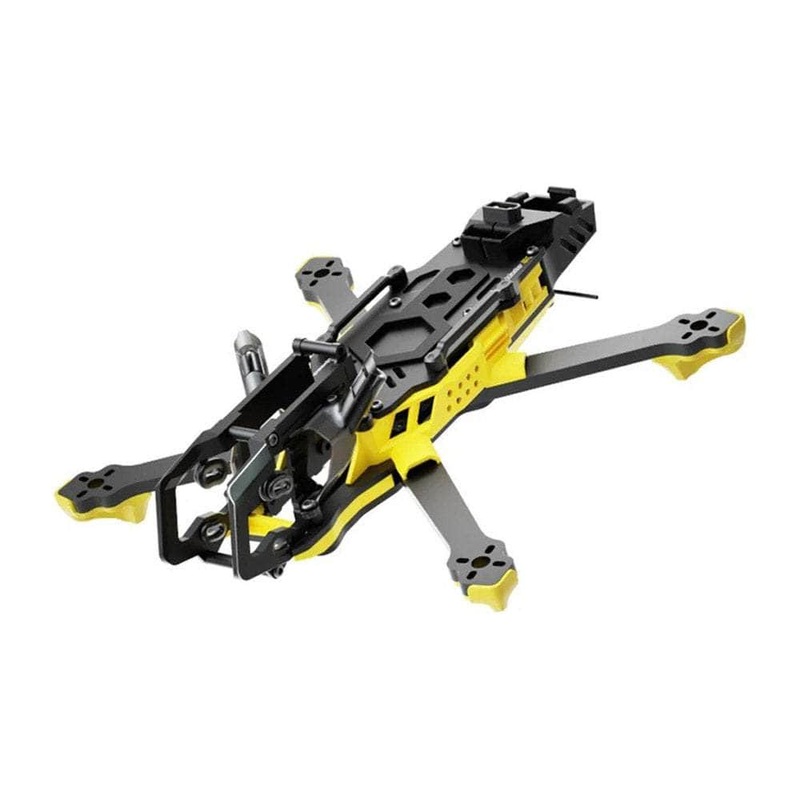

TheSpeedyBee Master3X Modular 3-3.6″ Frame Kitfeatures a refined version of the classic modular design. The standalone VTX unit helps reduce costs and is compatible with the Bee25 and other models, offering greater building flexibility than ever before. Its unique, balanced head lock ensures that the props remain clear during flight, allowing for confident maneuvers without the risk of strikes. The new X-frame design has a low center of gravity, providing stable and sharp control that feels just right!
Check out all ourDJI O4 Compatible Frames, Electronics & Accessoriesandall ourSpeedyBee products!
Features
- Flexible Modular Design – fits O3 Air Unit and O4 Air Unit Pro
- 21mm ultra-thin frame
- Injection Molded pads, side plates, buzzer mount, and receiver bay
- X-Frame build on the Golden Ratio
- Quick-Swap arms for lightning fast repairs
Specifications
- Wheelbase: 171mm
- Top Plate: 2.0mm
- Middle Plate: 2.0mm
- Bottom Plate: 2.0mm
- Arms: 4.0mm
- Camera Pitch: 19/20mm
- Stack Height Supported: 11mm
- Stack Mounting Holes: 25.5 x 25.5mm
- Compatible VTX:
- Injection Molded Head: O3 Air Unit, Link, TX800, TX Ultra; Except for O3, other modules require additional 3D printed parts
- O4 Pro Aluminum alloy head: O4 Pro
- Propeller Size: 3-3.6 Inches
- Motor Mounting Holes: 9-12mm
- Weight: 87+/- 2g (without head)
- Recommended Motor: 1507/1804/2004/2006/2105.5
- Recommended KV: 4S 3000KV-3600KV, 6S 2200-2750KV
- Max Battery Size: 67mm (L) x 31mm (W) x 40mm (H)
- Recommended Battery: 4S LiPo / LiHv 750mAh-1100mAh, 6S 65-850mAh
- GPS Supported Size: 18.1 x 18.1mm
Links
- SpeedyBee Master3X Modular 3-3.6″ Frame Kit Manual
Includes
- 1x SpeedyBee Master3X Modular 3-3.6″ Frame Kit
