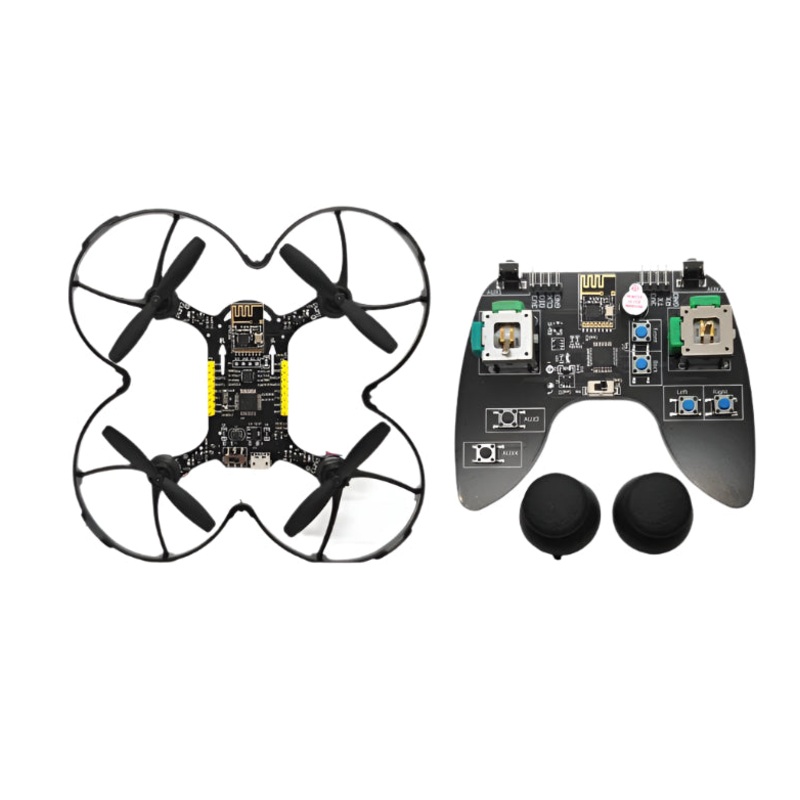

STM32 DIY Drone Kit – Advanced Programmable Open-Source Drone with C Language for Learning, R&D, and Competitions

Overview

The STM32 DIY Drone Kit is a comprehensive open-source platform designed for students, hobbyists, and developers to explore quadcopter flight systems. Powered by the STM32F103C8T6 microcontroller, this kit supports C language programming and advanced flight control algorithms, making it an excellent tool for learning, R&D, and competitions. With robust hardware, a modular design, and comprehensive development resources, this kit is perfect for mastering drone technology and embedded systems.

Key Features

1. Programmable and Open-Source: Fully customizable using C language and STM32 standard libraries, with detailed annotations for ease of learning.
2. High-Performance Hardware:
   • STM32F103C8T6 Microcontroller: 72MHz (main controller) and 48MHz (remote control).
   • MPU6050: Six-axis gyroscope and accelerometer for stable flight.
   • Integrated voltage stabilizers (662K and BL8530) and MOSFET (SI2302) for reliable power management.
3. Modular and Durable Design:
   • Includes a 720 hollow cup motor and reduction gear for high payload stability.
   • Replaceable components for easy maintenance and upgrades.
4. User-Friendly Development Tools:
   • Onboard USB interface for data monitoring and debugging.
   • Open-source program resources, including Keil MDK5 environment, source code, and detailed tutorials.
5. Stable Flight Control:
   • Advanced PID control and Kalman filtering for precise stabilization.
   • Supports forward, backward, left, and right directional controls.

Specifications

Category	Description
Flight Time	8 minutes (without protective frame)
Charging Time	40 minutes
Controller Range	Indoor: 30m; Outdoor: 30m (recommended below three-story buildings)
Motor	720 hollow cup
Propeller Size	55 mm
Flight Controller	STM32F103C8T6 + MPU6050 + NRF24L01
Weight	Lightweight frame for stable flight control.

Kit Contents

1. Quadcopter frame 1
2. Remote control 1 (8-channel, 4 joysticks + 4 buttons with buzzer feedback)
3. Spare propellers 1 set
4. USB battery charger 1
5. 550mAh main battery 1 (additional batteries can be purchased separately)
6. 550mAh remote battery 1
7. Spare 720 hollow cup motor 1

Additional Development Features

• Comprehensive Tutorials: Includes detailed documentation, source code, datasheets, and test videos.
• Real-Time Data Monitoring: Onboard USB supports direct data inspection via upper computer software.
• Optimized Power System: Voltage stabilizers and independent power paths ensure smooth operation without interference.
• Secondary Development Ready: Ideal for advanced R&D, flight algorithm testing, and DIY modifications.

Suggested Operating and Storage Guidelines

• Operating Environment:
  • Recommended for indoor or outdoor use (minimum 30m range).
  • Bright environments for optimal sensor performance.
• Storage Recommendations:
  • Store in a dust-free or plastic-sealed environment.
  • Recharge batteries periodically to prevent damage.
  • Handle optical and laser sensors gently with a microfiber cloth.

Advantages

1. Easy-to-read, beginner-friendly source code.
2. Perfect for DIY customization and experimentation.
3. Stable flight performance with high reliability.

The STM32 DIY Drone Kit combines cutting-edge technology, hands-on learning opportunities, and robust modular components, making it the ideal choice for anyone seeking to master drone flight systems and embedded programming.
