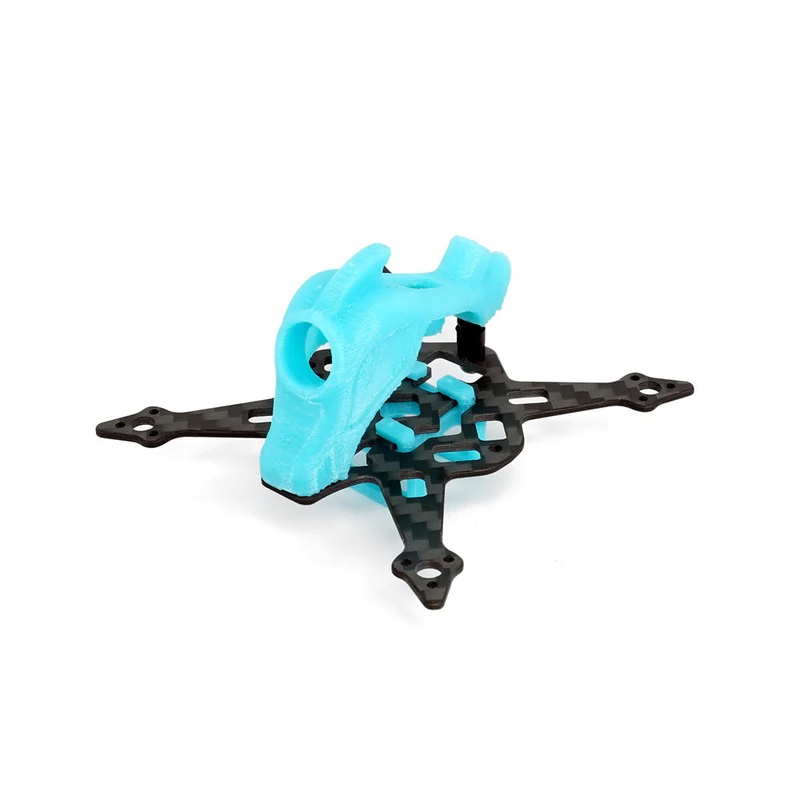

Sub250 NF16 1.6 inch Frame for Nanofly16

Specifications

• Brand Name: Sub250
• Model: NF16
• Wheelbase size: 77mm
• Bottom plate thickness: 1.5mm
• Camera plate thickness: 1.0mm
• FC mounting holes: 25.5mm x 25.5mm
• Motor mounting holes: 3-M1.4-EQS-6.6
• Propeller size: 40mm
• Size:65mm x 65mm x 41mm
• Weight: 8.3g (including 3D print)

Included

1 x 1.5mm bottom plate
1 x 3D printed top cover
1 x 3D printed battery holder
16 x M1.4 x 3 round head Phillips screws
1 x M2 x 6mm round head screw
3 x M2 x 12 round head screws
1 x M2 x 14 round head screw
4 x M2 x 6.6 shock absorbers
8 x M2 x 2 nylon nuts
1 x 1.5mm L-shaped screwdriver
1 x Phillips screwdriver
