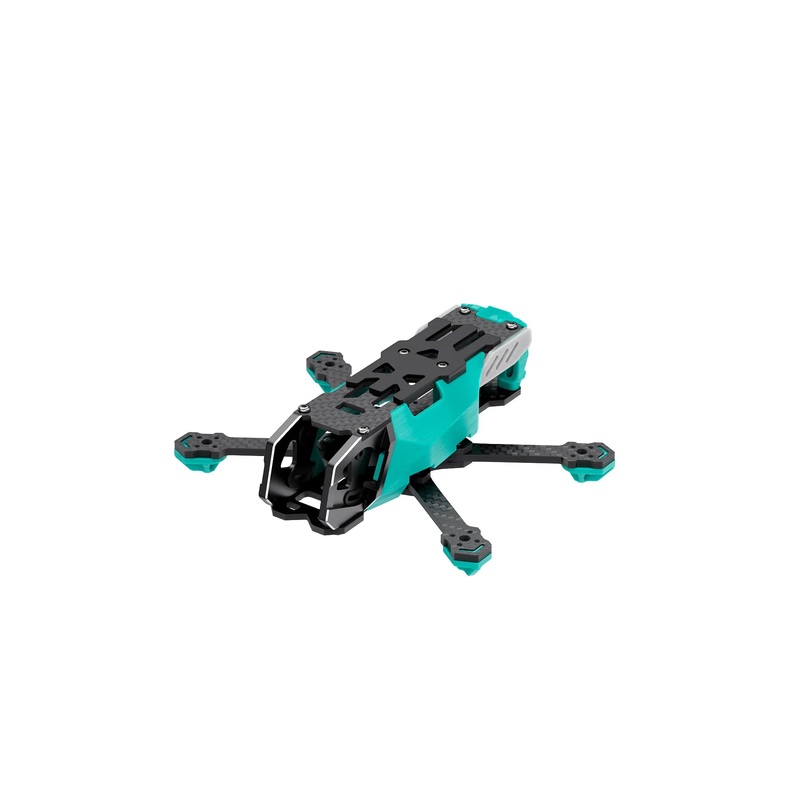

Sub250 Oasisfly30 O4 Frame Kit – Optimized for DJI O4 Air Unit Builds!

Elevate your sub-250 gram FPV build with the Oasisfly30 O4 Frame, specifically engineered to house the O4 Air Unit system! This lightweight 3-inch frame is the perfect starting point for pilots seeking stunning digital HD FPV visuals without exceeding the crucial 250g weight limit.

Built from high-grade carbon fiber , the Oasisfly30 O4 provides the rigidity needed for precise freestyle FPV maneuvers and smooth cinematic flights , all while being optimized for a DJI digital FPV setup. It features dedicated mounting solutions and space considerations for the O3/O4 Air Unit and camera, ensuring a clean and secure installation.

This “Frame Only” kit allows you to select your preferred motors, flight controller, and other electronics to create a truly custom ultralight quadcopter . If you want the best digital FPV experience in a sub-250g 3-inch drone , the Oasisfly30 O4 frame is your ultimate foundation.

Specifications

• Product Name: Oasisfly30 O4 Frame Kit
• Target Drone Class: Sub-250 gram / Ultralight
• FPV System Compatibility: Optimized for DJI O4 Air Unit
• Material: High-Quality Carbon Fiber
• Wheelbase: 135mm/150mm
• Roof thickness : 2mm
• Bottom plate: 2.5mm
• Upper bottom plate: 2.5mm
• Arm thickness : 2.5mm
• Equipment Layer Height: 20mm
• Motor Mounting Holes: 9mm (M2)
• Propellers : 3 inch
• Camera spacing: 20mm
• Flight Controller Holes: 20x20mm / 25x25mm

What’s in the Box

• 1 x Oasisfly30 O4 Carbon Fiber Frame Kit (Top Plate, Bottom Plate, Arms, etc.)
• 1 x Set of Frame Hardware (Screws, Standoffs)

Disclaimer: This is a Frame Only kit. Electronics (DJI Air Unit, Flight Controller, Motors, ESCs, Receiver, Battery, etc.) are not included . Furthermore, please be aware that the specific accessories included in the box (like hardware type/color, TPU part design/color, straps) may vary based on component availability and the current production batch.
