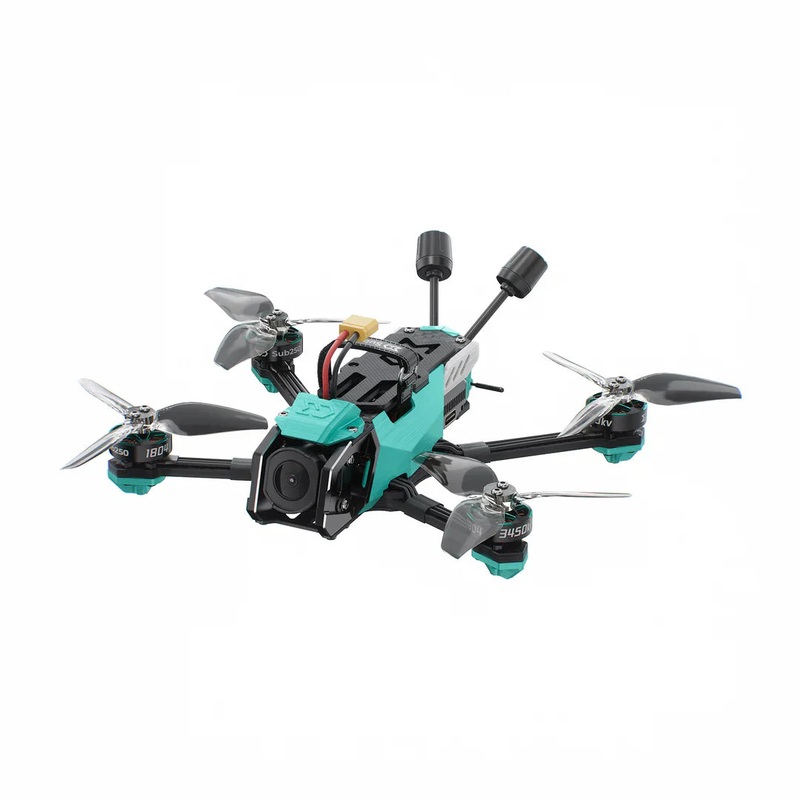

OasisFly35 Max compatible with O4 Pro HD VTX. DC frame + 1804 motors deliver strong thrust and clean, wide visuals. Redfox A3 45A AIO ensures fast response and high efficiency. GPS included for reliable RTH in any environment.
Package Includes:
1 GPS Setup Manual
1 Sub250 RedFox A3 AIO Manual
1 Sub250 Rear Silicone Strap with Zinc-Alloy Buckle (11170 mm)
1 HQ T3.53.53 Propellers (2 CW + 2 CCW)
1 Sub250 Redfox A3 AIO USB-C Adapter Board
1 45 mm Dual-End SH1.0-5P Cable
1 Sub250 Merchandise Sticker
1 Sub250 Drone Series Sticker
1 Battery Anti-Slip Pad
1 Sub250 OasisFly35 Lens Silicone Pad (50)
1 Landing Gear Vibration-Damping Pad (Pack)
1 L-Shaped Hex Wrench (1.5 mm)
2 M2422 Aluminum Textured Standoff (Black)
1 Spare Screw Pack
1 OasisFly35 DC Analog Camera Mount (3D Print)
1 Right Side Plate (Large)
1 Left Side Plate (Large)
1 Right Rear Side Plate
1 Left Rear Side Plate
4x TPU Landing Pads
Features:
- Compatible with Analog / O3 / O4 Pro, switch freely between scenarios to meet varied creative needs.
- DC frame design delivers clean visuals and heightened flight immersion.
- 1804 3450KV motors + 45A AIO ESC ensure fast response for all flight maneuvers.
- Integrated side-plate structure combines aerodynamics and durability, protecting core components for impact-resistant flights.
- GPS standard across all models enables confident flying and RTH, handling complex environments with ease.
Specfications:
Wheelbase: 175mm
Arm Thickness: 3.5mm
Bottom Plate: 1.5mm
Mid Plate: 2.5mm
Top Plate: 2.0 mm
Motor Mounting Pattern: 9*9mm / 12*12mm
VTX: DJI O4 Pro
Motor: 1804 3450KV
FC: RedFox A3 45A AIO
ESC Firmware: BLHeli_32
MCU STM32F722
IMUICM42688-P
Propeller: HQ 3.5*3.5*3
Receiver: ELRS/PNP
GPS: SUB-M10
Recommended Battery: 4S 530mAh
Power Connector: XT30
Body Weight: 194g
Takeoff Weight: 245g (with 4S 530mAh battery)
Max Flight Time: 5min 20s
FC Firmware & Betaflight_4.5.2-SUB250REDFOXF722AIO
