PRODUCT DESCRIPTION
TOP FEATURES:
- Power supply: 1S
- Super light only 5.4g
- MCUSTM32F411
- Gyro: MPU6000
- Support BLHeliSuite programmable
- 5A continuous current

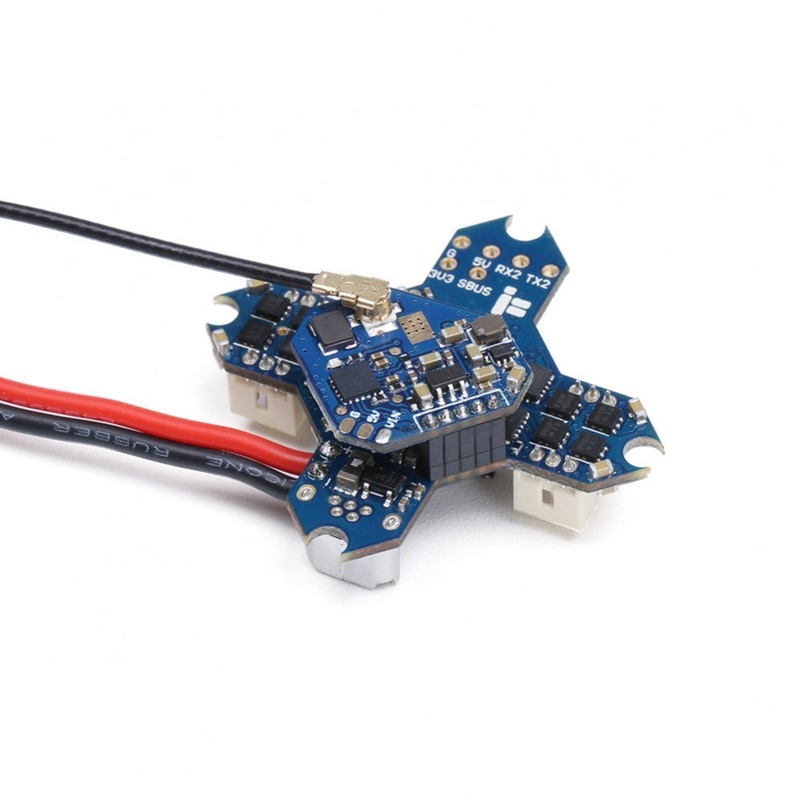

FC // SucceX-1S Whoop AIO Board
Size29*29mm
Mounting pattern:25.5*25.5mm/3mmhalf-hole)
ConnectorMicro-USB
Weight: 5.4g (with power cable, vtx, and vtx antenna)
MCUSTM32F411
GyroMPU6000
Blackboxno
BEC output5V 1.2A
INA padn uart2
Barometerno
FC FirmwareMatekF411RX
ESC FirmwareO-H-30 BLS 16.8
NOTE: F.PORT protocol RX input support, telemetry not supported.
ESC // 5A
Current: 5A continuous and peak 6A
Current scale: 400
Input1S
Signal Support: DshotOneshotMultishot
Current sensoryes
BLHeliBLHeli-S
ESC Telemetryno
VTX
Input voltage: 5V
Channels: 48CH
Power: PIT/25/50mW
Connector:UFL/IPEX
Package Includes:
1 x SucceX-1S 5A Whoop F4 AIO Board (MPU6000)
1x Whip antenna
