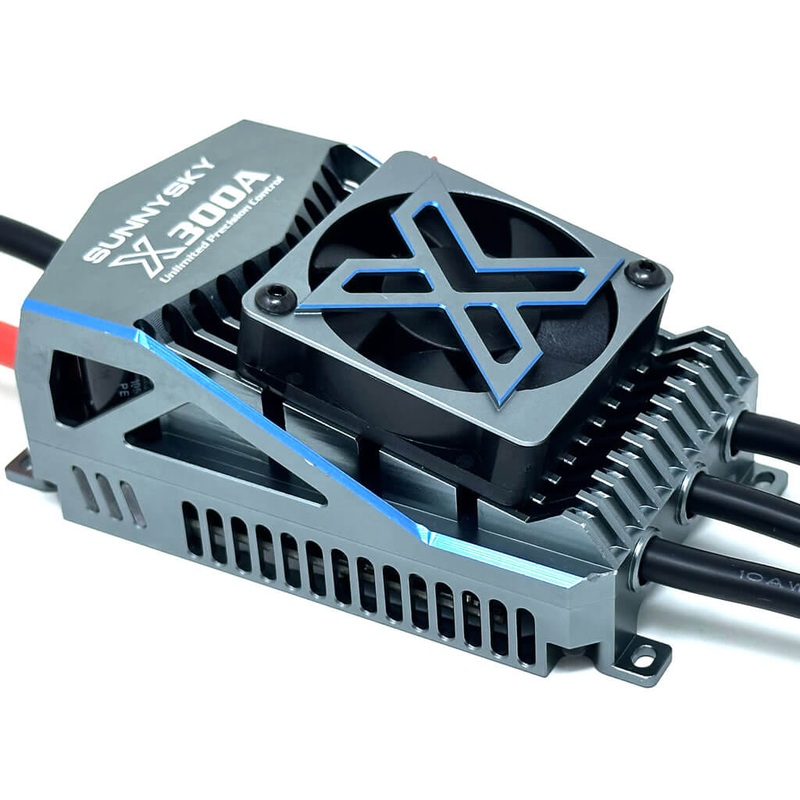

SunnySky 300A Pro ESC : OSHM7030
Features:
- Adopting high performance 32 bit microprocessor with a running frequency of 170MHz, supported much stronger computing abilty and faster running speed.
- Adopting new generation craft on the MOSFET, low heat generation, large instantly withstand current, and high reliability.
- Self-check function:After the ESC is powered on, it will automatically check if the power has a short circuit, if the motor has lost phase, if the throttle is not at zero position, and also check the voltage range.
- The special ESC case design and the unique fan guard structure greatly enhance the ESC heat dissipation performance.
- Equipped with the helicopter speed-control function, the speed sensitivity is adjustable and easy to operate.
- The ESC has a separate programming interface to connect with LCD programming card or Bluetooth module for programming.
- Supportingtelemetry function: Current,Voltage,Temperature, RPM, Throttle and ESC status code.
- Bluetooth module supported (OSHM4118), change the parameter settings, software upgrading, data recording and the operation can be completed via the mobile phone (Apple and Android) APP.
- Multiple protections: Abnormal power-on voltage protection, start up protection, temperature protection, throttle signal loss protection, over load protection, low voltage protection, overcurrent protection.
Specifications:
- Continuous Current : 300 Amps
- Burst Current : 320 Amps
- Input Voltage : 6S-14S Lipo
- Weight : 285g (Excluding all wires)
- BEC Output : 6V~12V adjustable/10A
- Size : 105 x 57 x 45.6
- Programming : LCD Program Card G2 / App(iOS or Android)
Instructions:
- Download the Sunnysky 300a ESC Instruction sheet here.
- Download our addendum to help with wiring and setup here.
Bluetooth Programming:
Get the OMP Bluetooth Module here.
Requires the use of an app to connect to the bluetooth device for ESC programming.
iPhone users – Download the ESC2 app:
- https://apps.apple.com/gb/app/esc2/id6449901550
Android users – Download the Sunnysky app:
- https://play.google.com/store/apps/details?id=com.szroyo.sunnysky
