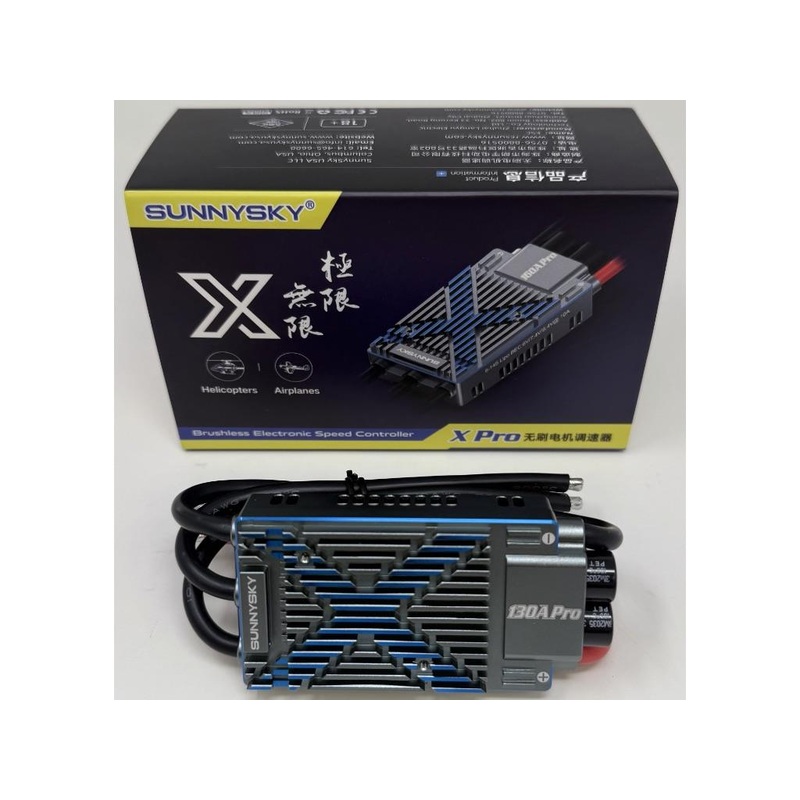

SUNNYSKY X130A HV SBEC ESC : OSHM6028

SUNNYSKY X130A HV SBEC ESC : OSHM6028

Main Features

• Utilises a high-performance 32-Bit processor with a running frequency of up to 170mhz, providing powerful computational capabilities and faster operation speed
• Incorporates power output components (MOSFET) manufactured using the latest technology, resulting in low heat generation, high instanteneous current tollerance and enhanced reliability
• Self-Check function, the speed controller performs self-checking upon power up, including power supply short circuit detection, motor phase detection, throttle zeroing, and voltage range verification
• Features dual side vents and a unique heat dissipation channel design, greatly enhancing the heat dissipation performance of the speed controller
• Offers selection between fixed-wing and helicopter modes
• Equipped with a helicopter governor function, allowing adjustable governor strength for easy operation
• The speed controller has an independent programming interface, which can be used with an LCD programming card or bluetooth module for parameter configuration
• Supports data telemetry, providing real-time transmission of data such as current, voltage, temperature, RPM, throttle, and speed controller status. This data can be viewed in real-time on a mobile app or LCD programming card
• Supports wireless bluetooh paramter adjustment, allowing parameter settings, firmware upgrades, and data logging operations via a mobile app
• Multiple protections are included, abnormal power voltage protection, startup protection, temperature protection, throttle signal loss protection, overload protection, low-voltage protection, and over-current protection.

Specification

• Voltage 6 – 14 Cell
• Continuous Current 130A (Peak 160A)
• Weight Approx 195g
• BEC Output : 6V/7.4V/8.4V Adjustable, 10A
• Size : 88 x 47 x 33.5mm
• Programming Method : LCD Programming Card G2, Android/iOSS App
