Sunnysky X2206 1500KV / 1900KV Brushless Outrunner Motor for 23S RC Quadcopter Multicopter 1900KV

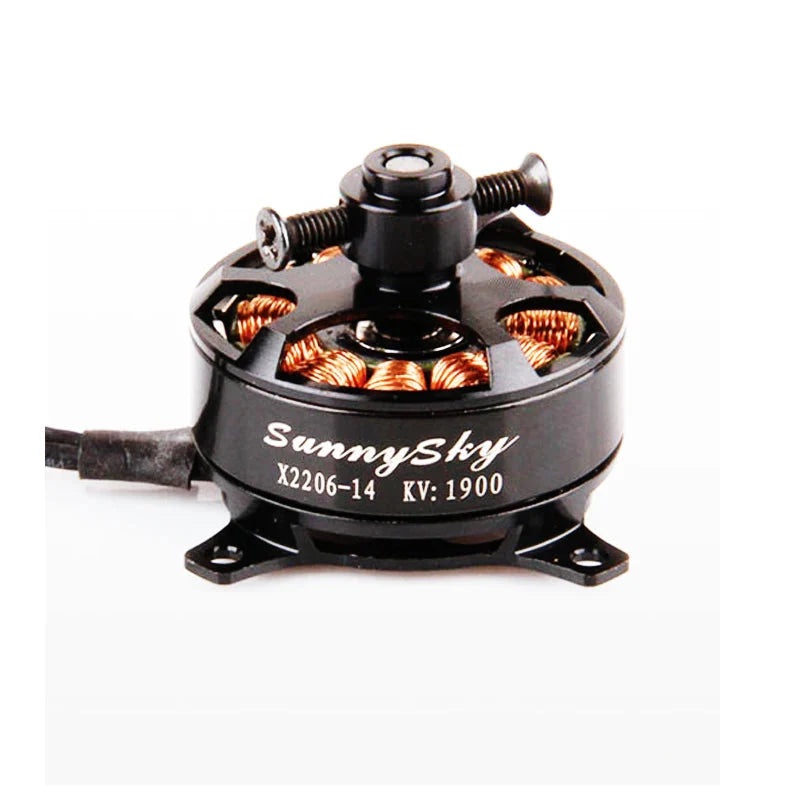

The Sunnysky X2206 series brushless motor is designed for RC quadcopters. multicopters. and fixed-wing 3D planes. delivering excellent thrust. efficiency. and smooth response. Available in 1500KV and 1900KV. it allows pilots to fine-tune their build for either longer flight times or more aggressive performance.

With a 22mm stator diameter. 3mm shaft. and lightweight design under 26g. this motor is ideal for 23S setups and supports a wide range of GWS propellers. It’s a perfect match for both aerobatic and 3D-style flight applications.

X2206 1500KV Specifications

• KV Rating: 1500KV

• Stator Diameter: 22mm

• Stator Thickness: 6mm

• No. of Stator Arms: 12

• No. of Stator Poles: 14

• No-Load Current (10V): 0.3A

• Motor Resistance: 147m

• Max Continuous Current: 13A / 30 seconds

• Max Continuous Power: 150W

• Weight: 25.2g

• Outer Diameter: 27mm

• Shaft Diameter: 3mm

• Body Length: 22.5mm

• Overall Shaft Length: 23.3mm

• Max LiPo Cell: 23S

• Recommended ESC: 18A

• Recommended Propellers: GWS 8043 / 8040 / 9047 / 9050

• Suggested Payload (Aerobatic): 300g (3S with 8040 / 8043)

• Suggested Payload (3D flight): 180g (2S with 9047 / 9050)

X2206 1900KV Specifications

• KV Rating: 1900KV

• Stator Diameter: 22mm

• Stator Thickness: 6mm

• No. of Stator Arms: 12

• No. of Stator Poles: 14

• No-Load Current (10V): 0.6A

• Motor Resistance: 112m

• Max Continuous Current: 13A / 30 seconds

• Max Continuous Power: 150W

• Weight: 25g

• Outer Diameter: 27mm

• Shaft Diameter: 3mm

• Body Length: 22.5mm

• Overall Shaft Length: 23.3mm

• Max LiPo Cell: 23S

• Recommended ESC: 18A

• Recommended Propellers: GWS 8043 / 8040 / 9047 / 9050

• Suggested Payload (Aerobatic): 300g (2S with 8040 / 8043)

• Suggested Payload (3D flight): 180g (2S with 9047 / 9050)

Sunnysky X2206 motor: 22mm stator. 14 poles. 1500KV. 0.3A no-load current. 150W max power. GWS props performance at 7.4V includes thrust. watts. and efficiency across different amperages.

Sunnysky X2206 motor specs: 22mm stator. 1900KV. 150W max power. 13A/30S current. ESC: 18A. Compatible props: GWS 8043. 8040. 9047. 9050. Aerobatic use for 300g-180g models. Detailed performance data included.
