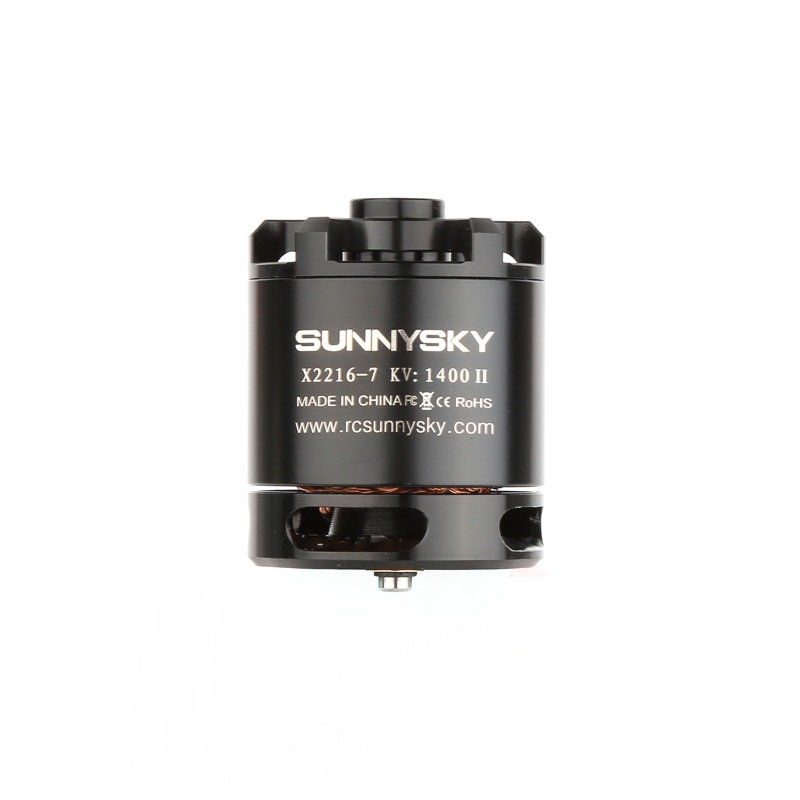

SunnySky X2216 Brushless Motors

SunnySky X2216 Brushless Motors

Original price was: $32.00.Current price is: $19.20.

SKU: R311035830063 Category:

KV880:

Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 16mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length(Without Shaft) 34mm
No.of Rotor Poles 14 Body Length 36.5mm
Motor Kv 880 Max Lipo Cell 2-4S
No-load current 0.5A/10V ESC 30A
Motor Resistance 117m Recommended Prop(inch) APC1047/APC1070/APC1147/APC11*5.5
Max Continuous Current 20A/30s Weightforaerobaticsairplane 720g (4S 9060D7E0)
Max Continuous Power 320W Weightforaerobaticsairplane 400g (3S 1038D7)
Weight

72g

 Weightforaerobaticsairplane 450g (4S 8038\8043\8045\9047)
Weightforaerobaticsairplane 600g (3S 1147)

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC11x4.7 11.1 0.7 100 7.77 12.87001287 54
1.8 200 19.98 10.01001001
3.1 300 34.41 8.718395815
4.4 400 48.84 8.19000819
5.9 500 65.49 7.634753397
7.7 600 85.47 7.02000702
9.7 700 107.67 6.501346708
11.7 800 129.87 6.16000616
14.7 900 163.17 5.515719801
16.8 1000 186.48 5.362505363
17.4 1030 193.14 5.332919126
APC9060 14.8 0.8 100 11.84 8.445945946 45
1.8 200 26.64 7.507507508
3 300 44.4 6.756756757
4.3 400 63.64 6.285355123
5.9 500 87.32 5.726065048
7.7 600 113.96 5.265005265
9.4 700 139.12 5.031627372
11.4 800 168.72 4.741583689
13.6 900 201.28 4.471383148
15.2 1000 224.96 4.445234708
APC1047 11.1 0.7 100 7.77 12.87001287 62
1.9 200 21.09 9.483167378
3.2 300 35.52 8.445945946
4.6 400 51.06 7.833920877
6.4 500 71.04 7.038288288
8.2 600 91.02 6.591957811
10.4 700 115.44 6.063756064
12.6 800 139.86 5.72000572
14.4 890 159.84 5.568068068
14.8 0.6 100 8.88 11.26126126
1.5 200 22.2 9.009009009
2.5 300 37 8.108108108
3.7 400 54.76 7.304601899
5.2 500 76.96 6.496881497
6.8 600 100.64 5.961844197
8.4 700 124.32 5.630630631
10.1 800 149.48 5.35188654
12.3 900 182.04 4.943968359
14.2 1000 210.16 4.758279406
16.2 1100 239.76 4.587921255
21.4 1360 316.72 4.29401364
APC9x4.5 11.1 0.9 100 9.99 10.01001001 43
2.1 200 23.31 8.58000858
3.4 300 37.74 7.949125596
5 400 55.5 7.207207207
6.9 500 76.59 6.528267398
7.9 540 87.69 6.158056791
8.4 570 93.24 6.113256113
14.8 0.7 100 10.36 9.652509653
1.6 200 23.68 8.445945946
2.7 300 39.96 7.507507508
4 400 59.2 6.756756757
5.6 500 82.88 6.032818533
6.9 600 102.12 5.875440658
8.6 700 127.28 5.499685732
10.1 800 149.48 5.35188654
12.2 900 180.56 4.984492689
13 950 192.4 4.937629938

KV1100:

Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 16mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length(Without Shaft) 34mm
No.of Rotor Poles 14 Body Length 36.5mm
Motor Kv 1100 Max Lipo Cell 2-4S
No-load current 0.9A/10V ESC 30A
Motor Resistance 73m Recommended Prop(inch) APC9047/APC9045/APC9060/APC8060/APC1047
Max Continuous Current 24A/30s Weight for training airplane 800g (3S 1047E0)
Max Continuous Power 385W Weight for 3D airplane 650g (3S 1047E0)
Weight

72g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC1047 11.1 0.8 100 8.88 11.26126126 57
1.9 200 21.09 9.483167378
3.1 300 34.41 8.718395815
4.6 400 51.06 7.833920877
6.2 500 68.82 7.265329846
8.3 600 92.13 6.512536633
10.2 700 113.22 6.182653241
12.8 800 142.08 5.630630631
14.7 900 163.17 5.515719801
17.8 1000 197.58 5.061241016
21.9 1180 243.09 4.854169238
APC8060 14.8 1 100 14.8 6.756756757 56
2.3 200 34.04 5.875440658
3.9 300 57.72 5.197505198
5.6 400 82.88 4.826254826
7.6 500 112.48 4.445234708
9.8 600 145.04 4.136789851
12.1 700 179.08 3.908867545
14.8 800 219.04 3.65230095
18.1 900 267.88 3.359713304
20.5 1010 303.4 3.328938695
APC9047 11.1 0.9 100 9.99 10.01001001 48
2 200 22.2 9.009009009
3.5 300 38.85 7.722007722
5.2 400 57.72 6.93000693
7 500 77.7 6.435006435
8.9 600 98.79 6.07348922
11.1 700 123.21 5.681357033
12.4 780 137.64 5.66695728
14.8 0.7 100 10.36 9.652509653
1.6 200 23.68 8.445945946
2.7 300 39.96 7.507507508
4.2 400 62.16 6.435006435
5.4 500 79.92 6.256256256
7.2 600 106.56 5.630630631
8.7 700 128.76 5.436470954
10.6 800 156.88 5.099439062
12.4 900 183.52 4.904097646
14.2 1000 210.16 4.758279406
18.6 1230 275.28 4.468177855
APC9060 11.1 0.9 100 9.99 10.01001001 58
2.3 200 25.53 7.833920877
3.7 300 41.07 7.304601899
5.4 400 59.94 6.673340007
7.4 500 82.14 6.087168249
9.6 600 106.56 5.630630631
12 700 133.2 5.255255255
14.6 800 162.06 4.936443293
16 870 177.6 4.898648649
14.8 0.7 100 10.36 9.652509653
1.8 200 26.64 7.507507508
3 300 44.4 6.756756757
4.4 400 65.12 6.142506143
5.9 500 87.32 5.726065048
7.7 600 113.96 5.265005265
9.7 700 143.56 4.876010031
11.6 800 171.68 4.659832246
13.6 900 201.28 4.471383148
16 1000 236.8 4.222972973
18.4 1100 272.32 4.039365452
21.3 1200 315.24 3.806623525
24.6 1360 364.08 3.73544276
APC9045 11.1 0.9 100 9.99 10.01001001 54
2 200 22.2 9.009009009
3.6 300 39.96 7.507507508
5.2 400 57.72 6.93000693
7.1 500 78.81 6.344372542
8.8 600 97.68 6.142506143
11 700 122.1 5.733005733
13.3 810 147.63 5.486689697
14.8 0.7 100 10.36 9.652509653
1.7 200 25.16 7.949125596
2.7 300 39.96 7.507507508
4.2 400 62.16 6.435006435
5.7 500 84.36 5.926979611
7.3 600 108.04 5.553498704
9 700 133.2 5.255255255
10.6 800 156.88 5.099439062
12.5 900 185 4.864864865
14.6 1000 216.08 4.627915587
16.4 1100 242.72 4.531970995
21 1320 310.8 4.247104247

KV1250:

Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 16mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length(Without Shaft) 34mm
No.of Rotor Poles 14 Body Length 36.5mm
Motor Kv 1250 Max Lipo Cell 2-4S
No-load current 1.1A/10V ESC 40A
Motor Resistance 63m Recommended Prop(inch) APC9047/APC9045/APC9060/APC8060/APC1047
Max Continuous Current 28A/30s Weight for aerobatics airplane 720g (3S 9060\9047\9045) (4S 8060)
Max Continuous Power 392W Weight for aerobatics airplane 650g (3S 9047D7)
Weight

72g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC1047 11.1 0.7 100 7.77 12.87001287 58
1.8 200 19.98 10.01001001
3.1 300 34.41 8.718395815
4.5 400 49.95 8.008008008
6.5 500 72.15 6.93000693
8.3 600 92.13 6.512536633
10.5 700 116.55 6.006006006
12.7 800 140.97 5.674966305
15.6 900 173.16 5.197505198
18.1 1000 200.91 4.977353044
20.8 1100 230.88 4.764379764
27 1270 299.7 4.237570904
29 1350 321.9 4.193849021
APC9060 11.1 1 100 11.1 9.009009009 42
2.3 200 25.53 7.833920877
3.7 300 41.07 7.304601899
5.5 400 61.05 6.552006552
7.5 500 83.25 6.006006006
9.6 600 106.56 5.630630631
11.6 700 128.76 5.436470954
14.2 800 157.62 5.075498033
16.7 900 185.37 4.855154556
20.8 1040 230.88 4.504504505
APC9045 11.1 0.9 100 9.99 10.01001001 42
2.1 200 23.31 8.58000858
3.7 300 41.07 7.304601899
5.3 400 58.83 6.799252082
7 500 77.7 6.435006435
9 600 99.9 6.006006006
10.9 700 120.99 5.785602116
13.3 800 147.63 5.418952787
17.5 980 194.25 5.045045045
APC8060 11.1 1.1 100 12.21 8.19000819 57
2.9 200 32.19 6.213109661
4.8 300 53.28 5.630630631
7 400 77.7 5.148005148
9.3 500 103.23 4.843553231
11.8 600 130.98 4.580852038
14.7 700 163.17 4.29000429
17 780 188.7 4.13354531
14.8 0.9 100 13.32 7.507507508
2.2 200 32.56 6.142506143
3.9 300 57.72 5.197505198
5.6 400 82.88 4.826254826
7.5 500 111 4.504504505
9.6 600 142.08 4.222972973
12.3 700 182.04 3.845308723
14.7 800 217.56 3.677146534
17.2 900 254.56 3.535512256
20.3 1000 300.44 3.328451604
26.5 1210 392.2 3.085160632
APC9047 11.1 0.8 100 8.88 11.26126126 45
2.1 200 23.31 8.58000858
3.5 300 38.85 7.722007722
5.1 400 56.61 7.065889419
6.9 500 76.59 6.528267398
8.8 600 97.68 6.142506143
10.7 700 118.77 5.893744212
13.3 800 147.63 5.418952787
16.1 950 178.71 5.315874881

KV1400:

Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 16mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length(Without Shaft) 34mm
No.of Rotor Poles 14 Body Length 36.5mm
Motor Kv 1250 Max Lipo Cell 2-4S
No-load current 1.1A/10V ESC 40A
Motor Resistance 63m Recommended Prop(inch) APC9047/APC9045/APC9060/APC8060/APC1047
Max Continuous Current 28A/30s Weight for aerobatics airplane 720g (3S 9060\9047\9045) (4S 8060)
Max Continuous Power 392W Weight for aerobatics airplane 650g (3S 9047D7)
Weight

72g

Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC1047 11.1 0.7 100 7.77 12.87001287 58
1.8 200 19.98 10.01001001
3.1 300 34.41 8.718395815
4.5 400 49.95 8.008008008
6.5 500 72.15 6.93000693
8.3 600 92.13 6.512536633
10.5 700 116.55 6.006006006
12.7 800 140.97 5.674966305
15.6 900 173.16 5.197505198
18.1 1000 200.91 4.977353044
20.8 1100 230.88 4.764379764
27 1270 299.7 4.237570904
29 1350 321.9 4.193849021
APC9060 11.1 1 100 11.1 9.009009009 42
2.3 200 25.53 7.833920877
3.7 300 41.07 7.304601899
5.5 400 61.05 6.552006552
7.5 500 83.25 6.006006006
9.6 600 106.56 5.630630631
11.6 700 128.76 5.436470954
14.2 800 157.62 5.075498033
16.7 900 185.37 4.855154556
20.8 1040 230.88 4.504504505
APC9045 11.1 0.9 100 9.99 10.01001001 42
2.1 200
