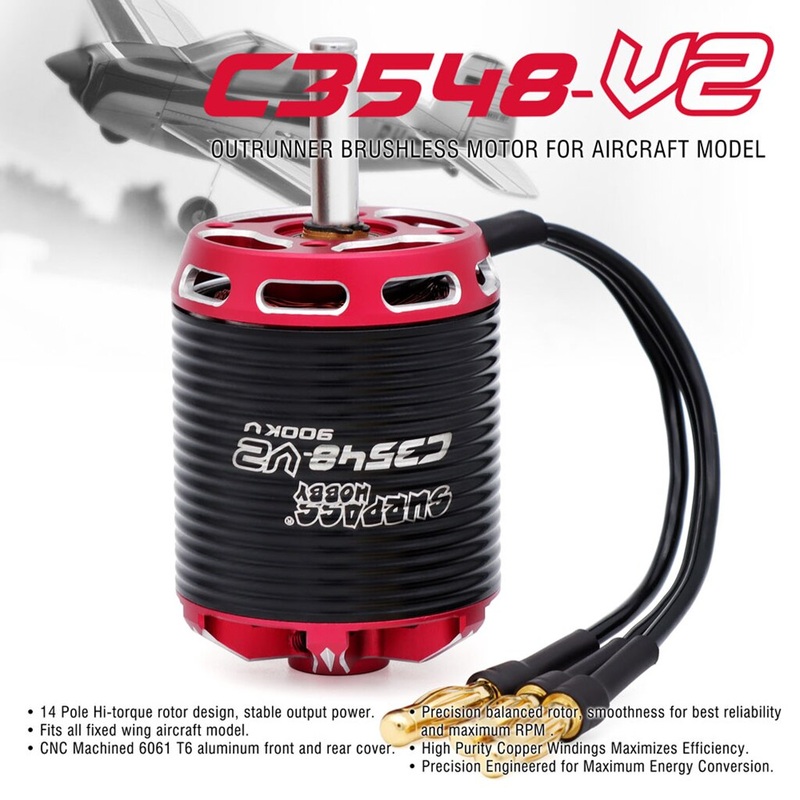

Surpass Hobby C2822 C2826 C2830 C2834 C2838 C3530 C3536 C3542 C3548 V2 2-3S 2-4S 14-pole Outrunner Brushless Motor

Feature:
14 Pole Hi-torque rotor design, stable output power.
Fits all fixed wing aircraft model.
CNC Machined 6061 T6 aluminum front and rear cover.
Precision balanced rotor, smoothness for best relabilit and maximum RPM.
High Purity Copper Windings Maximizes Efficiency.
Precision Engineered for Maximum Energy Conversion.

C2822-V2 KV1400 Brushless Motor:
KV(rpm/volt): 1400;
Max Watts(W): 160;
Voltage Range(V): 7-15;
Max Current(A): 13;
Rotor Poles: 14;
No load Current(A): 0.4;
Resistance(): 0.307;
Motor Size(mm): 28×20;
Stator Size(mm): 22×04;
Weight(g): 30;
Propeller(inch): 7.5×3.5/8×4/9×5;

C2822-V2 KV1200 Brushless Motor:
KV(rpm/volt): 1200;
Max Watts(W): 140;
Voltage Range(V): 7-15;
Max Current(A): 11;
Rotor Poles: 14;
No load Current(A): 0.3;
Resistance(): 0.368;
Motor Size(mm): 28×20;
Stator Size(mm): 22×04;
Weight(g): 30;
Propeller(inch): 8×5/8×6/7×5;

C2822-V2 KV1300 Brushless Motor:
KV(rpm/volt): 1300;
Max Watts(W): 150;
Voltage Range(V): 7-15;
Max Current(A): 12;
Rotor Poles: 14;
No load Current(A): 0.4;
Resistance(): 0.335;
Motor Size(mm): 28×20;
Stator Size(mm): 22×04;
Weight(g): 30;
Propeller(inch): 7×5/8×5/8×6;

C2822-V2 KV2300 Brushless Motor:
KV(rpm/volt): 2300;
Max Watts(W): 180;
Voltage Range(V): 7-15;
Max Current(A): 18;
Rotor Poles: 14;
No load Current(A): 0.5;
Resistance(): 0.125;
Motor Size(mm): 28×20;
Stator Size(mm): 22×04;
Weight(g): 30;
Propeller(inch): 7×5/8×5/8×6

C2826-V2 KV1900 Brushless Motor:
KV(rpm/volt): 1900;
Max Watts(W): 250;
Voltage Range(V): 7-12;
Max Current(A): 27;
Rotor Poles: 14;
No load Current(A): 1.2;
Resistance(): 0.063;
Motor Size(mm): 28×24;
Stator Size(mm): 22×08;
Weight(g): 45;
Propeller(inch): 8×3.8/8×4/7×5;

C2826-V2 KV1350 Brushless Motor:
KV(rpm/volt): 1350;
Max Watts(W): 240;
Voltage Range(V): 7-12;
Max Current(A): 24;
Rotor Poles: 14;
No load Current(A): 0.8;
Resistance(): 0.097;
Motor Size(mm): 28×24;
Stator Size(mm): 22×08;
Weight(g): 45;
Propeller(inch): 8×3.8/7×4;

C2826-V2 KV1200 Brushless Motor:
KV(rpm/volt): 1200;
Max Watts(W): 230;
Voltage Range(V): 7-12;
Max Current(A): 22;
Rotor Poles: 14;
No load Current(A): 0.8;
Resistance(): 0.135;
Motor Size(mm): 28×24;
Stator Size(mm): 22×08;
Weight(g): 45;
Propeller(inch): 7×5/8×4/8×5;

C2826-V2 KV1000 Brushless Motor:
KV(rpm/volt): 1000;
Max Watts(W): 220;
Voltage Range(V): 7-12;
Max Current(A): 20;
Rotor Poles: 14;
No load Current(A): 0.7;
Resistance(): 0.256;
Motor Size(mm): 28×24;
Stator Size(mm): 22×08;
Weight(g): 45;
Propeller(inch): 8×5/8×7/9×4.7;

C2830-V2 KV2200 Brushless Motor:
KV(rpm/volt): 2200;
Max Watts(W): 340;
Voltage Range(V): 7-12;
Max Current(A): 28;
Rotor Poles: 14;
No load Current(A): 1.4;
Resistance(): 0.035;
Motor Size(mm): 28×28;
Stator Size(mm): 22×12;
Weight(g): 57;
Propeller(inch): 9×6/10×5/10×6;

C2830-V2 KV1300 Brushless Motor:
KV(rpm/volt): 1300;
Max Watts(W): 300;
Voltage Range(V): 7-12;
Max Current(A): 25;
Rotor Poles: 14;
No load Current(A): 1.2;
Resistance(): 0.085;
Motor Size(mm): 28×28;
Stator Size(mm): 22×12;
Weight(g): 57;
Propeller(inch): 9×6/10×5/10×6;

C2830-V2 KV1000 Brushless Motor:
KV(rpm/volt): 1000;
Max Watts(W): 260;
Voltage Range(V): 7-15;
Max Current(A): 21;
Rotor Poles: 14;
No load Current(A): 0.9;
Resistance(): 0.152;
Motor Size(mm): 28×28;
Stator Size(mm): 22×12;
Weight(g): 57;
Propeller(inch): 9×4.5/10×6/10×5;

C2830-V2 KV850 Brushless Motor:
KV(rpm/volt): 850;
Max Watts(W): 240;
Voltage Range(V): 7-15;
Max Current(A): 19;
Rotor Poles: 14;
No load Current(A): 0.6;
Resistance(): 0.189;
Motor Size(mm): 28×28;
Stator Size(mm): 22×12;
Weight(g): 57;
Propeller(inch): 11×5.5/9×6/10×4;

C2834-V2 KV1120 Brushless Motor:
KV(rpm/volt): 1120;
Max Watts(W): 380;
Voltage Range(V): 7-15;
Max Current(A): 26;
Rotor Poles: 14;
No load Current(A): 1.2;
Resistance(): 0.068;
Motor Size(mm): 28×32;
Stator Size(mm): 22×16;
Weight(g): 67;
Propeller(inch): 9×6/10×4/11×5.5;

C2834-V2 KV880 Brushless Motor:
KV(rpm/volt): 880;
Max Watts(W): 340;
Voltage Range(V): 7-18;
Max Current(A): 22;
Rotor Poles: 14;
No load Current(A): 0.8;
Resistance(): 0.108;
Motor Size(mm): 28×32;
Stator Size(mm): 22×16;
Weight(g): 67;
Propeller(inch): 11×8.5/10×7/12×6;

C2834-V2 KV750 Brushless Motor:
KV(rpm/volt): 750;
Max Watts(W): 300;
Voltage Range(V): 7-18;
Max Current(A): 19;
Rotor Poles: 14;
No load Current(A): 0.6;
Resistance(): 0.152;
Motor Size(mm): 28×32;
Stator Size(mm): 22×16;
Weight(g): 67;
Propeller(inch): 11×8.5/11×10/12×6;

C2838-V2 KV1200 Brushless Motor:
KV(rpm/volt): 1200;
Max Watts(W): 420;
Voltage Range(V): 7-16;
Max Current(A): 28;
Rotor Poles: 14;
No load Current(A): 0.9;
Resistance(): 0.045;
Motor Size(mm): 27.8×34;
Stator Size(mm): 22×20;
Weight(g): 74.5;
Propeller(inch): 9×6/10×4/10×6;

C2838-V2 KV1000 Brushless Motor:
KV(rpm/volt): 1000;
Max Watts(W): 400;
Voltage Range(V): 7-18;
Max Current(A): 25;
Rotor Poles: 14;
No load Current(A): 0.7;
Resistance(): 0.075;
Motor Size(mm): 27.8×34;
Stator Size(mm): 22×20;
Weight(g): 74.5;
Propeller(inch): 11×5.5/11×8.5/10×7;

C2838-V2 KV800 Brushless Motor:
KV(rpm/volt): 800;
Max Watts(W): 380;
Voltage Range(V): 7-18;
Max Current(A): 23;
Rotor Poles: 14;
No load Current(A): 0.5;
Resistance(): 0.115;
Motor Size(mm): 27.8×34;
Stator Size(mm): 22×20;
Weight(g): 74.5;
Propeller(inch): 10×5/11×5/11×8.5;

C2838-V2 KV600 Brushless Motor:
KV(rpm/volt): 600;
Max Watts(W): 360;
Voltage Range(V): 7-20;
Max Current(A): 20;
Rotor Poles: 14;
No load Current(A): 0.4;
Resistance(): 0.162;
Motor Size(mm): 27.8×34;
Stator Size(mm): 22×20;
Weight(g): 74.5;
Propeller(inch): 10×7/11×8.5/12×5;

C3530-V2 KV1700 Brushless Motor:
KV(rpm/volt): 1700;
Max Watts(W): 420;
Voltage Range(V): 7-15;
Max Current(A): 42;
Rotor Poles: 14;
No load Current(A): 1.8;
Resistance(): 0.041;
Motor Size(mm): 35×28.5;
Stator Size(mm): 28×08;
Weight(g): 78;
Propeller(inch): 7×4/6×6;

C3530-V2 KV1400 Brushless Motor:
KV(rpm/volt): 1400;
Max Watts(W): 350;
Voltage Range(V): 7-15;
Max Current(A): 35;
Rotor Poles: 14;
No load Current(A): 1.2;
Resistance(): 0.059;
Motor Size(mm): 35×28.5;
Stator Size(mm): 28×08;
Weight(g): 78;
Propeller(inch): 9×4.5/8×4/7×7;

C3530-V2 KV1100 Brushless Motor:
KV(rpm/volt): 1100;
Max Watts(W): 310;
Voltage Range(V): 7-15;
Max Current(A): 30;
Rotor Poles: 14;
No load Current(A): 0.7;
Resistance(): 0.113;
Motor Size(mm): 35×28.5;
Stator Size(mm): 28×08;
Weight(g): 78;
Propeller(inch): 9×5/10×4.7;

C3536-V2 KV1500 Brushless Motor:
KV(rpm/volt): 1500;
Max Watts(W): 750;
Voltage Range(V): 7-15;
Max Current(A): 55;
Rotor Poles: 14;
No load Current(A): 2.5;
Resistance(): 0.025;
Motor Size(mm): 35×34.5;
Stator Size(mm): 28×14;
Weight(g): 109;
Propeller(inch): 8×4/9×6/10×6;

C3536-V2 KV1300 Brushless Motor:
KV(rpm/volt): 1300;
Max Watts(W): 680;
Voltage Range(V): 7-15;
Max Current(A): 50;
Rotor Poles: 14;
No load Current(A): 1.8;
Resistance(): 0.038;
Motor Size(mm): 35×34.5;
Stator Size(mm): 28×14;
Weight(g): 109;
Propeller(inch): 9×4.5/10×4.7/9×5;

C3536-V2 KV1050 Brushless Motor:
KV(rpm/volt): 1050;
Max Watts(W): 500;
Voltage Range(V): 7-15;
Max Current(A): 38;
Rotor Poles: 14;
No load Current(A): 1.5;
Resistance(): 0.055;
Motor Size(mm): 35×34.5;
Stator Size(mm): 28×14;
Weight(g): 109;
Propeller(inch): 9.5×5/10×6/11×5;

C3536-V2 KV910 Brushless Motor:
KV(rpm/volt): 910;
Max Watts(W): 400;
Voltage Range(V): 7-15;
Max Current(A): 30;
Rotor Poles: 14;
No load Current(A): 1.2;
Resistance(): 0.072;
Motor Size(mm): 35×34.5;
Stator Size(mm): 28×14;
Weight(g): 109;
Propeller(inch): 10×7/11×8.5/12×5;

C3542-V2 KV1450 Brushless Motor:
KV(rpm/volt): 1450;
Max Watts(W): 1050;
Voltage Range(V): 7-15;
Max Current(A): 78;
Rotor Poles: 14;
No load Current(A): 2.3;
Resistance(): 0.021;
Motor Size(mm): 35×40.5;
Stator Size(mm): 28×20;
Weight(g): 132;
Propeller(inch): 12×5/11×7/13×8;

C3542-V2 KV1250 Brushless Motor:
KV(rpm/volt): 1250;
Max Watts(W): 850;
Voltage Range(V): 7-15;
Max Current(A): 65;
Rotor Poles: 14;
No load Current(A): 2.1;
Resistance(): 0.026;
Motor Size(mm): 35×40.5;
Stator Size(mm): 28×20;
Weight(g): 132;
Propeller(inch): 8×7/9×5/10×4;

C3542-V2 KV1000 Brushless Motor:
KV(rpm/volt): 1000;
Max Watts(W): 750;
Voltage Range(V): 7-15;
Max Current(A): 55;
Rotor Poles: 14;
No load Current(A): 2;
Resistance(): 0.039;
Motor Size(mm): 35×40.5;
Stator Size(mm): 28×20;
Weight(g): 132;
Propeller(inch): 10×6/12×6.5/13×8;

C3548-V2 KV1100 Brushless Motor:
KV(rpm/volt): 1100;
Max Watts(W): 1100;
Voltage Range(V): 7-15;
Max Current(A): 72;
Rotor Poles: 14;
No load Current(A): 2.6;
Resistance(): 0.028;
Motor Size(mm): 35×46.5;
Stator Size(mm): 28×26;
Weight(g): 172;
Propeller(inch): 12×6/12×6.5/13×8;

C3548-V2 KV900 Brushless Motor:
KV(rpm/volt): 900;
Max Watts(W): 1000;
Voltage Range(V): 7-18;
Max Current(A): 60;
Rotor Poles: 14;
No load Current(A): 2.2;
Resistance(): 0.033;
Motor Size(mm): 35×46.5;
Stator Size(mm): 28×26;
Weight(g): 172;
Propeller(inch): 11×8/13×6/14×7;

C3548-V2 KV790 Brushless Motor:
KV(rpm/volt): 790;
Max Watts(W): 840;
Voltage Range(V): 10-20;
Max Current(A): 50;
Rotor Poles: 14;
No load Current(A): 2;
Resistance(): 0.051;
Motor Size(mm): 35×46.5;
Stator Size(mm): 28×26;
Weight(g): 172;
Propeller(inch): 12×7/13×7/14×7;
