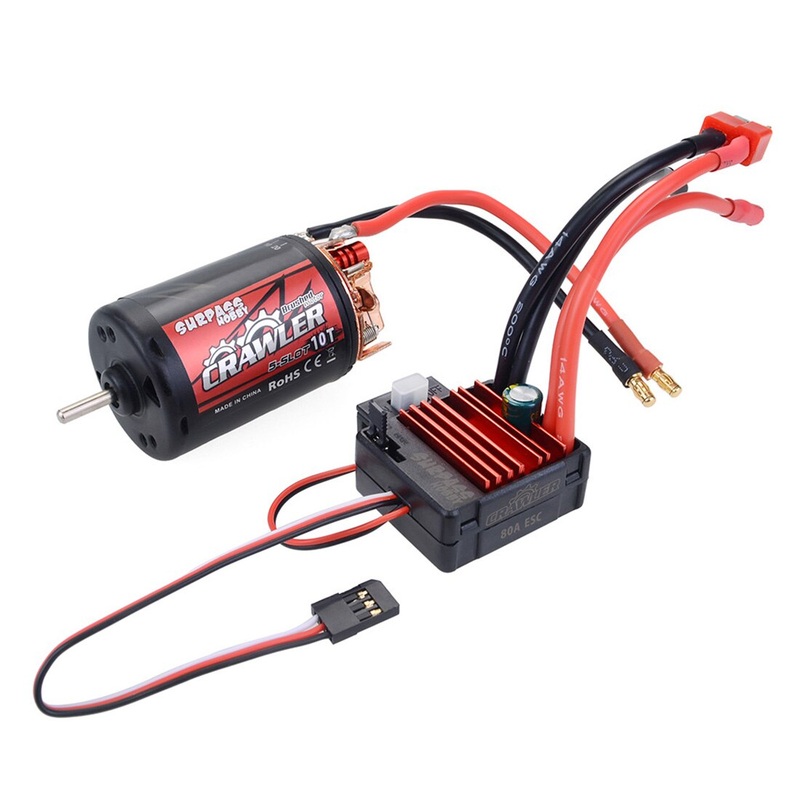

Surpass Hobby Waterproof 5-Slot 550 10T 12T 16T 20T Motor 80A ESC for TRAXXAS Cars For 1/10 1/12 RC Car Boat 5-Slot 550 10T

Specification:

Basic parameters of the motor:

Voltage: 7.4V-11.1V

Motor shaft: 3.175mm

Flat position: 0.4mm

Shaft length: 12.5mm

Compatible with most brands such as HSP HPI tamiya FS Kyosho TRAXXAS Yokomo WLtoys

5-Slot10T RPM:18500 IO:2.6A 3.175*12mm (14AWG red and black wire with 3.5 male connector)

5-Slot12T RPM:13400 IO:1.4A 3.175*12mm (14AWG red and black wire with 3.5 male head)

Basic parameters of 80A ESC:

Cont. Current/ Burst Current: 80A/360A.

Resistance: 0.0014ohm

Motor Type: brushed motor.

Suitable Car: 1/10 Crawler Brushed.

Battery: 2~3 cells Lipo, 4~9 cells NiMH.

BEC: 6V/2A (switch mode).

Dimension: 32mm*37mm*18mm
