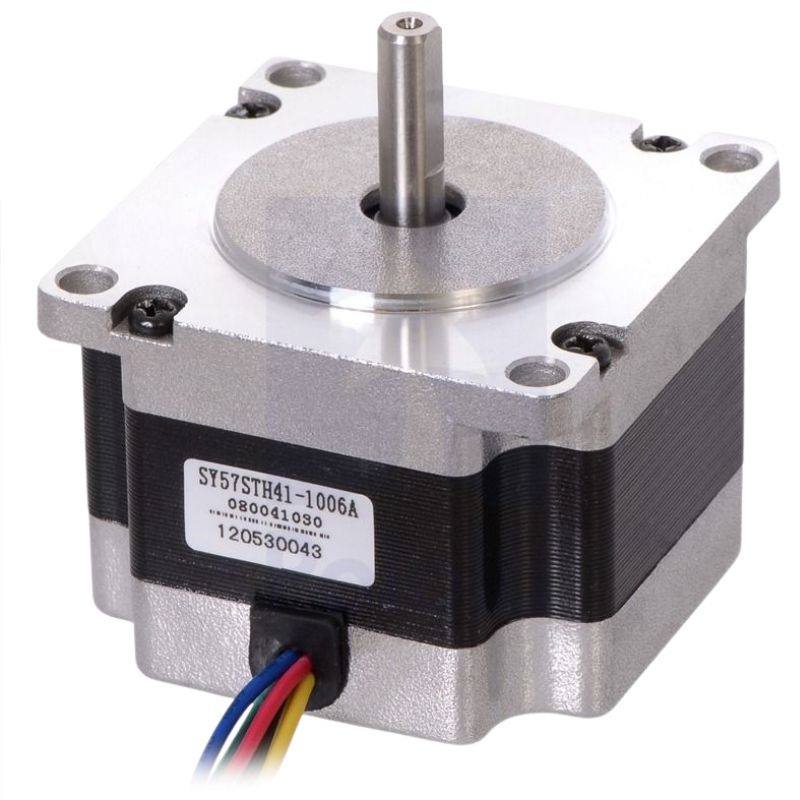

SY57STH41-1006A – MOTOR STEPPER 5.7V 1A W/WIRE 200 STEPS/REV 4KG-CM NEMA23

Stepper Motor: Unipolar/Bipolar 200 Steps/Rev 5741mm 5.7V 1 A/Phase

This NEMA 23size hybrid stepping motor can be used as a unipolar or bipolar stepper motor and has a 1.8 step angle (200 steps/revolution). Each phase draws 1 A at 5.7 V allowing for a holding torque of 4 kgcm (55 ozin).

This hightorque hybrid stepping motor has a 1.8 step angle (200 steps/revolution). Each phase draws 1 A at 5.7 V allowing for a holding torque of 4 kgcm (55 ozin). The motor has six colorcoded wires terminated with bare leads that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver all six leads are used. When used with a bipolar stepper motor driver the centertap yellow and white wires can be left disconnected (the redblue pair gives access to one coil and the blackgreen pair gives access to the other coil). We recommend using it as a bipolar stepper motor and controlling it with one of our bipolar stepper motor drivers or one of our Tic Stepper Motor Controllers. In particular the Tics make control easy because they support six different interfaces (USB TTL serial IC RC analog voltages and quadrature encoder) and are configurable over USB with our free configuration utility.
