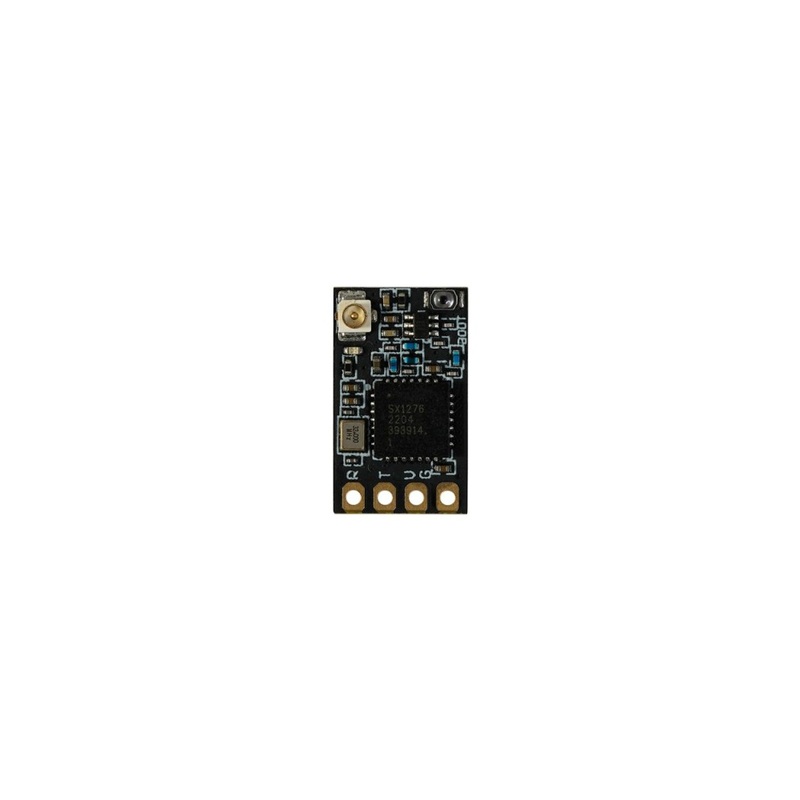

T Antenna 915/868MHz Receiver For ELRS Protocol

For use with 915MHz ELRS Transmitters. Not compatible with 2.4GHz ELRS.

Foxeer had dipped their toe into the ELRS game with their new receivers. This version includes T shaped antenna giving fantastic ELRS reception.

Specifications

• Processor: ESP8285+SX1276
• Work Frequency: 915/868MHz
• Flash Frequency: 25~500Hz
• Telemetry RF Power: 50mW Max
• FW Version: 3.2.0
• Firmware Target: Foxeer 900 RX
• Bus Interface: CRSF
• Indicator: Blue LED
• Antenna Connector: U.fl
• Input Voltage: 4-5.5V
• Weight: 1g (without antenna)
• Dimensions: 11×18.5mm

Includes

• 1x T Antenna 915/868MHz Receiver For ELRS Protocol
• 1x Antenna
• 1x Heat Shrink Tube
• 1x Cable
• 1x 4-Pin Header

Wiring Diagram
