Overview
The T-Motol A6 is a Modular Propulsion System designed for 5L quadcopter or 10L hexacopter agricultural drones, combining an A6 KV180 motor, 14S FOC 80A ESC, and MF2311P propeller set.
Key Features
- Recommended load capacity (liquid): 5L (agriculture quadcopter drone) / 10L (agriculture hexacopter drone)
- Recommended take-off weight: 14~20kg (quadcopter) / 21~30kg (hexacopter)
- Silicone protective cover with two color options: Fluorescent Orange, Industrial Gray
- ESC control method: PWM/CAN; protocols: DRONE CAN, UAV CAN, CUBE CAN
For purchasing support, compatibility checks, or after-sales service, contact [email protected] or visit https://rcdrone.top/.
Specifications
| Model No. | A6 KV180 |
| Tube Size | 30mm |
| Setup | A6 (Motor) + FOC 80A (ESC) + MF2311P (Propellers) |
| Recommended Battery | 12~14S (LiPo) |
| Rated Thrust | 3.5~5kg |
| Efficiency at Rated Thrust | 7.09g/W (5kg) |
| Max Thrust | 12kg |
| IP Rating | IPX6 |
| Recommended Ambient Temperature | -30~50C |
| Wire Length | 110010mm |
| Wire Material / Gauge / Color | Power Wires: 14#AWG Red & Black; Signal Wires: 5P Teflon |
| Weight | 6952%g (Incl. Wires+Prop) |
Motor Specs
| Stator Size | 62*15mm |
| KV | 180 |
ESC Specs
| Throttle Range | 1100~1940us (Fixed) |
| Max Voltage | 61V |
| Peak Current (For A Short Time) | 80A (OpenEnvironment AndTemperature60C) |
| Protocol | DRONE CAN, UAV CAN, CUBE CAN |
| Control Method | PWM/CAN |
| BEC | NO |
Prop Specs
| Model No. | MF2311P-M (Polymer Folding) |
| Length | 23 Inch (585mm) |
Whats Included
- A6 Modular Propulsion System x1 (Excl. Carbon Tube)
- Parts Bag x1
Details
The T-Motor A6 modular propulsion unit combines a wide propeller with a compact motor housing for clean, straightforward mounting.

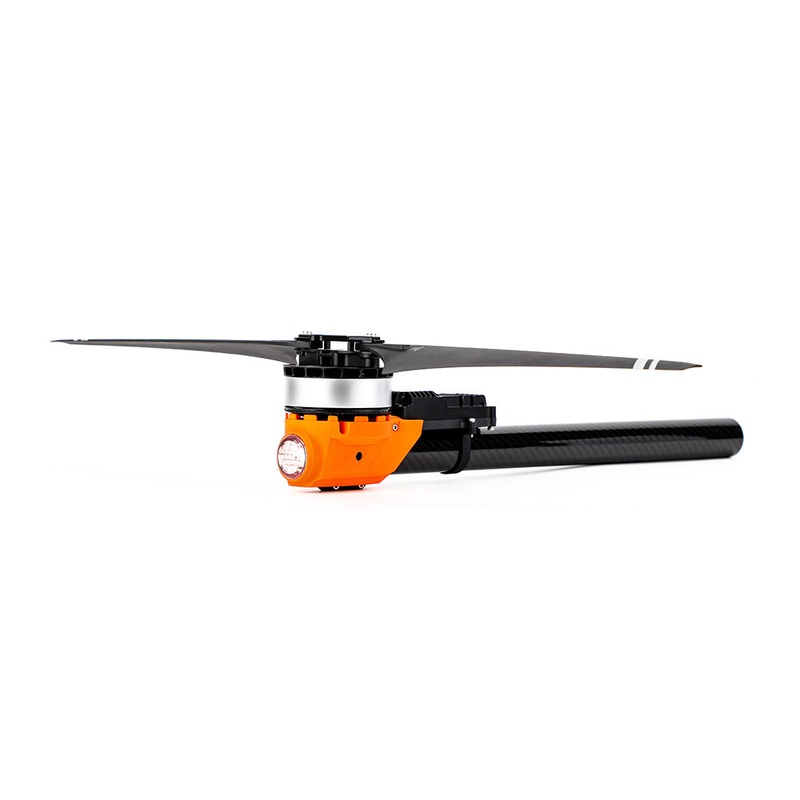

The T-Motor A6 modular propulsion unit combines a large motor and propeller with a protective orange housing for clean integration on a UAV arm.
A dimensioned layout with M3 shoulder mounting and 3.2 pin/rivet holes helps confirm fitment for a 23-inch (585 mm) propeller setup.
Performance curves plot thrust against torque, RPM, current, efficiency, and power to help with propulsion system tuning.
The A6 modular propulsion unit includes a foldable propeller, integrated motor/ESC assembly, and a parts bag with strap and mounting screws for installation.
