| Parameter | Specification |
|---|---|
| Product Name | T-Motor ALPHA 80A 12S ESC |
| ESC Type | Brushless ESC with FOC |
| Category | Professional UAV / Multirotor ESC |
| Continuous Current | 80 A |
| Peak Current (10 s) | 100 A |
| Input Voltage | 12S – 18-52.2V |
| BEC | None (External BEC required) |
| Throttle Signal Range | 1100 1940 s |
| Throttle Refresh Rate | 500 Hz |
| Throttle Response Speed | ~300 ms |
| Standby Current | 50 mA |
| Dimensions | ~88.5 36.6 19 mm |
| Weight (with cables) | ~110 g |
| Power Input Wire | 12 AWG Silicone Wire |
| Motor Output Wires | 14 AWG Silicone Wire |
| Signal Cable Type | Flat PVC multi-core |
| Cooling Method | Natural air cooling |
| Operating Temperature | 20 C to 65 C |
| Typical Applications | Heavy-lift drones, industrial UAVs, cinema drones, mapping platforms |
Sale!

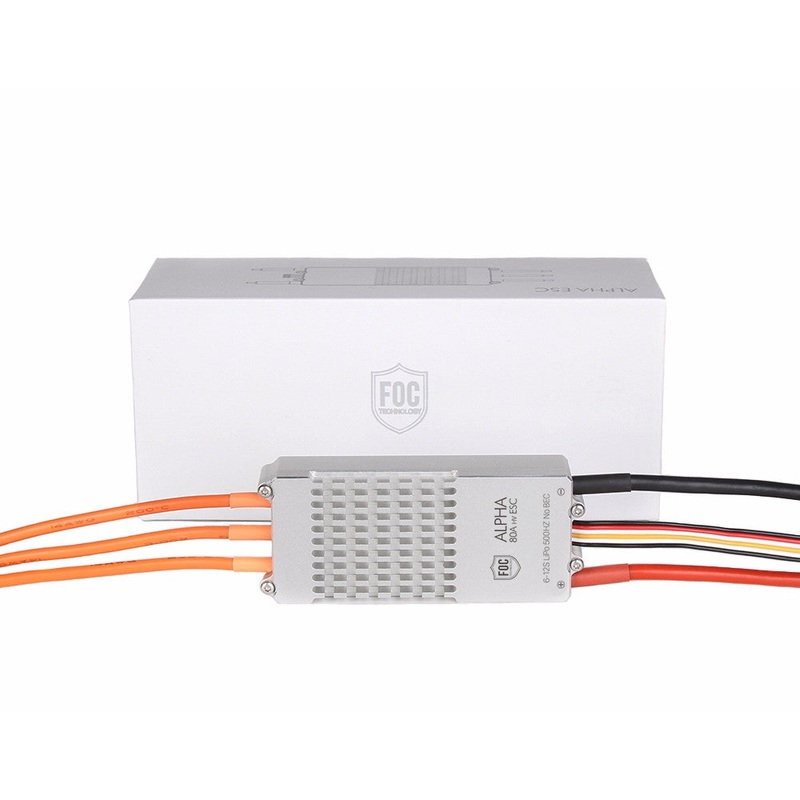

T-Motor ALPHA 80A 12S Multi-Rotor Drone ESC
Original price was: $148.99.$74.50Current price is: $74.50.
