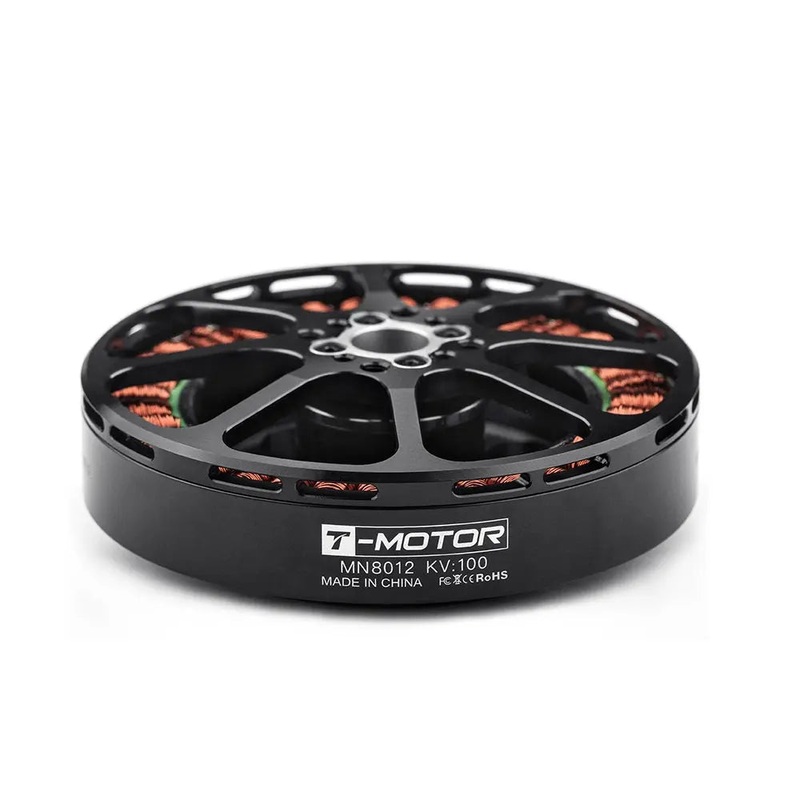

T Motor Antigravity MN8012 KV100 is a brushless drone motor that has high power, a fast reaction speed, and stable operation. MN8012 series Brushless motor from tiger motors provides high efficiency, low power consumption, and energy-saving performance
Features:
Ultra-light, high efficiency
Max.Thrust:11.8kg,
Motor Weight:351g,
Power Ratio:34
220C high-temperature resistance Wires
Anti-rust treatment Stator with 180C high temperature-resisting coatings
36N42 Configuration
12S Rated Voltage(Lipo)
Coil Insulation Test 1000V/Ss
Rotor Dynamic Balance Standard 15Mg
IP35 Protection
Package Includes:
1 T Motor Antigravity MN8012 KV100
Specification:-
| Internal Resistance |
85m |
|---|---|
| Rated KV |
100 |
| Idle Current (24V) |
1.0A |
| Peak Current (180s) |
40A |
| Max. Power (180s) |
1873W |
| Motor Size |
87.8 * 29mm |
| Shaft Diameter |
IN12mm Bearing Imported 6901ZZ |
| Magnet Level |
180t high-temperature resistance |
| Cable Size |
16AWG*90mm Copper |
| Weight |
351 g (with Cable) |
| Shipping Weight | 0.6 kg |
| Shipping Dimensions | 15 10 6 cm |
