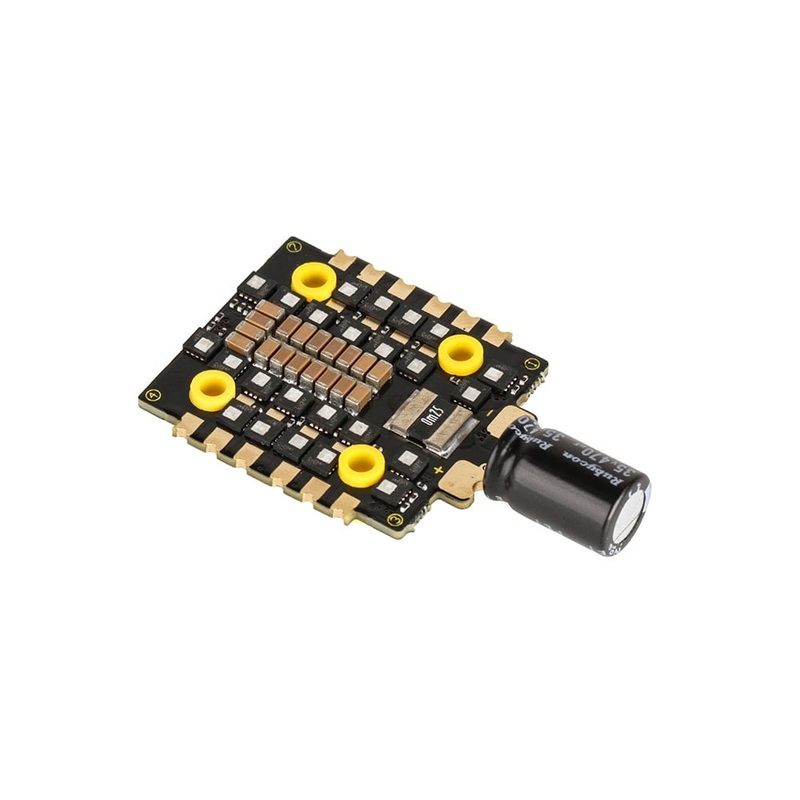

T-Motor F45A Mini BLheli32 4in1 ESC (3-6S)

This is a 20×20 mountable 4in1 ESC from Tmotor that packs a lot into a such a small form factor. It uses high quality MOSFET that support a continuous 45A current, with bursts to 45A coupled to a 32bit microcontroller to run Blheli_32 firmware. The PCB layout has also been designed to help protect the electronic components in an impact. A perfect match for the T-motor F722 Mini flight controller.

Specifications

• Brand: T-Motor
• Item Name: MINI F45A 4IN1 ESC
• Input Voltage: 3~6S
• ESC Firmware: BLHeli32
• Telemetry: Support
• Mounting pitch: 20*20mm
• Weight: 9.2g
• Betaflight galvanometer ratio: 200

Includes

• 1 x F45A MINI 4IN1 ESC

Connection diagram and F45A Mini Pinout
