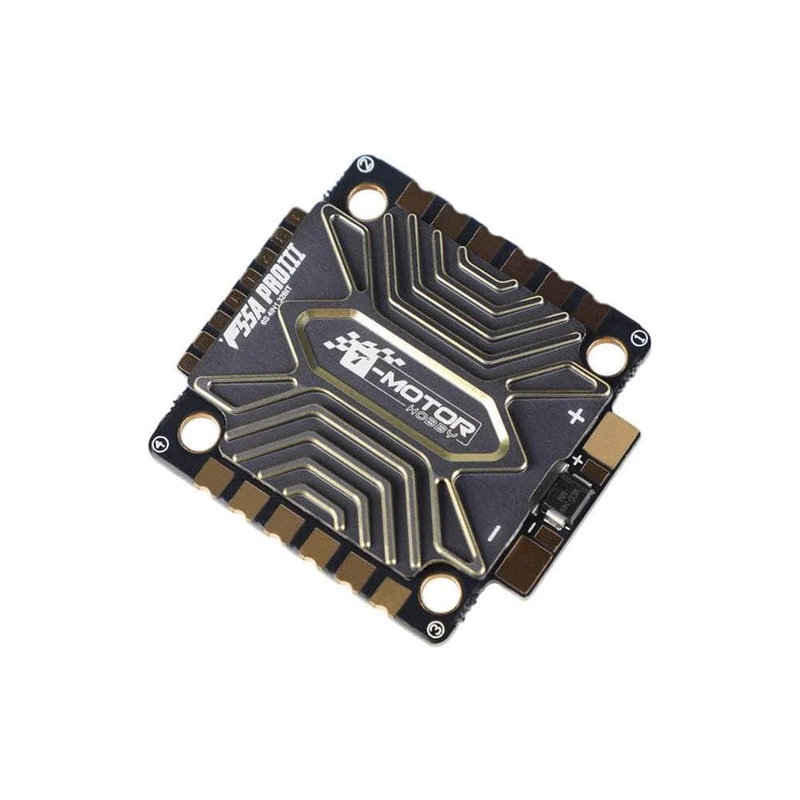

T-Motor F55A Pro III 55A 3-8S AM32 4-in-1 ESC – 30×30

Experience superior performance with the T-Motor F55A PRO III 4-in-1 ESC. Featuring TPHR8504 MOSFETs and the STM32G071 microcontroller, it offers exceptional stability and durability with TVS protection and premium materials for high-intensity flights. Supporting 3-8S and a PWM range of 16-128kHz, its designed for optimal motor compatibility, while its dual heat sink ensures effective cooling. The F55A Pro III 4-in-1 ESC, equipped with TPHR8504 MOSFETs and STM32G071 MCU, redefines stability and durability, ideal for demanding flights.

Features

• TPHR8504 MOSFETs & STM32G071 MCU
• Adjustable PWM Frequency Range
• Efficient Heat Management
• Wide Voltage Support
• Top-Tier Performance
• Enhanced Durability

Specifications

• Mounting Hole: 30.5*30.5mm/M3
• Peak Current: 65A (10 Seconds)
• Amperage Meter: 200
• Size: 44*40*7.5mm
• Telemetry: Support
• Voltage: 3S-8S Lipo
• Firmware: AM32
• Weight: 17.8g
• Current: 55A
• BEC: No

Includes

• 1x T-Motor F55A Pro III 55A 3-8S AM32 4-in-1 ESC – 30×30
• 1x 61mm Double-Ended SH1.0-10P Silicone Cable
• 1x 61mm Single Head SH1.0-10P Silicone Cable
• 4x High Yellow Shock Absorbing Washer
• 4x Low Yellow Shock Absorbing Washer
• 1x Capacitor
