Product Description
UPDATE THE LATEST FIRMWARE IN WIRELESS STATE
It only takes 2 minutes to finish the firmware upgrade when the flight controller is connected to WiFi.
BUILT-IN WIFI&BLUETOOTH
With a smartphone, users can quickly access their firmware configuration whenever and wherever possible, fine-tune PID parameters adjust motor direction, and check Blackbox data and other parameters.
UARTS:6 sets
UART1:VTX/TX
UART2:Receiver(CRSF/SBUS/iBUS/DSMX/R9MM)UART3:GPS
UART4:ESC telemetry/RX
UART5:Vacancy
UART6:Vacancy
Built-in SpeedyBee Wi-Fi&Bluetooth

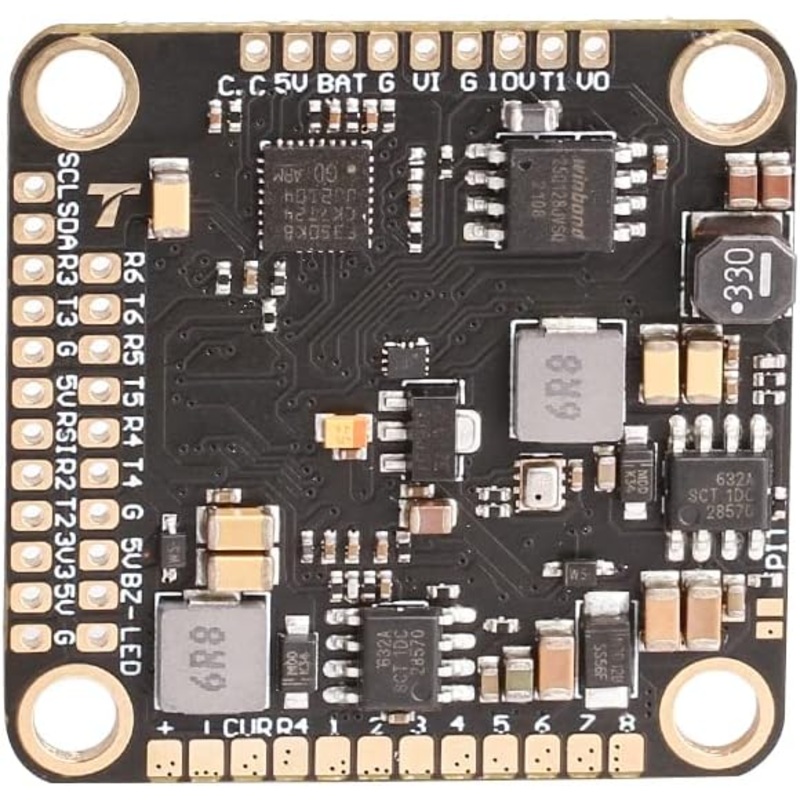

TMOTOR F7 V2 (BetaFlight/INAV)
- BetaFlight tuning wirelessly
- Flash firmware wirelessly
- Analyze Black-box data wirelessly
- Set motor directions on BLHell32/S wirelessly
Specification
| MCU: | STM32F722 RET6 |
| IMU: | MPU6000 |
| Barometer: | BMP280 |
| Input Voltage: | 3-8S Lipo |
| BEC Output: | 10V/2A 5V/3A |
| Built-in | OSD(AT7456) |
| Built-in | 16Mb Flash for data logging |
| ESC signal: | M1 – M8 |
| Size: | 37mmX37mmX7.5mm |
| Installing Hole:3 | 0.5X30.5mm/M3 |
| USB: | Type-C |
| Weight: | 8.1g |
