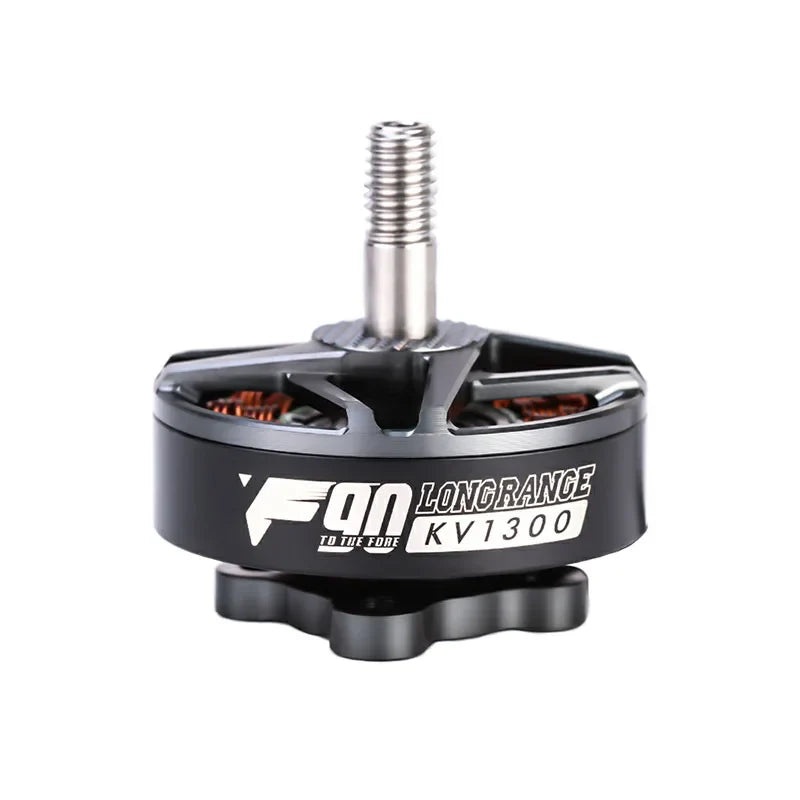

T-MOTOR F90 2806.5 1300KV 1500KV 1950KV Brushless Motor 5-6S for 5-7 Inch Long Range FPV Freestyle Drones 1 PC 1300kv

Overview

The T-MOTOR F90 2806.5 is purpose-built for long range. freestyle. and cinematic FPV drones. With a robust 2806.5 stator and available in 1300KV. 1500KV. and 1950KV options. this motor delivers high torque. smooth response. and consistent output on 5-6S LiPo setups. Whether you’re building a 7-inch cruiser or a powerful 5-inch cinewhoop. the F90 series offers the flexibility and thrust you need for extended and stable flight.

Specifications

Model	KV	Voltage	Max Power (60s)	Peak Current (60s)	Idle Current (10V)	Internal Resistance	Weight (with wire)
F90-1300KV	1300	5-6S	1059W	45.1A	0.95A	76m	46.6g
F90-1500KV	1500	5-6S	1089W	47.1A	1.2A	62m	46.7g
F90-1950KV	1950	5-6S	1302W	53.6A	1.5A	45m	46.6g

Common Specs:

• Motor Size: 33.4 34.7mm

• Shaft Diameter: 4mm

• Lead Wire: 20AWG 230mm

• Configuration: 12N14P

• Mounting Pattern: 1919mm (M3)

Performance Highlights

F90 1300KV with GF51466-3 5S prop:

• Max thrust: 1784g @ 100% throttle

• Efficiency: up to 3.73g/W

F90 1950KV with T6143-3 5S prop:

• Max thrust: 2136g

• Max power: 1089W

• Efficiency: 1.96g/W

F90 1950KV with GF51466-3 6S prop:

• Max thrust: 2075g

• Max power: 1301W

• Efficiency: 1.59g/W

Note: Motor temperature readings were taken after 1-minute full-throttle runtime under controlled conditions.

Recommended Use

• 1300KV: Ideal for 78 inch long-range drones

• 1500KV: Suited for 67 inch freestyle builds

• 1950KV: Optimized for 56 inch high-thrust cinewhoops and racing drones

What’s Included

• F90 Brushless Motor 1

• Mounting Accessories (Screws. Nut. Anti-slip pads) 1 set

• T-MOTOR KV1300. KV1500. KV1950 specs: 33.4×34.7mm size. 4mm shaft. 20#AWG 230mm leads. Weights 46.6-46.7g. resistances 45-76m. Power ranges 1059-1302W. currents up to 53.6A.

F90 KV1950 motor performance data. including oil gate percentage. pull force (g). voltage (V). current (A). RPM. power (W). efficiency (G/W). and motor temperature (C) at various operating conditions.

T-MOTOR KV1300 and KV1500 specs: 46.6g/46.7g weight. 33.4*34.7mm dimensions. 20#AWG 230mm lead. 4mm shaft. 76m/62m resistance. 5-6S voltage. 0.95A/1.2A idle current. 45.1A/47.4A peak current. 1059W/1089W max power.

Test report for T-MOTOR F90 KV1300 with HQ 70403 propeller. Data includes throttle. thrust. voltage. current. RPM. power. efficiency. and operating temperature at various settings. Ambient temperature: 27C.

T-MOTOR GF 7042 performance data at various throttle levels. including thrust. voltage. current. RPM. power. efficiency. and operating temperature. Ambient temperature is 27C. Benchtest results for reference.

T-MOTOR HQ 70403 and F90 KV1500 GF 7042 performance data at various percentages. including voltage. current. power. RPM. torque. and efficiency at 27C ambient temperature.

T6143 motor performance data at various throttle percentages. including voltage. current. RPM. power. efficiency. and temperature. Ambient temperature: 27C. Benchtest reference values for motor surface temperature at 100% throttle after 1 minute.

T-MOTOR product includes Motor KV1300 and Parts Bag. Check contents before use. Contact support for missing items.

F90 motor offers longer flight time. weighs 41g. efficient KV1300/KV1500.

T-MOTOR design for FPV Cinelike X8 build. easy to carry heavier camera.

T-MOTOR excels for mountain surfing. coastline. and cinematic flight experiences.
