Overview

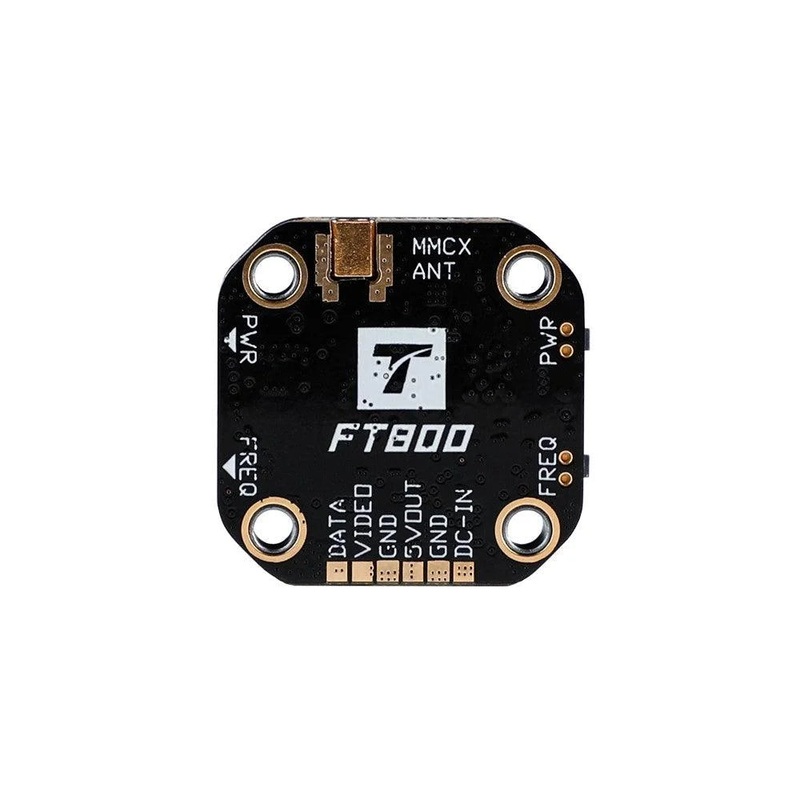

T-Motor FT800 is a 5.8GHz VTX designed for FPV freestyle and demanding flying locations, providing selectable RF output power and a compact 20x20mm mounting format.
Key Features
- Aluminum radiator case for rapid heat conduction and dissipation
- High power output (up to 800mW) for high quality image transmission
- Power consistency on multiple frequencies; supports flying with more people without worries
- Powering on does not interfere with other frequencies
- Smartaudio2.1 control protocol
- MMCX antenna connector; power/video via 4 Pin JST / solder pads
For customer service and installation support, contact [email protected].
Specifications
| Product | T-Motor FT800 |
| Type | VTX |
| Frequency | 5.8GHz |
| Channels | 48CH |
| Bands | 6 |
| Channels by band | 8 |
| RF output power | PIT / 25 / 200 / 500 / 800mW |
| Input voltage | 7-36V |
| Output voltage | 5V |
| Protocol | Smartaudio2.1 |
| Antenna connector | MMCX |
| Power/Video connection | 4 Pin JST / Solder Pads |
| Mounting | 20x20mm m3 |
| Dimensions | 20*20mm / 3.1mm |
| Weight | 7.58g |
Frequency Table (6 bands x 8 channels)
| BAND_A (A) | 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725 |
| BAND_B (B) | 5733, 5752, 5771, 5790, 5999, 5828, 5847, 5866 |
| BAND_E (E) | 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945 |
| AIRWAVE (F) | 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880 |
| RACEBAND (R) | 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917 |
| LOWRACE (L) | 5362, 5399, 5436, 5473, 5510, 5547, 5584, 5621 |
Power Level Values
- Values: 14 / 23 / 27 / 29
- Labels: 25 / 200 / 500 / 800
Whats Included
- 1x T-Motor FT800 20×20 25-800mW 5.8GHz VTX – MMCX
- 1x SMA to MMCX Pigtail
- 1x Wiring Harness
Applications
- FPV freestyle builds
- Multirotor setups requiring a compact 20x20mm VTX with selectable output power
Manuals
- T-Motor FT800 VTX Table
Details
The T-Motor FT800 5.8GHz VTX features an aluminum radiator-style case designed to help manage heat during operation.
T-Motor FT800 5.8GHz VTX is designed so powering on does not blast other frequencies.
FT800 5.8GHz VTX messaging emphasizes power consistency across multiple frequencies for clearer flying in group sessions.
The T-Motor FT800 5.8GHz VTX supports up to 800mW power output for FPV video transmission.
The T-Motor FT800 5.8GHz VTX supports 48 channels, SmartAudio 2.1 control, 736V input, and PIT/25/200/500/800mW power levels.
