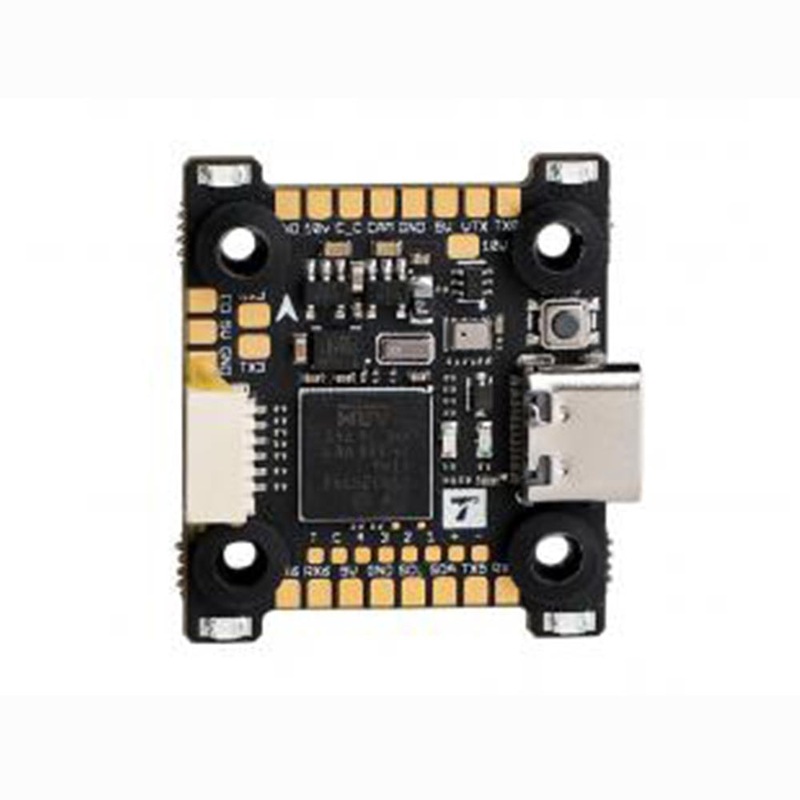

T-Motor H7 MINI BMI Flight Controller 20x20mm

The T-Motor H7 MINIBMI FC provides efficient power and control capabilities for your drone. It features a high-performance : BMI270gyroscope that provides excellent stability and smooth operation. The mini size makes it easy to install, while low ripple current ensures a reliable electrical connection. Enjoy responsive, dependable control with T-Motor’s H7 MINIBMI FC.

Check out the rest of our 20x20mm Flight Controllersand all ourT-Motor Products!

Specifications:

• MCUSTM32H743
• Gyro: : BMI270
• BarometerDPS310
• BEC: 5V/2A, 10V/1.5A
• Black box16MB
• Interface8
• Installation size: 20*20mm/4mm
• Size: 27*30.8mm
• Dual voltage BEC support both of HD&Analog;
• Gyroscope independent power supply to avoid interference from other electrical equipment;
• Recommendation: F60A MINI ESC/ MINI F45A ESC/MINI F66A ESC+F60PROV/F40 PROV…
• Suitable for 5″ fpv drone racing, 3.5″ cinematic, 5″ freestyle

Links:

• Wiring Diagram

Package Includes:

• 1 x T-Motor H7 MINIBMIFlight Controller 20x20mm
